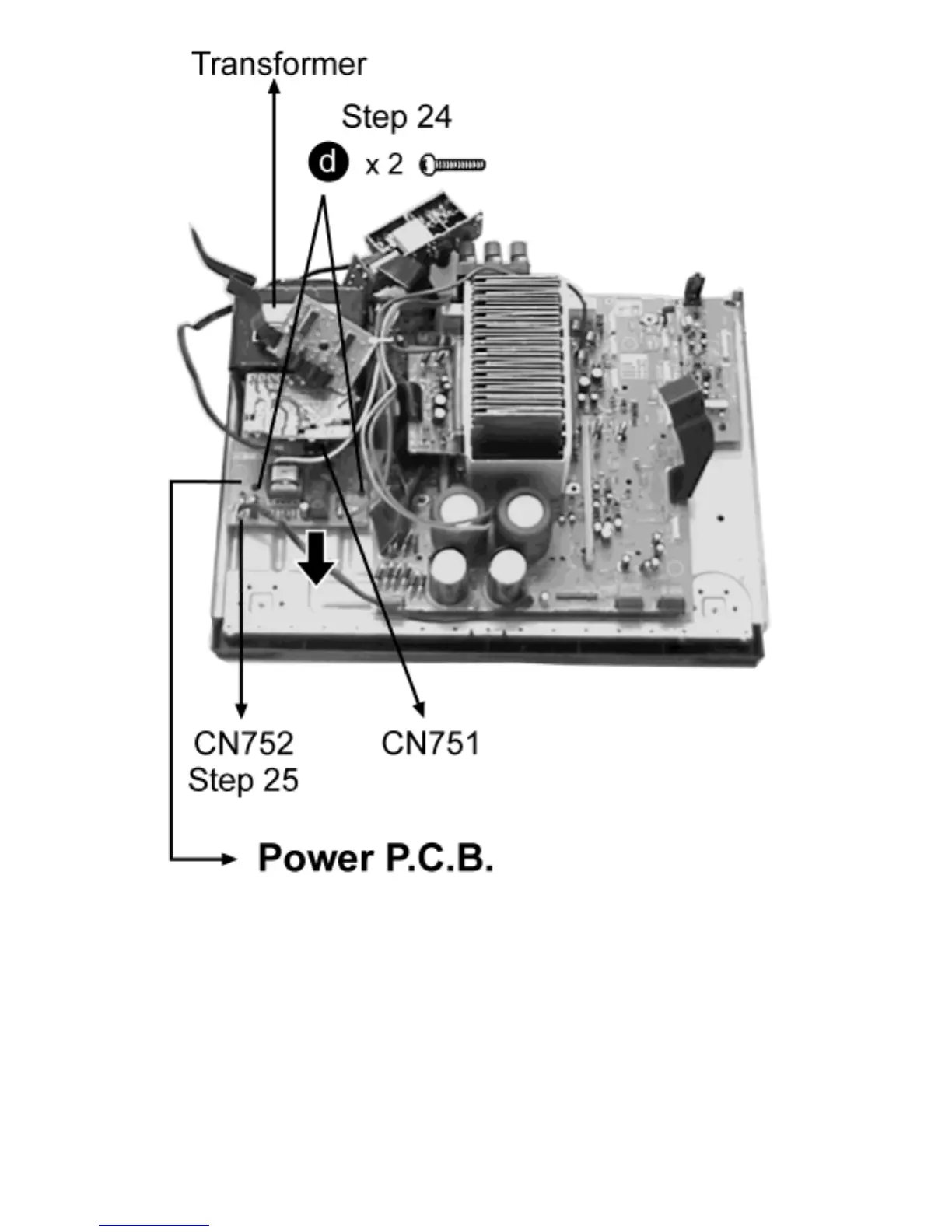

Step 24 Remove all the screws.
Step 25 Release the CN751 and CN752 from the Power P.C.B.. Pull out in the direction shown.
