Step 5 Follow step 5 of Checking Procedure for each major P.C.B. on pg 9 to remove the support bars.

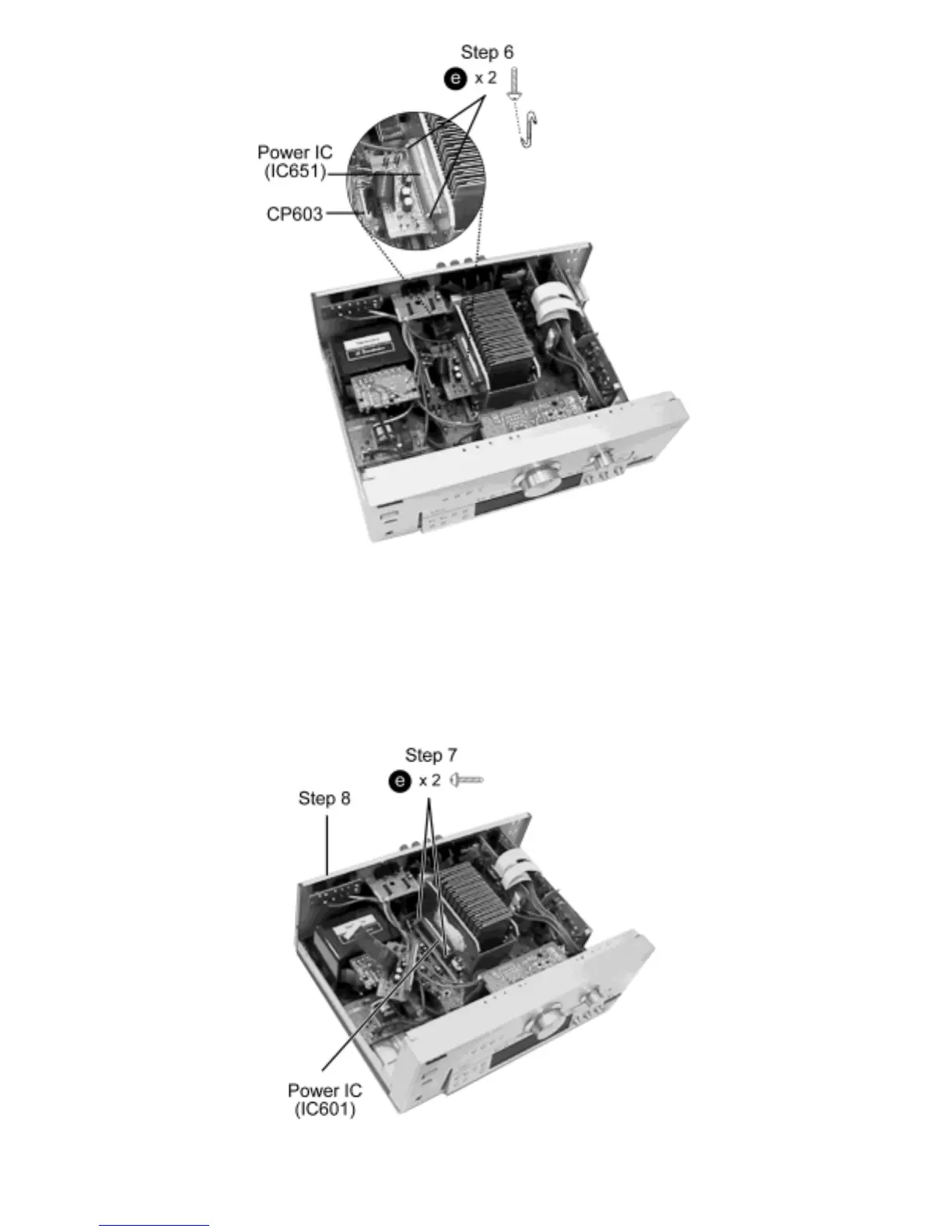

Step 6 Remove all the screws, disconnect the CP603 and remove IC651.
• The PROTO Offset Screwdriver No.34-1/4 is recommended for use in the application above.
Step 8 Remove all the screws at the rear panel and pull out Shield Plate, Surround P.C.B. and Input
