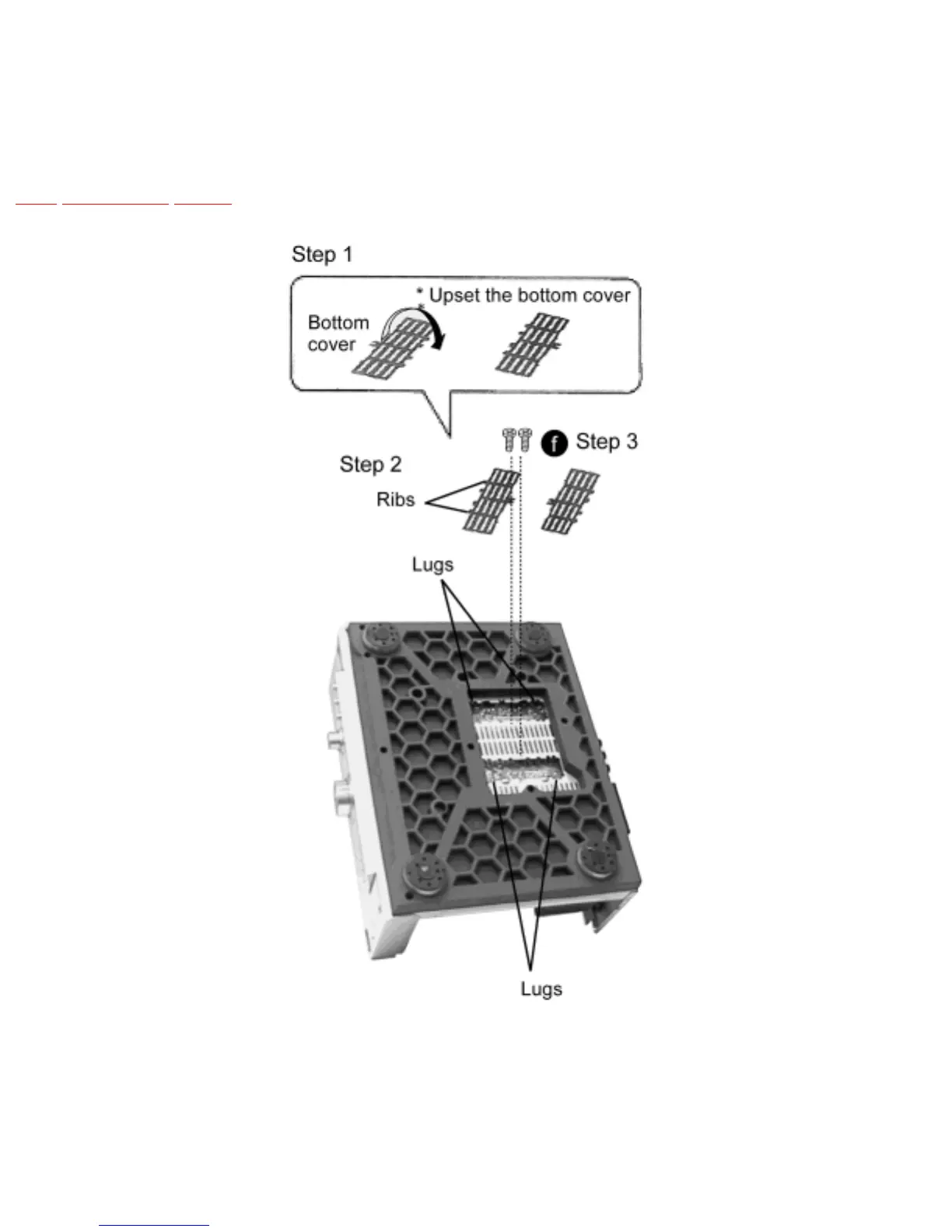

6.2.2 Installation of the bottom cover
after replacement
TOP PREVIOUS NEXT
Step 1 Upset the bottom cover.
Step 2 Align the ribs of bottom cover into the bugs.
Step 3 Prepare the screws to fix the bottom cover.
file:///C|/Documents%20and%20Settings/Administrateur/Mes%20documents/service/SA-DA10/p14.htm (1 of 2) [21/01/2007 13:47:12]
