This unit is equipped with a self-diagnostic function which, in the event of a malfunction,
automatically displays a code indicating the nature of the malfunction.
Use this self-diagnostic function when servicing the unit.
7.1. To display the malfunction code
U70 CD: / U70 DECK:
Automatically displays on the tuner/amplifier when a malfunction
occurs. Refer to Fig. 7-1.
F61:
Automatically displays on the tuner/amplifier when a malfunction
occurs. Refer to Fig. 7-1.

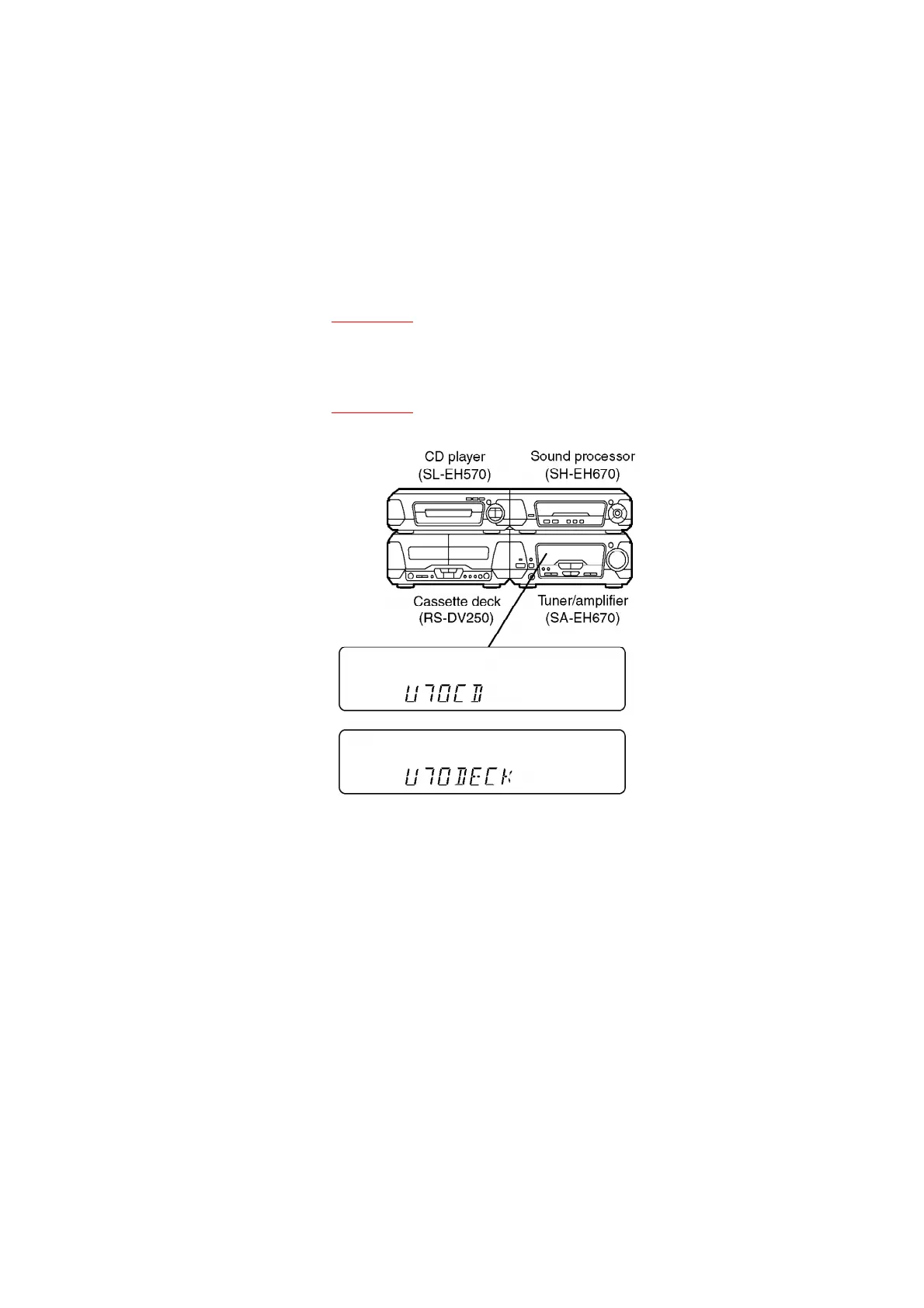

Fig. 7-1.
7.2. To return to the normal display
1. For U70 CD/U70 DECK
- Press an any operation button on the tuner/amplifier.
- To re-display the code, switch the power off (POWER
STANDBY button), and then switch power back on again.
2. For F61
- If F61 is displayed, the power will automatically be switched
off and the standby indicator will light up.
- F61 will be displayed for 3 seconds, and then the clock will be
displayed.
- To re-display the code, switch the power on. F61 will be re-
10
