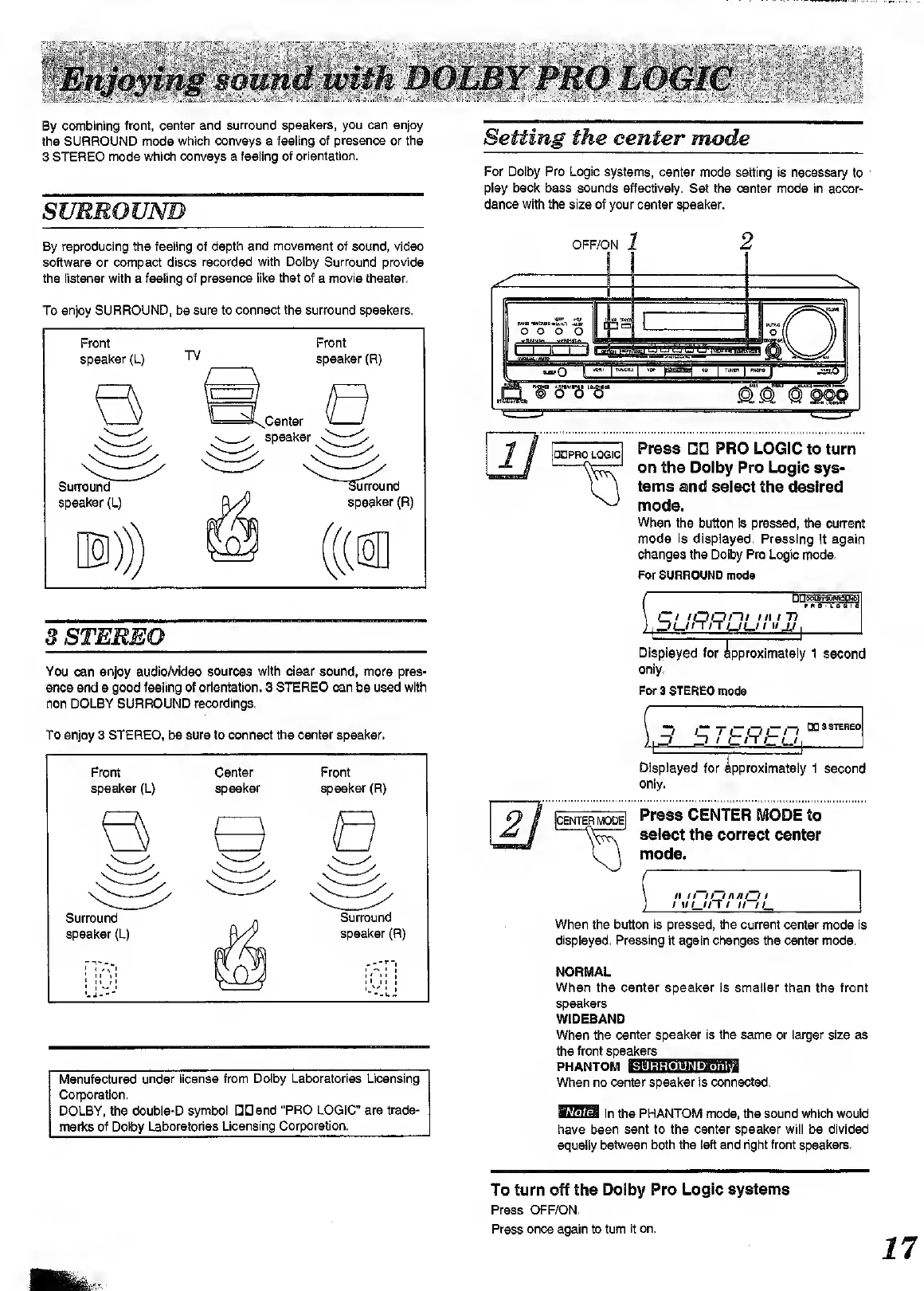

Technics SA-EX500 User Manual

By combining front, center and surround speakers, you can enjoy
the SURROUND mode which conveys a feeling of presence or the
3 STEREO mode which conveys a feeling of orientation.
By reproducing the feeling of depth and movement of sound, video
software or compact discs recorded with Dolby Surround provide
the listener with a feeling of presence like that of a movie theater.
To enjoy SURROUND, be sure to connect the surround speakers.
You can enjoy audio/video sources with dear sound, more pres¬
ence and a good feeling of orientation. 3 STEREO can be used with
non DOLBY SURROUND recordings.
To enjoy 3 STEREO, be sure to connect the center speaker.
Manufactured under license from Dolby Laboratories Licensing
Corporation.
DOLBY, the double-D symbol □□ and “PRO LOGIC" are trade¬
marks of Dolby Laboratories Licensing Corporation._
For Dolby Pro Logic systems, center mode setting is necessary to
play back bass sounds effectively. Set the center mode in accor¬
dance with the size of your center speaker.
Press □□ PRO LOGIC to turn
on the Dolby Pro Logic sys¬
tems and select the desired
mode.
When the button is pressed, the current
mode is displayed. Pressing it again
changes the Dolby Pro Logic mode.
For SURROUND mode
l~ I ll~n~li~li in / 77
ij u nrr u u / u j .i .
Displayed for Approximately 1 second
only.
For 3 STEREO mode
TOO O'- aa3STERE0
-/ -/ / t'-r'oL
Displayed for Approximately 1 second
only.
Icenter modeI P* 1 © 83 CENTER MODE to
select the correct center
mode.
nil iiinni ii
/ / II I I
When the button is pressed, the current center mode is
displayed. Pressing it again changes the center mode.
NORMAL
When the center speaker is smaller than the front
speakers
WIDEBAND
When the center speaker is the same or larger size as
the front spe akers
PHANTOM
When no center speaker is connected.
iIn the PHANTOM mode, the sound which would
have been sent to the center speaker will be divided
equally between both the left and right front speakers.
To turn off the Dolby Pro Logic systems
Press OFF/ON.
Press once again to turn it on.
