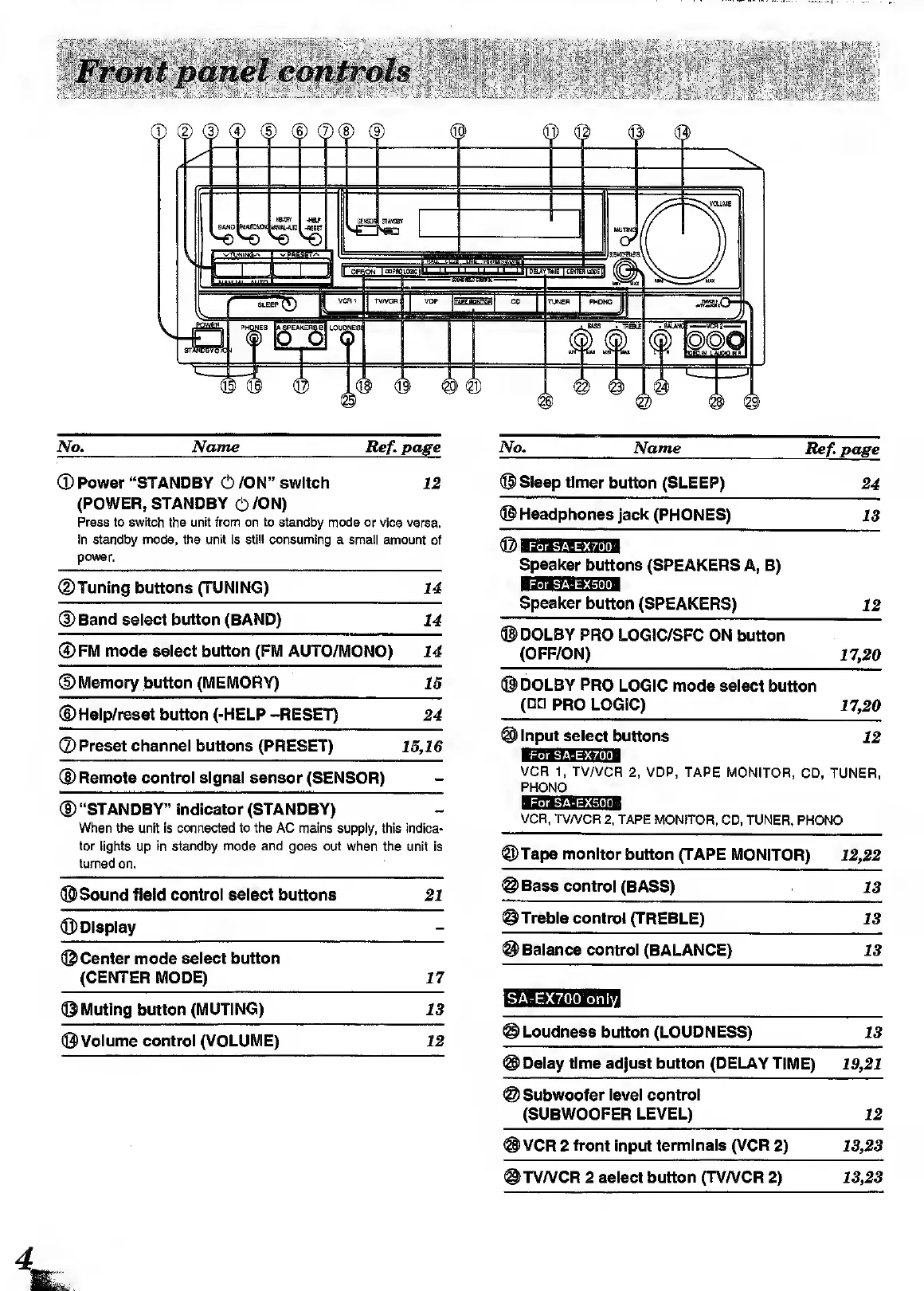

Technics SA-EX500 User Manual

© Power “STANDBY (!) /ON” switch 12
(POWER, STANDBY O/ON)
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
©Tuning buttons (TUNING) 14
©Band select button (BAND)
14
® FM mode select button (FM AUTO/MONO)
14
© Sleep timer button (SLEEP) 24
© Headphones jack (PHONES) 13
For SA-EX700
Speaker buttons (SPEAKERS A, B)
For SA-EX5Q0
Speaker button (SPEAKERS) 12
©DOLBY PRO LOGIC/SFC ON button
(OFF/ON) 17,20
©Memory button (MEMORY)
15
©Help/reset button (-HELP -RESET)
24
©Preset channel buttons (PRESET)
15,16
©Remote control signal sensor (SENSOR)
-
© “STANDBY” indicator (STANDBY)
When the unit is connected to the AC mains supply, this indica¬
tor lights up in standby mode and goes out when the unit is
turned on.
©Sound field control select buttons 21
©Display
-
©Center mode select button
(CENTER MODE) 17
©Muting button (MUTING) 13
©Volume control (VOLUME)
12
©DOLBY PRO LOGIC mode select button
( □□ PRO LOGIC) 17,20
© Input select buttons 12
KSB
VCR 1, TV/VCR 2, VDP, TAPE MONITOR, CD, TUNER,
PHONO
| For SA-EX500
VCR, TV/VCR 2, TAPE MONITOR, CD, TUNER, PHONO
©Tape monitor button (TAPE MONITOR)
12,22
© Bass control (BASS)
13
©Treble control (TREBLE) 13
© Balance control (BALANCE) 13
©Loudness button (LOUDNESS)
13
© Delay time adjust button (DELAY TIME)
19,21
© Subwoofer level control
(SUBWOOFER LEVEL) 12
©VCR 2 front input terminals (VCR 2) 13,23
©TV/VCR 2 select button (TV/VCR 2) 13,23
