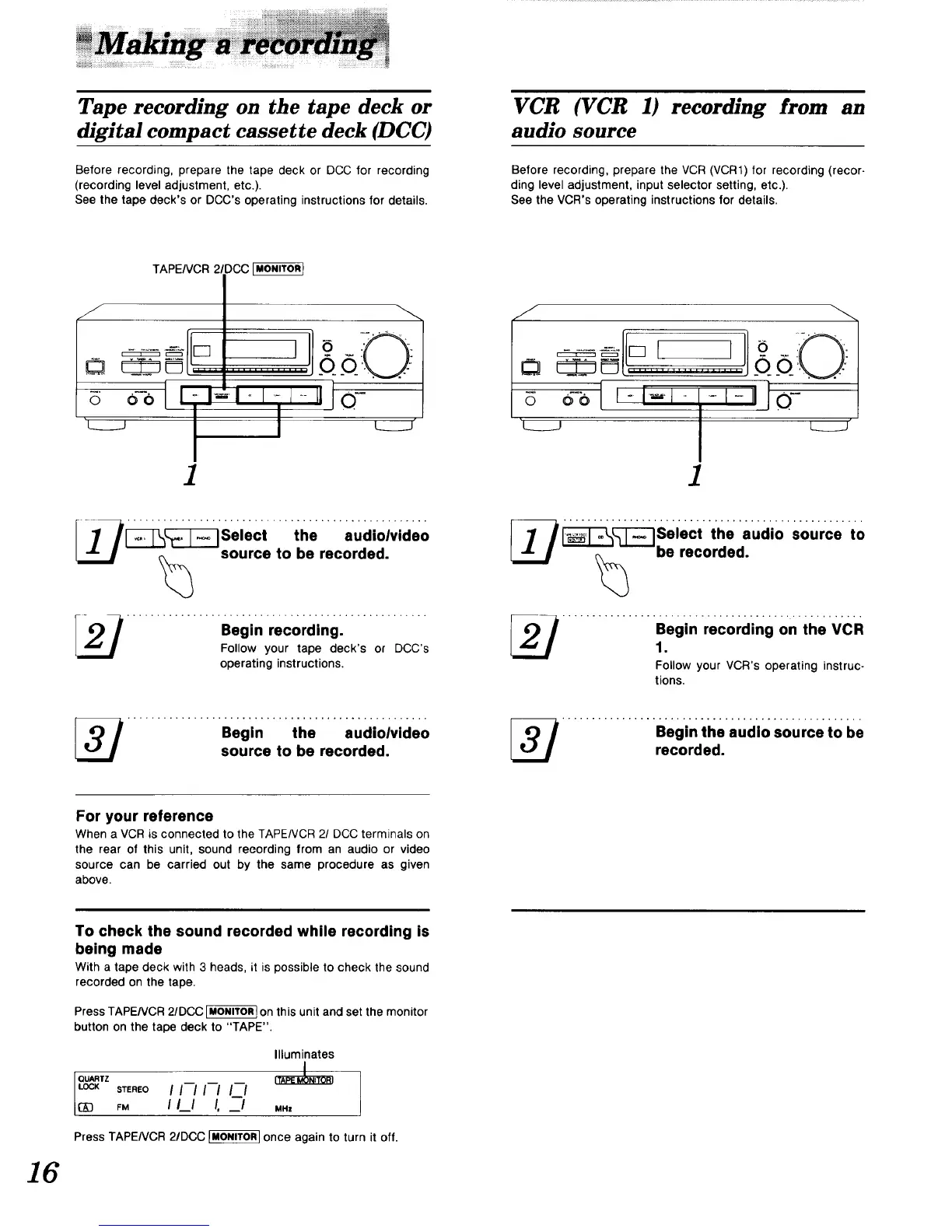

Technics SA-GX190 Operating Instructions

Tape recording on the tape deck or
digital compact cassette deck (DCC)
Before recording, prepare the tape deck or DCC for recording
(recording level adjustment, etc.).
See the tape deck's or DCC's operating instructions for details.
VCR. (VCR 1) recording from an
audio source
Before recording, prepare the VCR (VCR1) for recording (recor-
ding level adjustment, input selector setting, etc.).
See the VCR's operating instructions for details.
TAPENCR 21DCC
J
_; (5-o [_[-I_ I _ I-l II
1
I°0
O.-
L_____J
'L.____J L_____J"
1
]___S...€, .....ih;....,U;_.oivid;0
source to be recorded.
_' ................ Begin recordingl ..............
Follow your tape deck's or DCC's
operating instructions.
S;;,ectt"e;..d,oSo"roeio
be recorded.
................ Begin recoiding on the VCR
1.
Follow your VCR's operating instruc-
tions.
Begin the audiolvideo
source to be recorded.
................aeoin;he"udiosouicetobe
recorded.
For your reference
When a VCR is connected to the TAPE/VCR 2/DCC terminals on
the rear of this unit, sound recording from an audio or video
source can be carried out by the same procedure as given
above.
16
To check the sound recorded while recording is
being made
With a tape deck with 3 heads, it is possible to check the sound
recorded on the tape.
Press TAPENCR 2/DCC _ on this unit and set the monitor
button on the tape deck to "TAPE".
QUARTZ
LOCK S_E_eO II II I /__1
(_ FM I/._1 _ __1 MH,
Illuminates
Press TAPENCR 2/DCC _ once again to turn it off.

Technics SA-GX190 Specifications

FM Tuner Section

frequency range	87.9-107.9 MHz
sensitivity	11.2 dBf (2 HV, IHF '58)
mono sensitivity	18.3 dBf (4.5 HV, IHF '58)

Amplifier Section

RMS power output	100 W per channel (8 Q)
total harmonic distortion stereo	0.8%
dynamic headroom	2 dB (8 Q)

General

power consumption	160 W
power supply	AC 120V, 60Hz
dimensions	430 x 136 x 305 mm
