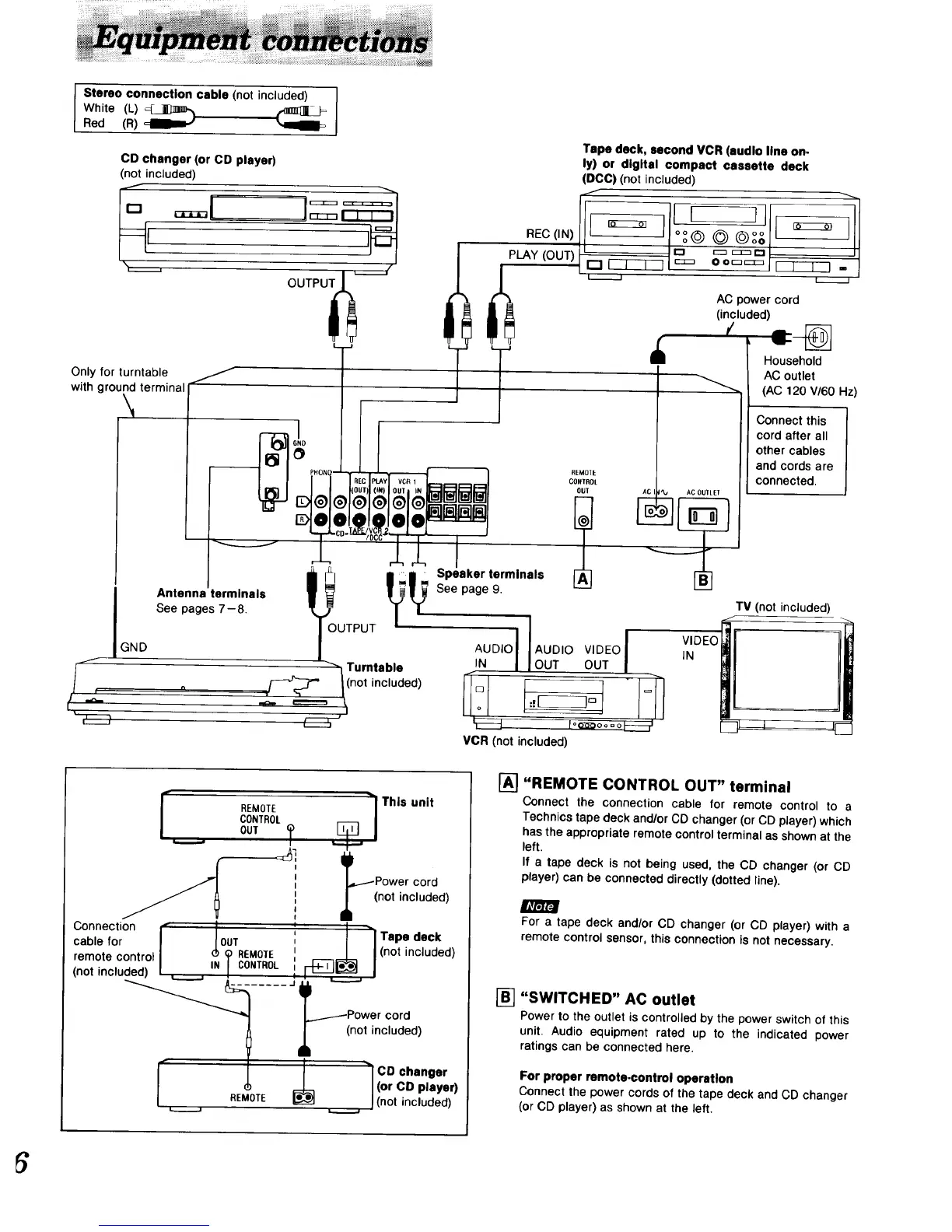

Technics SA-GX190 Operating Instructions

I Stereo connection cable (not included) I
White (L)_ IC_
Red (R)
CD changer (or CD player)
(not included)
Only for turntable
with ground terminal
\
OUTPUT
REC (IN)
Tape deck, second VCR (audio line on-
ly) or digital compact cassette deck
(DCC) (not included)
i i I t
AC power cord
(included)
I Antenna terminals i_ _b
See pages 7-8. YOUTPUT / /
/
GND /
/""- "_L Turntable
/ , . /-_--_ [(not included)
r _ _
Speaker terminals
See page 9.
REMOTE
CONTROL
OU] A_, I"v At.. OtJlL[]
ANUDIOI IAUDIO VIDEO
OUT OUT
I VIDEO
IN
I°_°°"°_" I
VCR (not included)
Household
AC outlet
(AC 120 V/60 Hz)
Connect this
cord after all
other cables
and cords are
connected.
TV (not included)
J
Connection
cable for
remote control
(not included)
I i This unit
REMOTE
CONTROL
cord
(not included)
I CD changer
(or CD player)
(not included)
[]
"REMOTE CONTROL OUT" terminal
Connect the connection cable for remote control to a
Technics tape deck andlor CD changer (or CD player) which
has the appropriate remote control terminal as shown at the
left.
If a tape deck is not being used, the CD changer (or CD
player) can be connected directly (dotted line).
For a tape deck and/or CD changer (or CD player) with a
remote control sensor, this connection is not necessary.
_-_ "SWITCHED" AC outlet
Power to the outlet is controlled by the power switch of this
unit Audio equipment rated up to the indicated power
ratings can be connected here.
For proper remote.control operation
Connect the power cords of the tape deck and CD changer
(or CD player) as shown at the left.

Technics SA-GX190 Specifications

FM Tuner Section

frequency range	87.9-107.9 MHz
sensitivity	11.2 dBf (2 HV, IHF '58)
mono sensitivity	18.3 dBf (4.5 HV, IHF '58)

Amplifier Section

RMS power output	100 W per channel (8 Q)
total harmonic distortion stereo	0.8%
dynamic headroom	2 dB (8 Q)

General

power consumption	160 W
power supply	AC 120V, 60Hz
dimensions	430 x 136 x 305 mm
