Technics SE-CH530 Service Manual

SE-CH530 |

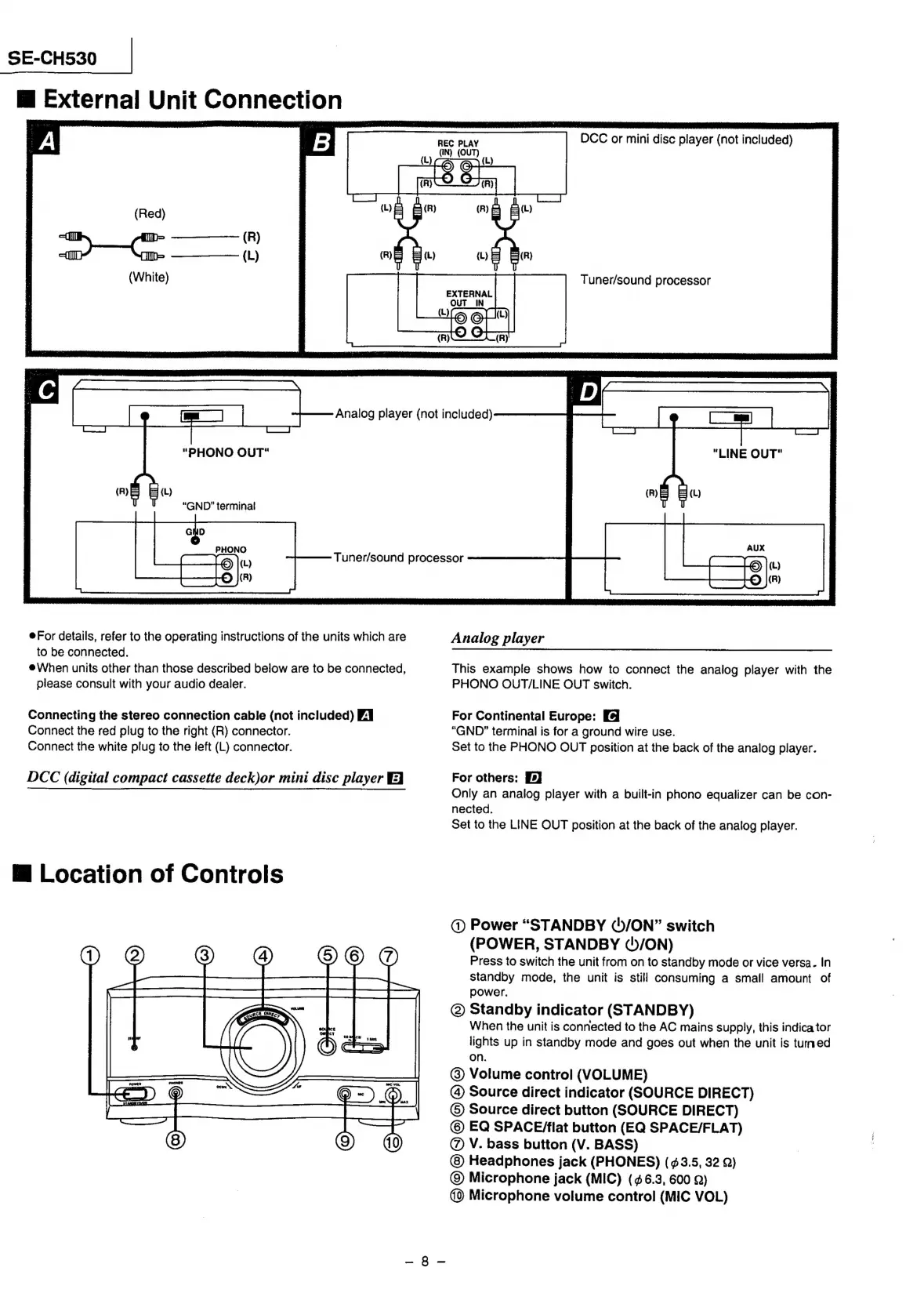

M@ External Unit Connection
A B ee alan DCC or mini disc player (not included)
: L) (IN) (OUT) (L)
Analog player (not included)
"PHONO OUT"
“GND" terminal
Tuner/sound processor
®For details, refer to the operating instructions of the units which are
to be connected.
@When units other than those described below are to be connected,
please consult with your audio dealer.
Connecting the stereo connection cable (not included) EJ
Connect the red plug to the right (R) connector.
Connect the white plug to the left (L) connector.
DCC (digital compact cassette deck)or mini disc player E}
@ Location of Controls
Tuner/sound processor
Analog player
This example shows how to connect the analog player with the
PHONO OUT/LINE OUT switch.
For Continental Europe:
“GND” terminal is for a ground wire use.
Set to the PHONO OUT position at the back of the analog player.
For others: [Bb]
Only an analog player with a built-in phono equalizer can be con-
nected,
Set to the LINE OUT position at the back of the analog player.
@ Power “STANDBY (5/ON” switch
(POWER, STANDBY ()/ON)
Press to switch the unit from on to standby mode or vice versa. In
standby mode, the unit is still consuming a small amount of
power.
@ Standby indicator (STANDBY)
When the unit is connected to the AC mains supply, this indica tor
lights up in standby mode and goes out when the unit is tuned
on.
@ Volume control (VOLUME)
(4) Source direct indicator (SOURCE DIRECT)
©) Source direct button (SOURCE DIRECT)
© EQ SPACE/Sflat button (EQ SPACE/FLAT)
@ V. bass button (V. BASS)
Headphones jack (PHONES) (¢3.5, 32 Q)
@ Microphone jack (MIC) (46.3, 600 Q)
Microphone volume control (MIC VOL)
