8. Self Check Function
This unit is equipped with a self check function which can detect a part of
malfunction. Use this function before servicing the unit and check the item as shown
below.
8.1. Setting to the Self Check Function
1. Turn the power on.
2. Press and hold the STOP button for at least 2 seconds, and while still pressing the
STOP button, press the REV. SEARCH button for at least 2 seconds. Then the unit
enters Self Check Function. (Refer to
Fig.3.)

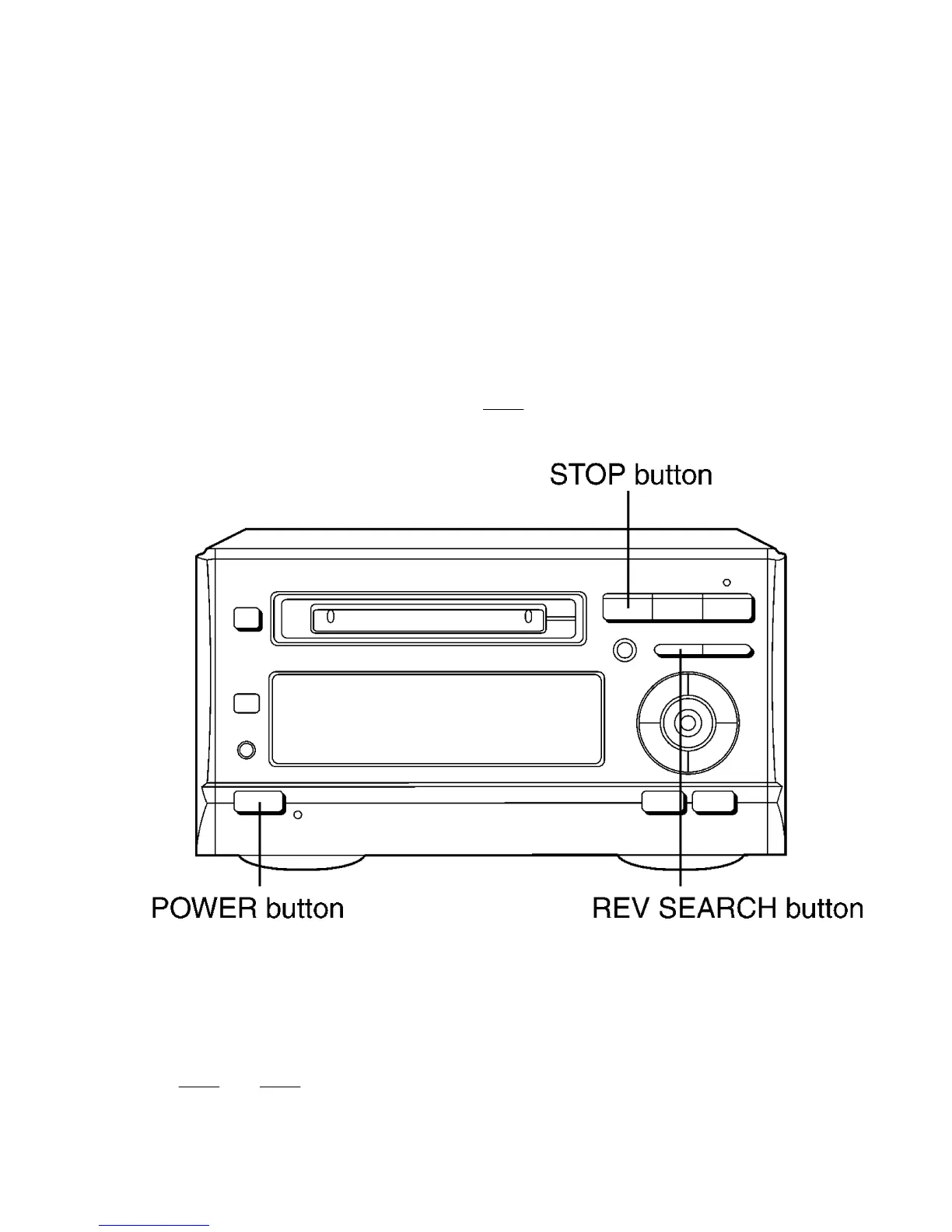

Fig.3
8.2. Checking the operation switches
1. When the unit enters the Self Check Function, the FL display turn off.
2. Press the buttons on the unit except the INPUT SELECTOR button, it displays “-”
mark adapted each buttons.
(
Fig.4 and Fig.5 is shown about a allotment.)
17
