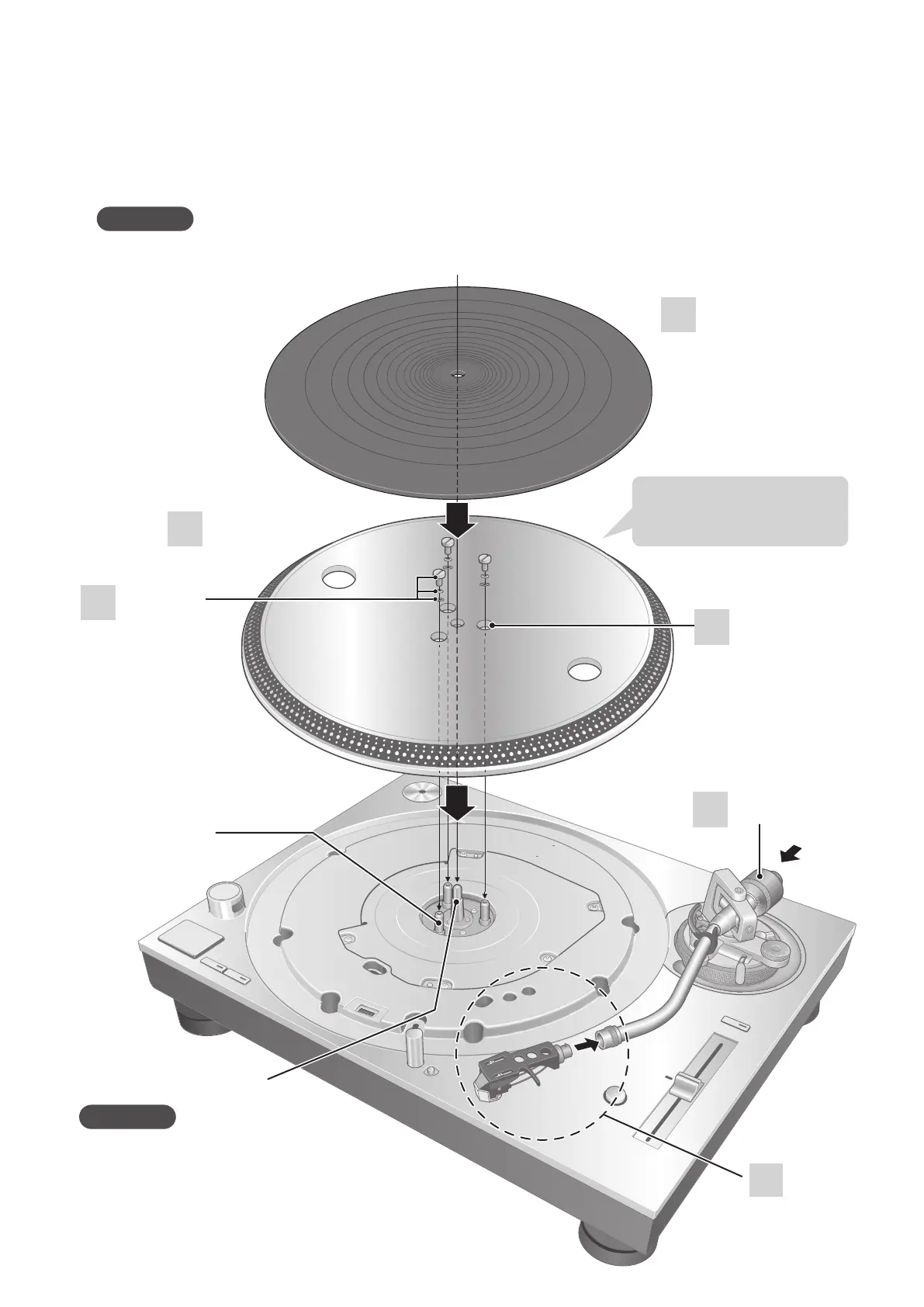

Putting the player together
(continued)
In order to prevent damage during shipping, some of the equipment has been disassembled.
Put the player together in the following order.
Do not connect the AC mains lead until set up is complete.
Turntable mat
Turntable
Centre spindle
Rotor shaft
Balance weight
Head shell
Attention
Handle carefully as
this is heavy.
6
4
1
3
Mounting
screw for
turntable
Belleville
spring
Washers
Rotor shaft fix
hole
2
5
12
Attention
Do not use an electric screwdriver or
impact wrench to tighten screws.
Note that using a screwdriver not fitting to
the screws for mounting the turntable may
damage the main unit.
