Technics SL-5200ES

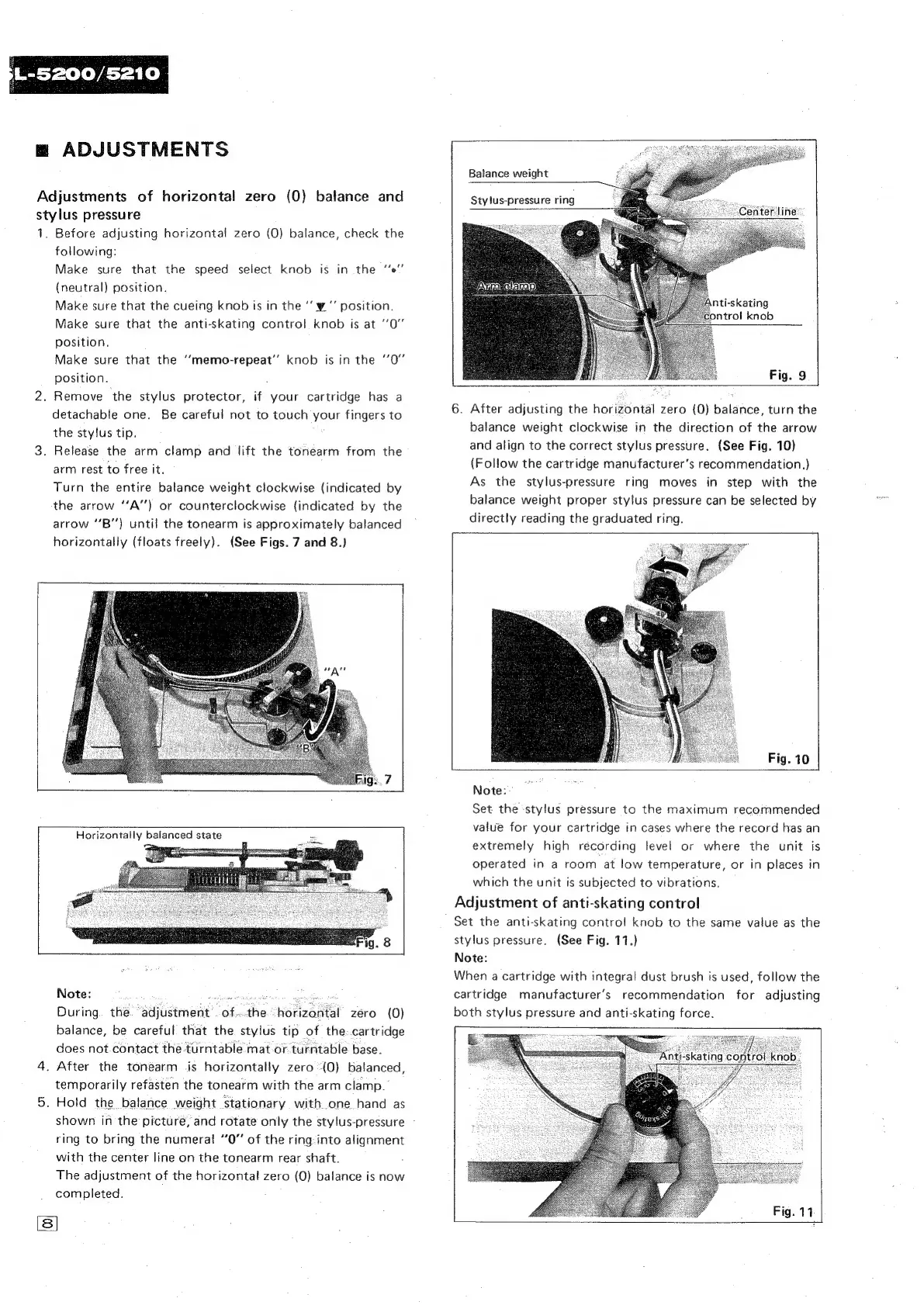

mw ADJUSTMENTS
Balance weight
Adjustments of horizontal zero (0) balance and
stylus pressure
1. Before adjusting horizontal zero (0) balance, check the
following:
Make sure that the speed select knob is in the ‘‘e’’
(neutral) position.
Make sure that the cueing knob is in the ‘’ ¥"”’ position.
Make sure that the anti-skating control knob is at ‘’0"
position.
Make sure that the ‘‘memo-repeat’’ knob is in the ‘’0
position. :
2. Remove the stylus protector, if your cartridge has a
detachable one. Be careful not to touch your fingers to
the stylus tip. ;
3. Release the arm clamp and lift the tonearm from the
arm rest to free it.
Sty!us-pressure ring
Centerline
Anti-skating
Sontrol knob
aa
Fig. 9
6. After adjusting the horizontal zero (0) balance, turn the
balance weight clockwise in the direction of the arrow
and align to the correct stylus pressure. (See Fig. 10)
(Follow the cartridge manufacturer’s recommendation.)
As the stylus-pressure ring moves in step with the
balance weight proper stylus pressure can be selected by
directly reading the graduated ring.
Turn the entire balance weight clockwise (indicated by
the arrow ‘‘A”) or counterclockwise {indicated by the
arrow “B”) until the tonearm is approximately balanced
horizontally (floats freely). (See Figs. 7 and 8.)
Fig. 10
Note:
Set the ‘stylus pressure to the maximum recommended
value for your cartridge in cases where the record has an
extremely high recording level or where the unit is
operated in a room at low temperature, or in places in
which the unit is subjected to vibrations.
Adjustment of anti-skating control
Set the anti-skating control knob to the same value as the
stylus pressure. (See Fig. 11.)
Horizontally balanced state
Note:
When a cartridge with integral dust brush is used, follow the
Note: “est Pastes ie iene cartridge manufacturer’s recommendation for adjusting
During. the “adjustment: of....the “horizontal zero (0) both stylus pressure and anti-skating force.
balance, be careful that the stylus tip of the-.cartridge
does not.contact the-turntable mat-or turntable base.
4. After the tonearm .is horizontally zero (0) balanced,
temporarily refasten the tonearm with the arm clamp.”
5. Hold the balance weight stationary with..one hand as
shown in the picture, and rotate only the stylus-pressure -
ring to bring the numeral 0” of the ring:into alignment
with the center line on the tonearm rear shaft.
The adjustment of the horizontal zero (0) balance is now
_ completed. , : oe
os
:
:
-
:
Fig.
11
vraerenn
=
i
