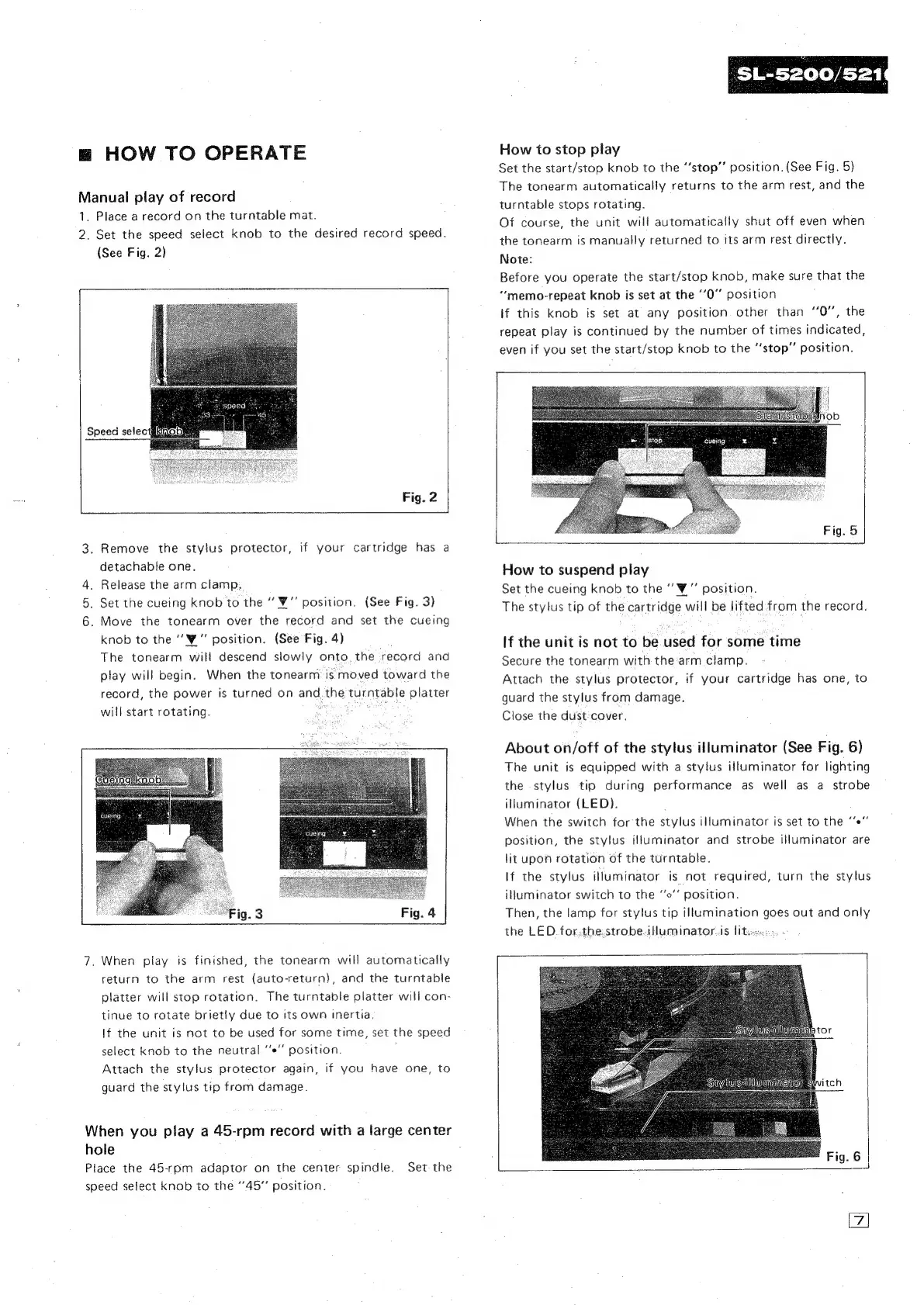

m= HOW TO OPERATE
Manual play of record
1. Place a record on the turntable mat.
2. Set the speed select knob to the desired record speed.
(See Fig. 2)
Speed selectakin
Fig. 2
3. Remove the stylus protector, if your cartridge has a
detachable one.
4. Release the arm clamp.
. Set the cueing knob to the “’¥”’ position. (See Fig. 3)
6. Move the tonearm over the record and set the cueing
knob to the “W" position. (See Fig. 4)
The tonearm will descend slowly onto. the record and
play will begin. When the tonearm is moved toward the
record, the power is turned on and. the turntable platter
will start rotating. a
or
cueing. yee
=ig. 3 Fig. 4
7. When play is finished, the tonearm will automatically
return to the arm rest (auto-return), and the turntable
platter will stop rotation. The turntable platter will con-
tinue to rotate brietly due to its own Inertia,
If the unit is not to be used for some time, set the speed
select knob to the neutral “e” position.
Attach the stylus protector again, if you have one, to
guard the stylus tip from damage.
When you play a 45-rpm record with a large center
hole
Place the 45-rom adaptor on the center spindle. Set-the
speed select knob to the “45” position.
How to stop play
Set the start/stop knob to the ‘’stop” position. (See Fig. 5)
The tonearm automatically returns to the arm rest, and the
turntable stops rotating.
Of course, the unit will automatically shut off even when
the tonearm is manually returned to its arm rest directly.
Note:
Before you operate the start/stop knob, make sure that the
“‘memo-repeat knob is set at the ‘‘0” position
if this knob is set at any position. other than “0”, the
repeat play is continued by the number of times indicated,
even if you set the start/stop knob to the “‘stop”’ position.
How to suspend play
Set the cueing knob to the ’¥.” position.
The stylus tip of the cartridge will be lifted from the record.
If the unit is not to be used for some time
Secure the tonearm with the arm clamp.
Attach the stylus protector, if your cartridge has one, to
guard the stylus from damage.
Close the dust-cover.
About on/off of the stylus illuminator (See Fig. 6)
The unit is equipped with a stylus ifluminator for lighting
the stylus tip during performance as well as a strobe
illuminator (LED).
When the switch for the stylus illuminator is set to the ‘‘e”’
position, the stylus illuminator and strobe illuminator are
lit upon rotation of the turntable.
If the stylus illuminator is not required, turn the stylus
iNuminator switch to the ‘‘o”’ position.
Then, the lamp for stylus tip illumination goes out and only
the LED.for,the.strobe.iJluminator.is lt.
tor
Fig. 6
