Technics SL-5200ES

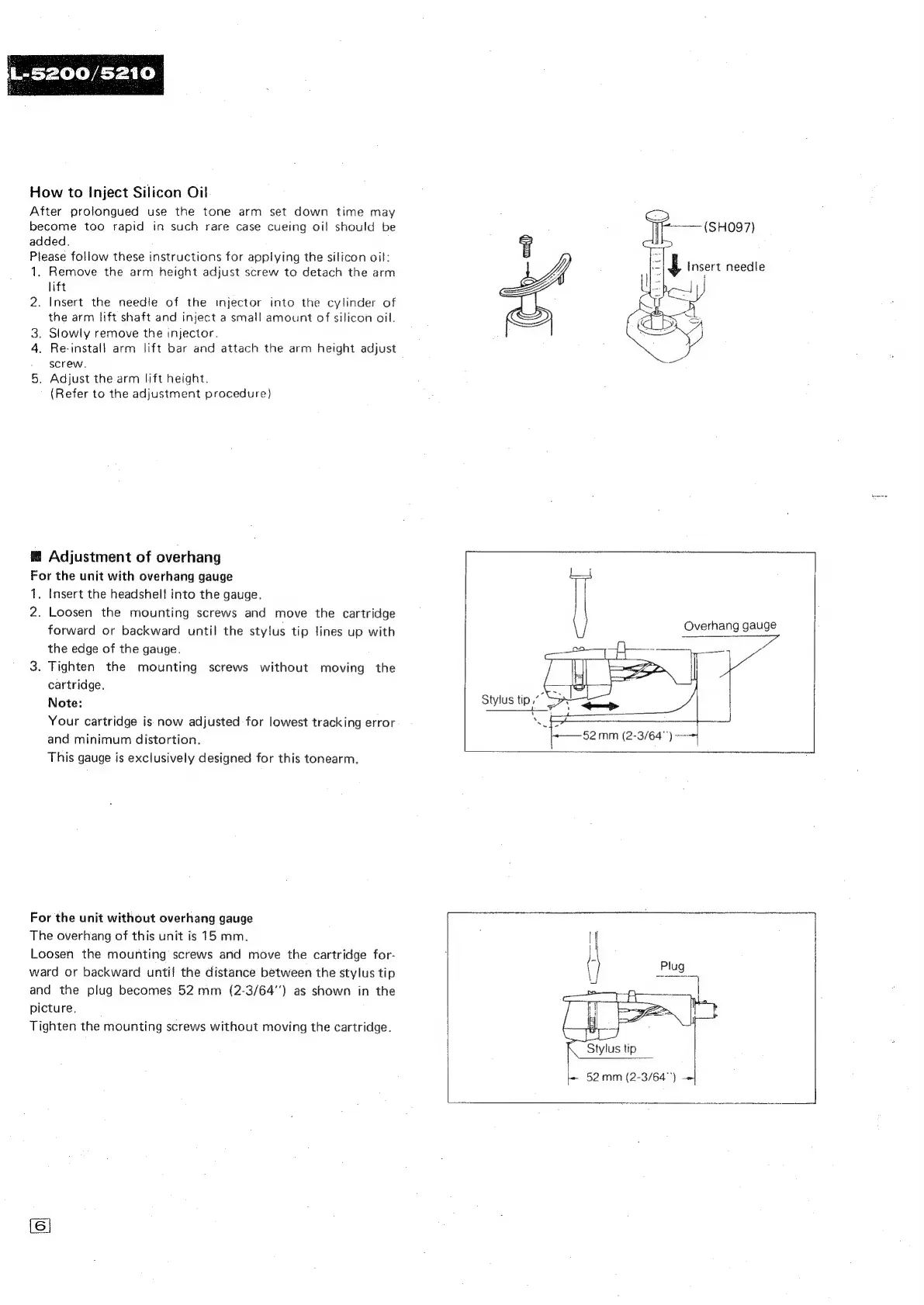

How to Inject Silicon Oil
After prolongued use the tone arm set down time may
become too rapid in such rare case cueing oil should be
added.
Please follow these instructions for applying the silicon oil:
1. Remove the arm height adjust screw to detach the arm
lift
2. Insert the needle of the injector into the cylinder of
the arm lift shaft and inject a small amount of silicon oil.
3. Slowly remove the injector.
4. Re-install arm lift bar and attach the arm height adjust
screw.
5. Adjust the arm lift height.
(Refer to the adjustment procedure)
f@ Adjustment of overhang
For the unit with overhang gauge
1. Insert the headshell into the gauge.
2. Loosen the mounting screws and move the cartridge
forward or backward until the stylus tip lines up with
the edge of the gauge.
3. Tighten the mounting screws without moving the
cartridge.
Note:
Your cartridge is now adjusted for lowest tracking error
and minimum distortion.
This gauge is exclusively designed for this tonearm.
For the unit without overhang gauge
The overhang of this unit is 15 mm.
Loosen the mounting screws and move the cartridge for-
ward or backward untif the distance between the stylus tip
and the plug becomes 52 mm (2-3/64’') as shown in the
picture,
Tighten the mounting screws without moving the cartridge.
(SHO097)
Zoed):
i 4 Insert needle
7” '
j Overhang gauge
eae
-——52 mm (2-3/64"") -—~
Stylus tip”
oH
Stylus tip
1+ 52mm (2-3/64") |
