Technics SL-D202 User Manual

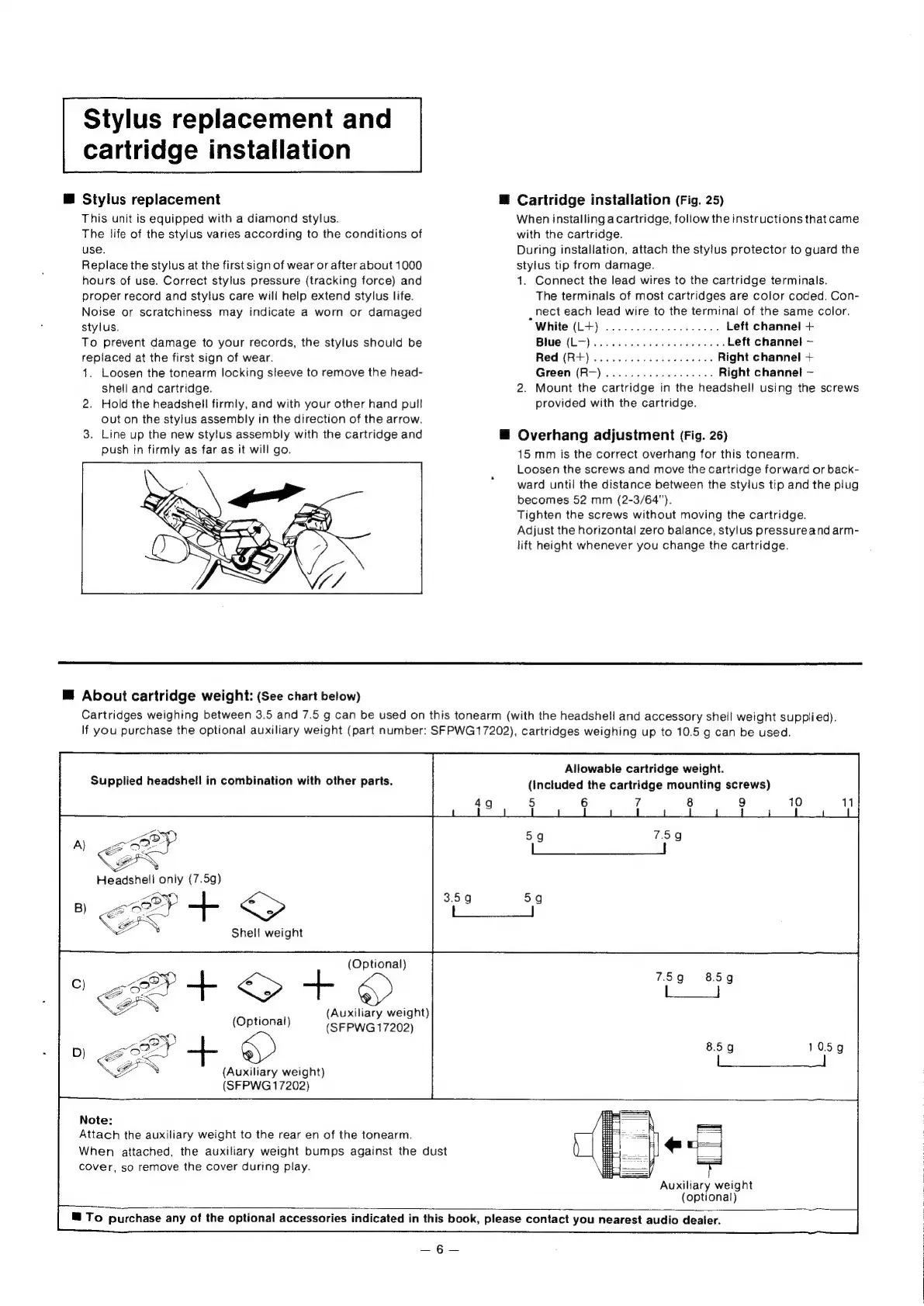

Stylus replacement and
cartridge installation
Stylus replacement
This unit is equipped with a diamond stylus.
The life of the stylus varies according to the conditions of
use.
Replace the stylus at the first sign of wear or after about 1000
hours of use. Correct stylus pressure (tracking force) and
proper record and stylus care will help extend stylus life.
Noise or scratchiness may indicate a worn or damaged
stylus.
To prevent damage to your records, the stylus should be
replaced at the first sign of wear.
1. Loosen the tonearm locking sleeve to remove the head-
shell and cartridge.
2. Hold the headshell firmly, and with your other hand pull
out on the stylus assembly in the direction of the arrow.
3. Line up the new stylus assembly with the cartridge and
push in firmly as far as it will go.
@ About cartridge weight: (See chart below)
® Cartridge installation (Fig. 25)
When installing a cartridge, follow the instructions that came
with the cartridge.
During installation, attach the stylus protector to guard the
stylus tip from damage.
1. Connect the lead wires to the cartridge terminals.
The terminals of most cartridges are color coded. Con-
nect each lead wire to the terminal of the same color.
“White (L+) oo.0....cccee eee Left channel +
Blues (C=) iniis, Gaia scion autie Left channel ~—
Red (AA) wise dy nine ett cds Right channel +
Green (R—-) ...... ee eee eee eee Right channel —
2. Mount the cartridge in the headshell using the screws
provided with the cartridge.
Overhang adjustment (Fig. 26)
15 mm is the correct overhang for this tonearm.
Loosen the screws and move the cartridge forward or back-
ward until the distance between the stylus tip and the plug
becomes 52 mm (2-3/64”").
Tighten the screws without moving the cartridge.
Adjust the horizontal zero balance, stylus pressureand arm-
lift height whenever you change the cartridge.
Cartridges weighing between 3.5 and 7.5 g can be used on this tonearm (with the headshell and accessory shell weight suppiied).
If you purchase the optional auxiliary weight (part number: SFPWG17202), cartridges weighing up to 10.5 g can be used.
Supplied headshell in combination with other parts.
Headshell only (7.59)
ets
Shell weight
tot
(Auxiliary
weight)
(Optional)
(SEPWG17202)
oy
(Auxiliary weight)
(SFPWG17202)
(Optional)
SAN
Attach the auxiliary weight to the rear en of the tonearm.
When attached, the auxiliary weight bumps against the dust
cover, so remove the cover during play.
Allowable cartridge weight.
(Included the cartridge mounting screws)
6 7 8 9
Auxiliary weight
(optional)
@
To
purchase
any
of
the
optional
accessories
indicated
in
this
book,
please
contact
you
nearest
audio
dealer.

Technics SL-D202 Specifications

General

Drive System	Direct Drive
Turntable Speeds	33 1/3 and 45 rpm
Wow and Flutter	0.025% WRMS
Signal to Noise Ratio	75 dB
Motor	Brushless DC motor
Effective Length	230 mm
Overhang	15 mm
Cartridge	Not specified (typically sold without cartridge)
Rumble	-75dB (IEC 98A weighted)
