SL-HD301
/
SL-HD501
7
Mesurements
and
Adjustments
Cautions:
eft
is
very
dangerous
to
look
at
or
touch
the
laser
beam.
(Laser
radiation
is
invisible.)
With
the
unit
turned
"ON"
,
laser
radiation
is
emitted
from
the
pickup
lens.
e
Avoid
exposure
to
the
laser
beam,
especially
when
performing
adjustments.
This
unit
SL-HD301/501
is
designed
to
operate
on
power
supplied
from
the
Amplifier
SE-HD301/501
through
the
Tuner
ST-HD301/501.When
connecting
the
unit
to
other
system
components,
do
not
connect
to
the
Amplifier
SE-
HD301/501
directly.
Be
sure
to
connect
this
unit
through
the
Tuner
ST-HD301/501.When
operating
the
unit
SL-
HD301/501
alone
for
testing
and
servicing,
without
having
i
(A.GND)
JK401-
18PIN
[LINE
OUT(Lch)]
(Signal
check)
MAIN
P.C.B.
(FOIL SIDE)
JK401-
17PIN
JK401-
16PIN
[LINE
OUT(Rch)]
(Signal
check)
power
supplied
from
the
Amplifier
SE-HD301/501,
use
the
following
method.

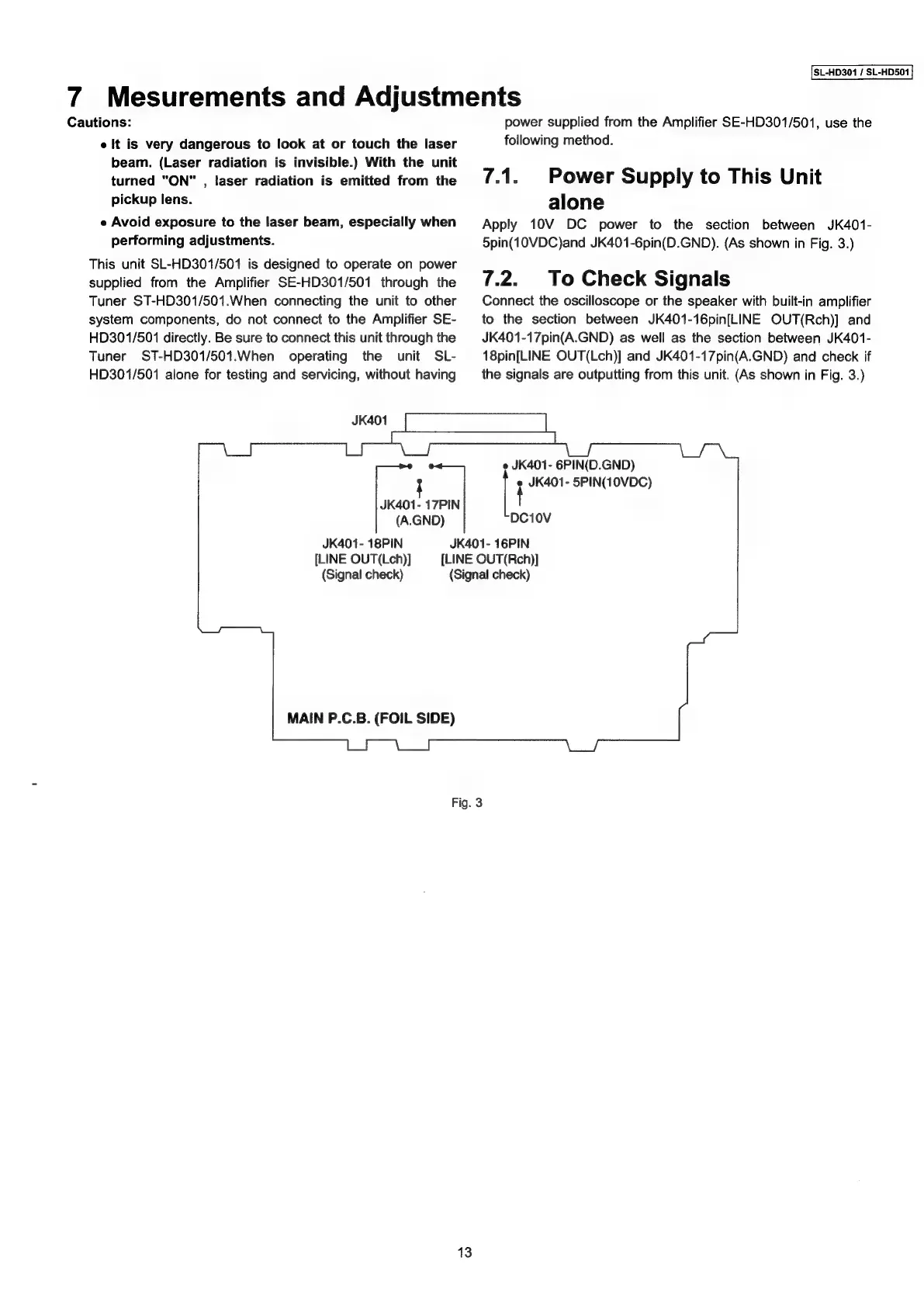

7.1.
Power
Supply
to
This
Unit
alone
Apply
10V
DC
power
to
the
section
between
JK401-
5pin(10VDC)and
JK401-6pin(D.GND).
(As
shown
in
Fig.
3.)
7.2.
To
Check
Signals
Connect
the
oscilloscope
or
the
speaker
with
built-in
amplifier
to
the
section
between
JK401-16pin[LINE
OUT(Rch)]
and
JK401-17pin(A.GND)
as
well
as
the
section
between
JK401-
18pin[LINE
OUT(Lch)]
and
JK401-17pin(A.GND)
and
check
if
the
signals
are
outputting
from
this
unit.
(As
shown
in
Fig.
3.)
«
JK401-
6PIN(D.GND)
JK401-
5PIN(10VDC)
(ei
Fig.
3
13
