Technics SL-HD301 Service Manual

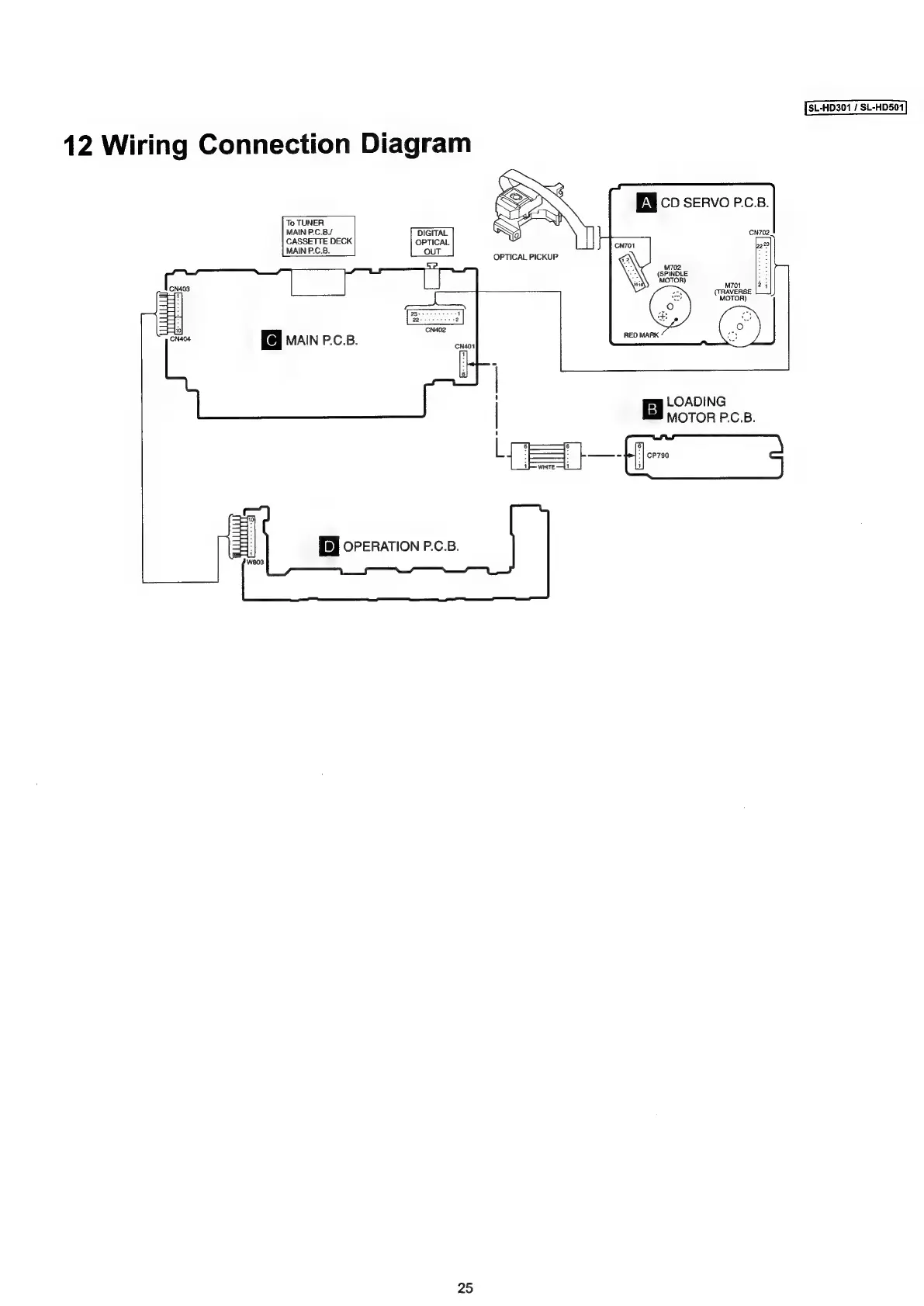

12 Wiring Connection Diagram
To TUNER
MAIN P.C.B/ DIGITAL
CASSETTE DECK OPTICAL
MAIN P.C.B. OUT
OPTICAL PICKUP
RED ©
LOADING
MOTOR P.C.B.
i
f
L E Fy = 4 eons
WHITE
[By OPERATION P.C.B.
Wi 8
25
