Technics SL-HD301 Service Manual

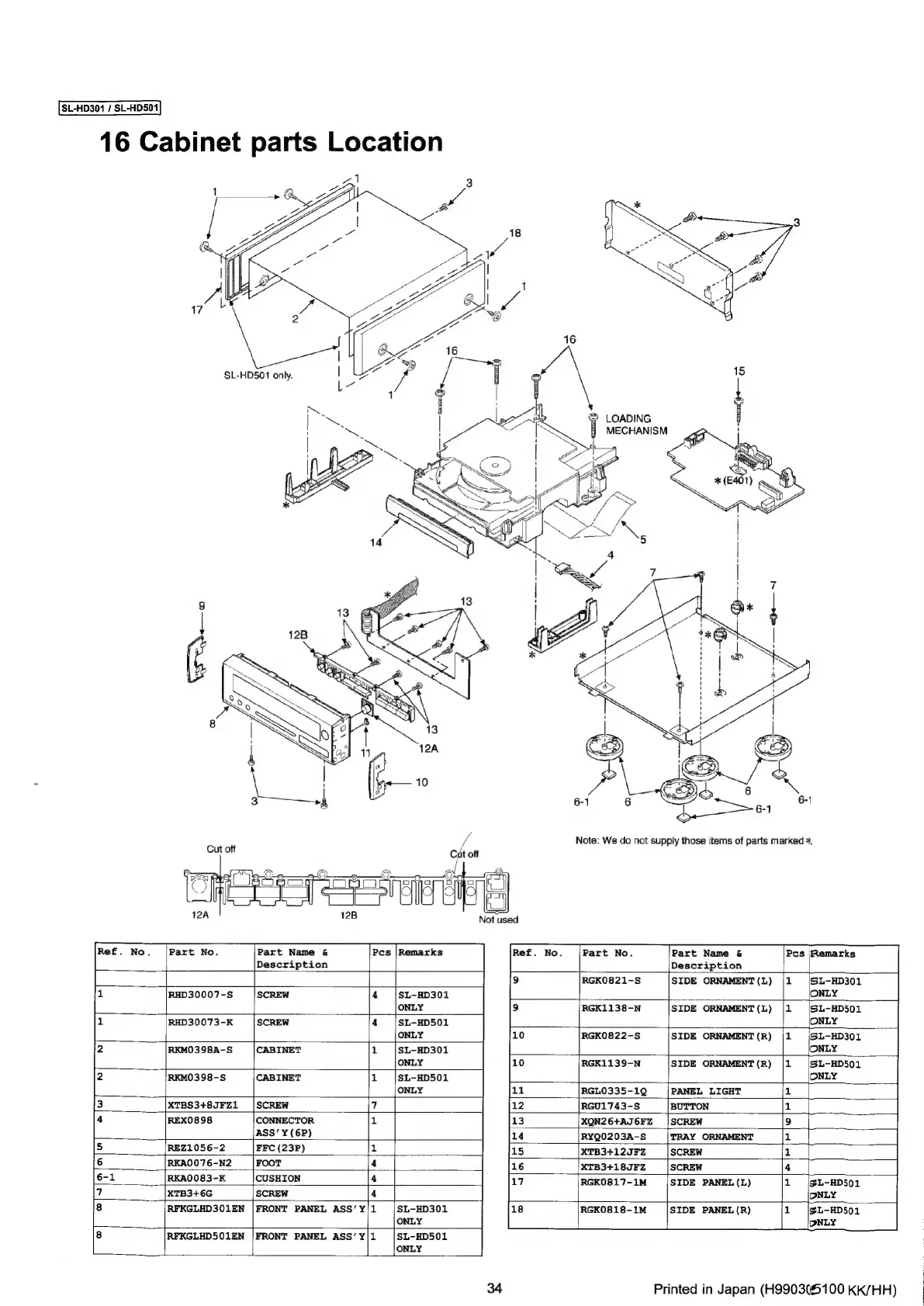

SL-HD301 / SL-HD501
16 Cabinet parts Location
SL-HD501 only.
Part No.
Part Name &
Description
LOADING
MECHANISM
Note: We do nat supply those items of parts marked %.
Part No.
Part Name &
|Description
jRemarks
RHD30007-S
SCREW
SL-HD301
ONLY
RGK0821-S
SIDE ORNAMENT (L)
SL-HD301
ONLY
RHD30073-K
SCREW
SL-HD501
ONLY
RGK1138-N
SIDE ORNAMENT (1)
SL-HD501
ONLY
RKM0398A-S
CABINET
SL-HD301
ONLY
RGK0822-S
SIDE ORNAMENT (R)
SL-HD301
ONLY
RKM0398-S
CABINET
SL-HD501
ONLY
RGK1139-N
SIDE ORNAMENT (R)
SL-HDS01
ONLY
RGLO335-19
PANEL LIGHT
XTBS3+8JFZ1
SCREW
RGU1743-S
BUTTON
REX0898
CONNECTOR
ASS’ Y (6P)
XQN26+AJS6FZ
SCREW
REZ1056-2 FFC (23P)
RYQ0203A-S
TRAY ORNAMENT
RKAO0O076-N2 Foot
XTB3+12IFZ
SCREW
RKA0083-K CUSHION
XTB3+18JFZ
SCREW
XTB3+6G6
SCREW
RGK0817-1M
SIDE PANEL (L)
SL-HDS01
ONLY
RFKGLHD301EN
FRONT PANEL ASS’Y
SL-HD301
ONLY
RFKGLHD501EN
FRONT PANEL ASS’Y
SL-HD501
ONLY
RGK0818-1M
SIDE PANEL (R)
