Technics SL-HD301 Service Manual

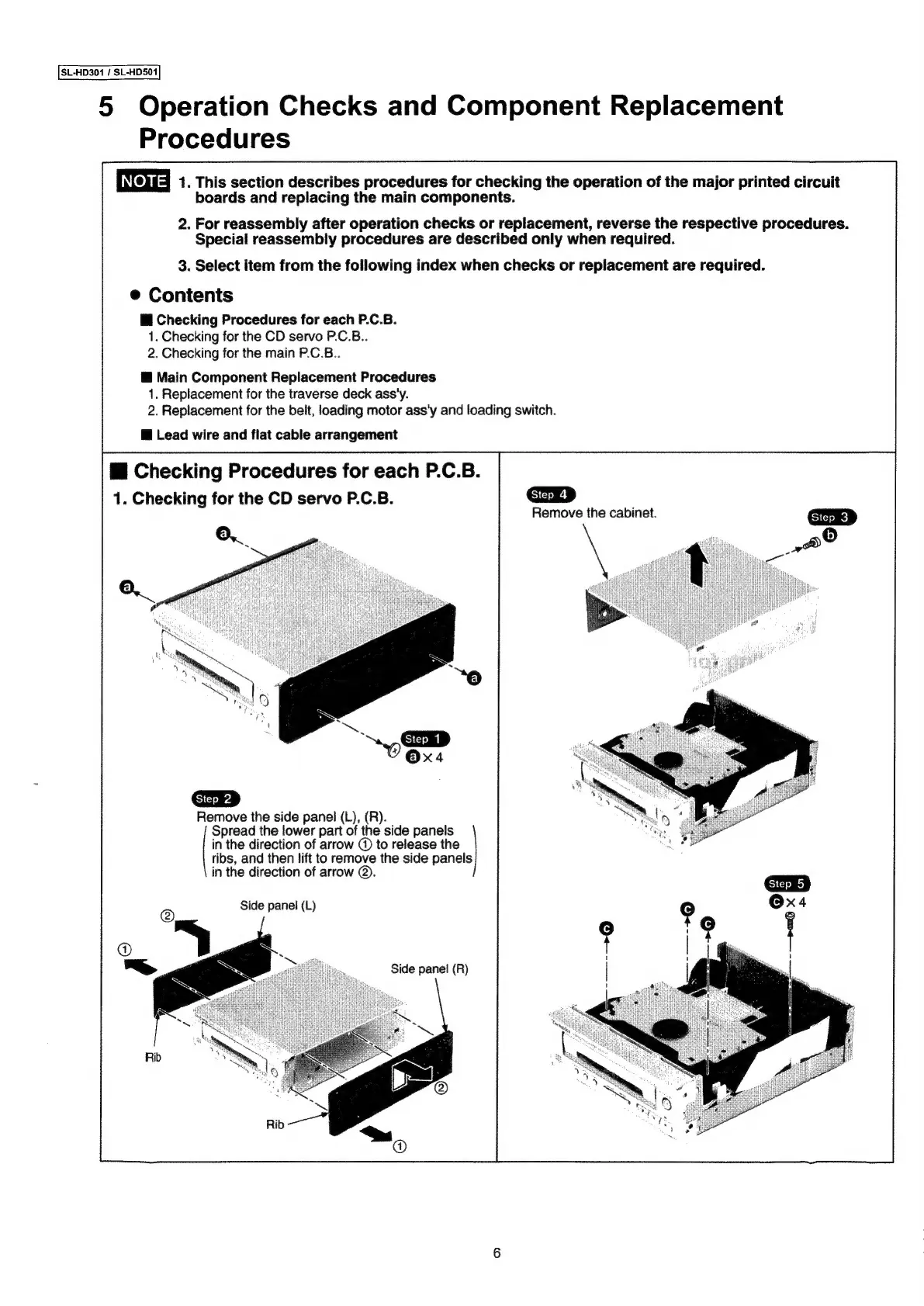

5 Operation Checks and Component Replacement
Procedures
(e203 1. This section describes procedures for checking the operation of the major printed circuit
boards and replacing the main components.
2. For reassembly after operation checks or replacement, reverse the respective procedures.
Special reassembly procedures are described only when required.
3. Select item from the following index when checks or replacement are required.
@ Contents
@ Checking Procedures for each P.C.B.
1. Checking for the CD servo P.C.B..
2. Checking for the main P.C.B..
@ Main Component Replacement Procedures
1. Replacement for the traverse deck ass'y.
2. Replacement for the belt, loading motor ass'y and loading switch.
@ Lead wire and flat cable arrangement
Mi Checking Procedures for each P.C.B.
1. Checking for the CD servo P.C.B.
Remove the cabinet. Step 3
Remove the side panel (L), (R).
Spread the lower part of the side panels
in the direction of arrow @ to release the
ribs, and then lift to remove the side panels
in the direction of arrow @.
Side panel (L)
Side panel (R)
