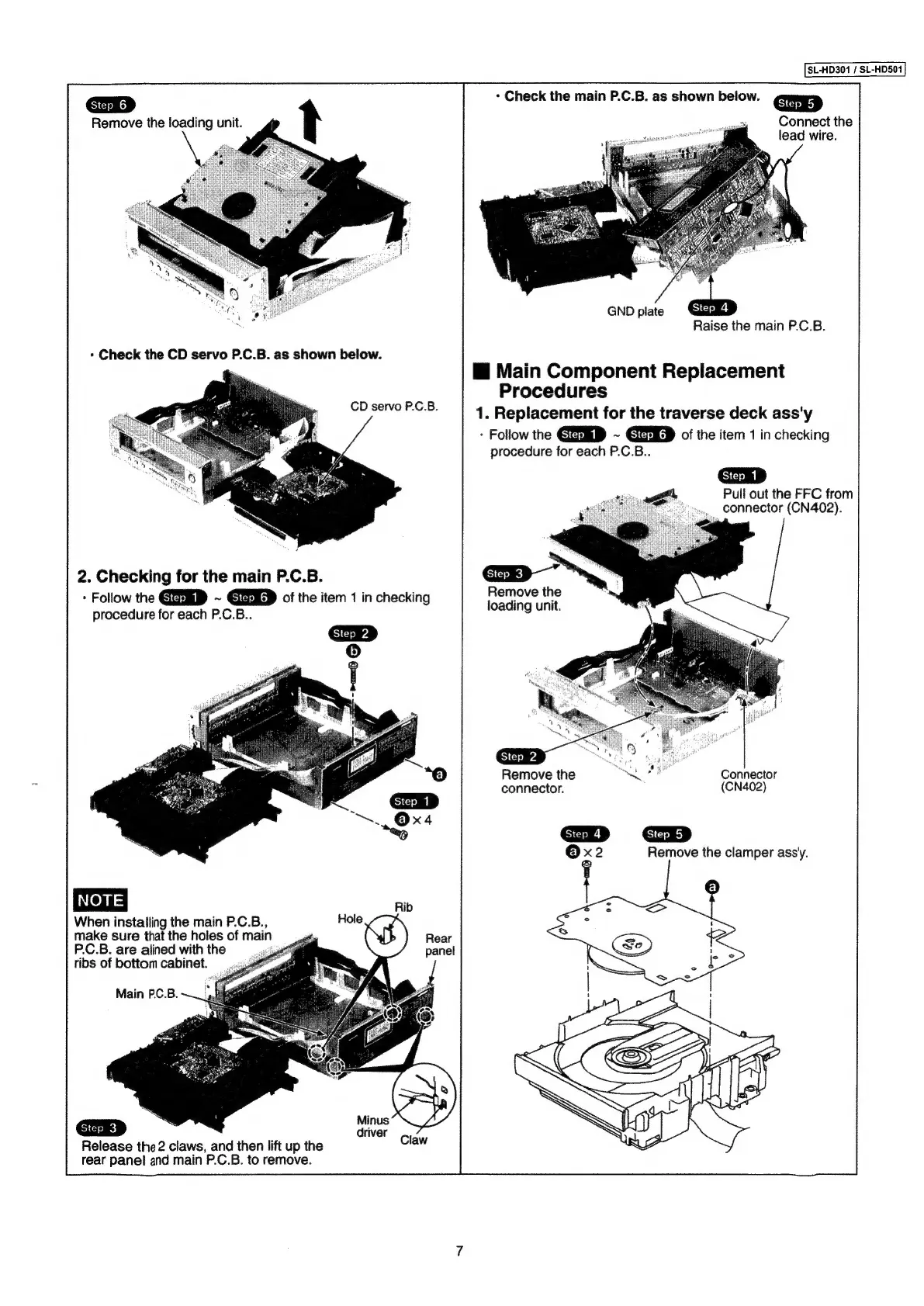

Technics SL-HD301 Service Manual

Remove the loading unit.
as shown below.
CD servo P.C.B.
2. Checking for the main P.C.B.
- Follow the ~ of the item 1 in checking
procedure for each P.C.B..
When installing the main P.C.B.,
make sure that the holes of main
P.C.B. are alined with the
ribs of bottom cabinet.
Main PC.B.
Release the 2 claws, and then lift up the
rear panel and main P.C.B. to remove.
as shown below. Cap
Connect the
lead wire.
« Check the main P.C.B.
GND plate
Raise the main P.C.B.
i Main Component Replacement
Procedures
1. Replacement for the traverse deck ass'y
: Follow the ~ of the item 1 in checking
procedure for each P.C.B..
wes Pull out the FFC from
nas : connector (CN402).
Remove ss
loading unit.
Remove the Connector
connector. (CN402)
Remove the clamper assy.
