Connections
Basic

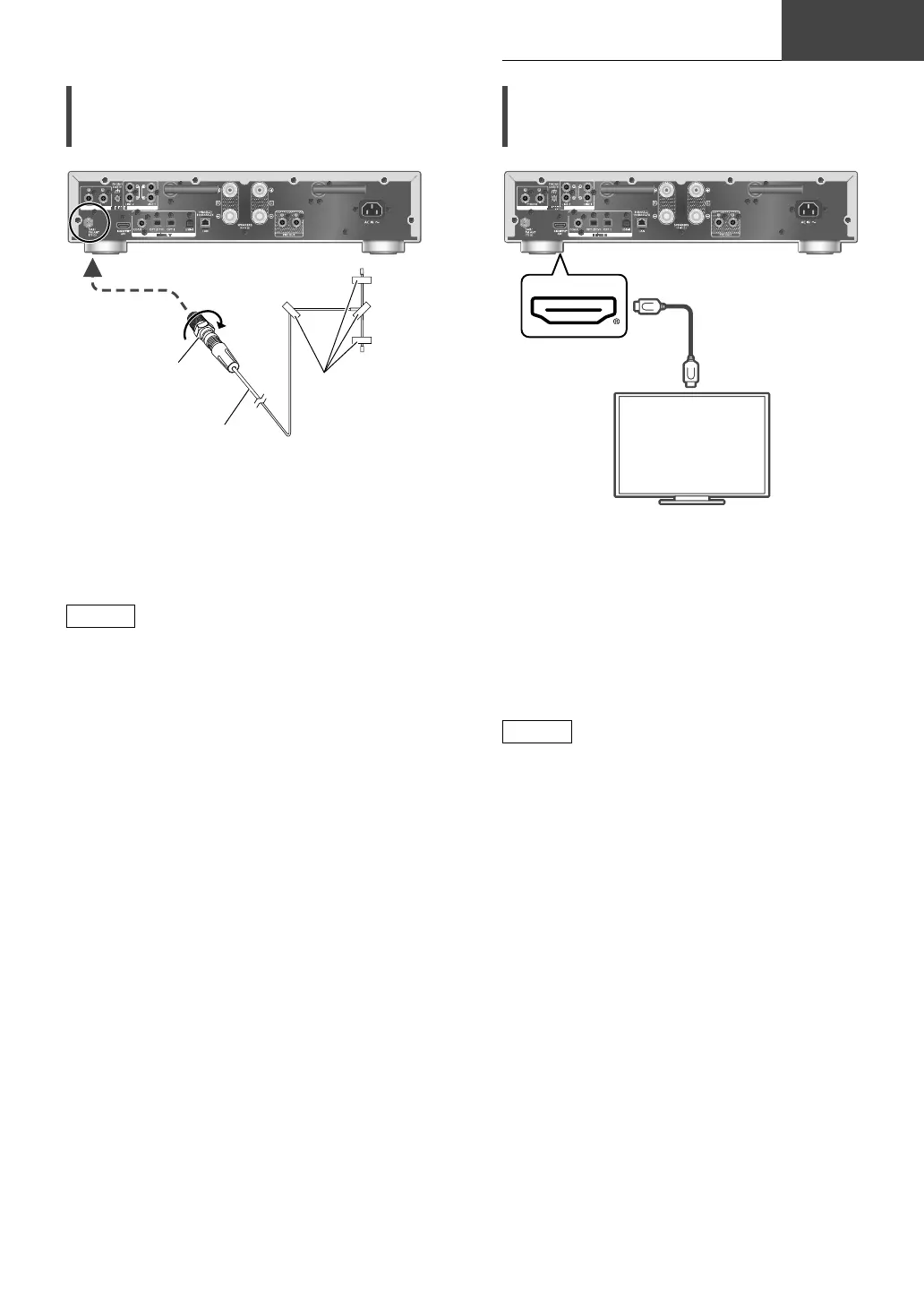

Antenna connection
Adhesive tape
(not supplied)
Be sure to tighten
the nut fully.
DAB indoor antenna
(supplied)
• This unit can receive DAB+ and FM stations
with the DAB antenna.
• Tape the antenna to a wall or column at the
position with the least amount of interference.
• If radio reception is poor, use a DAB outdoor
antenna (not supplied).
Note
• The interference may occur if any electronic
devices are nearby.
Connecting HDMI equipment
with ARC function (TV, etc.)
TV, etc.
HDMI cable
(not supplied)
• Use Premium High Speed HDMI cables when
connecting to peripheral devices.
• Connect this unit to the HDMI input terminal
which has ARC (Audio Return Channel)
function.
• Set the audio output from TV speakers to Off.
For details, refer to the operating instructions
of the TV.
Note
• Linear PCM signal is only available for ARC
function.
• Do not input the signals other than linear PCM
signal, otherwise it may cause noise or damage
the connected speakers.
• For the equipment does not support ARC
function, connect the equipment with HDMI
cable (not supplied) and optical digital audio
cable (not supplied) to the optical digital input
terminal (OPT2) of this unit.
• To provide the higher quality sound, select
“On (Custom)” of “Pure Amplification” from
the setup menu and set “Network/USB-A/
Bluetooth” to “Disabled” to disable the
network functions. ( 12)
• The volume may be lower depending on the
connected TV.
