13
Basic

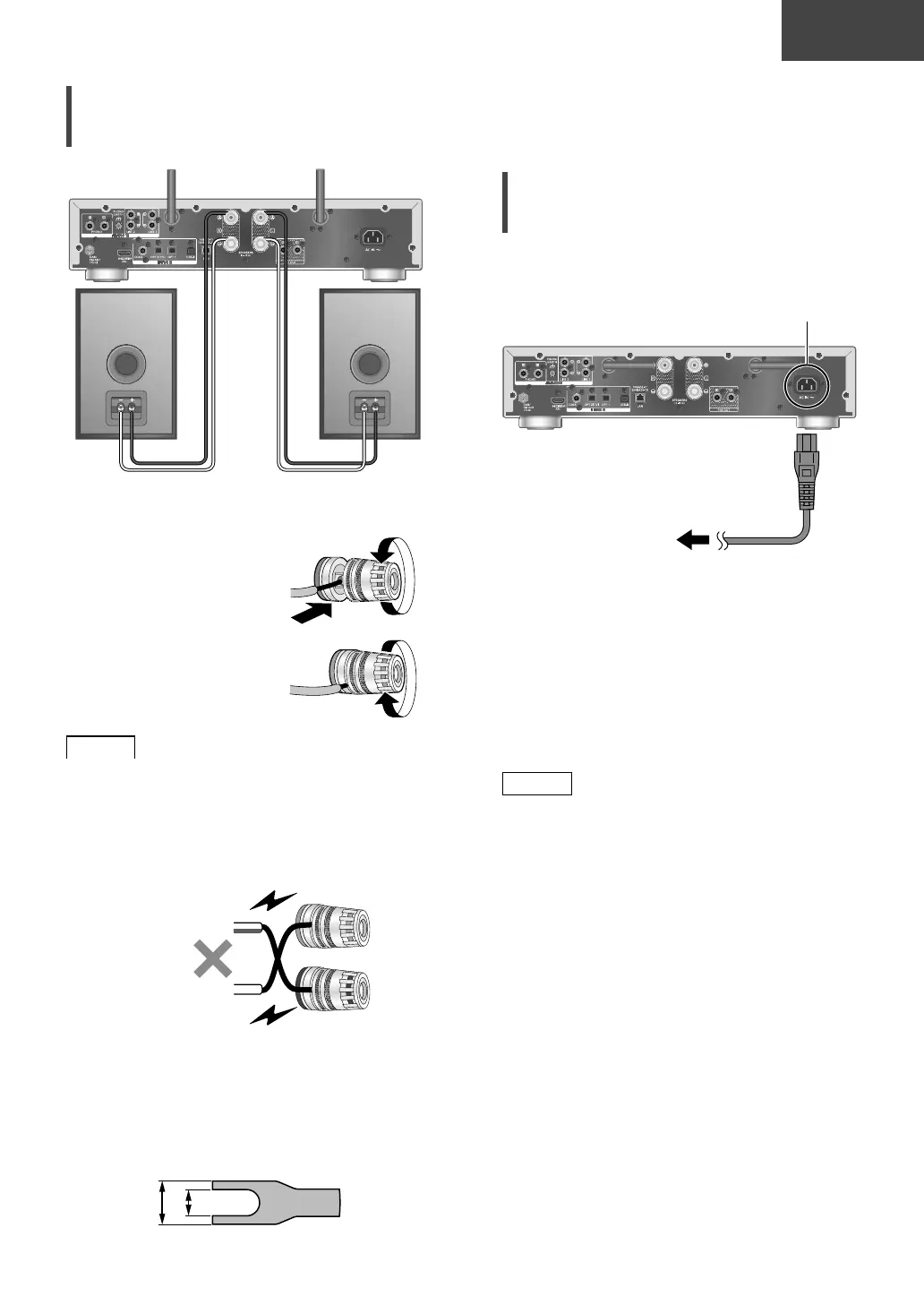

Speaker connection
Speaker cable
(not supplied)
Speaker cable
(not supplied)
1 Turn the knobs to
loosen them, and
insert the core wires
into the holes.
2 Tighten the knobs.
Note
• When the connections are completed, pull the
speaker cables lightly to check that they are
connected firmly.
• Be careful not to cross (short-circuit) or reverse
the polarity of the speaker wires as doing so
may damage the amplifier.
DO NOT
• Wire the polarity (+/-) of the terminals correctly.
Not doing so may adversely affect stereo
effects or cause malfunction.
• Though the spade plug (A: 16 mm or less, B:
8 mm or more) can be connected, some plug
may not be connected depending on the shape
of plug.
AB
• For details, refer to the operating instructions
of the speakers.
AC mains lead connection
Connect only after all other connections are
completed.
AC IN terminal
To a household mains socket
AC mains lead
(supplied)
• Use only the supplied AC mains lead.
• Do not connect the AC mains lead until all
other connections are complete.
• Insert the plugs of the cables to be connected
all the way in.
• Do not bend cables at sharp angles.
• Wireless LAN (Wi-Fi
®
) setting may start when
this unit is turned on. If you stop the Wi-Fi
setting, select “No” in “Wi-Fi Setup” screen.
Select “Yes” to keep the Wi-Fi setting. ( 15)
Note
• This unit consumes a small amount of AC
power ( 21) even when the unit is in standby
mode. Remove the plug from the main
electrical outlet if you will not be using the unit
for an extended period of time. Place the unit
so the plug can be easily removed.
