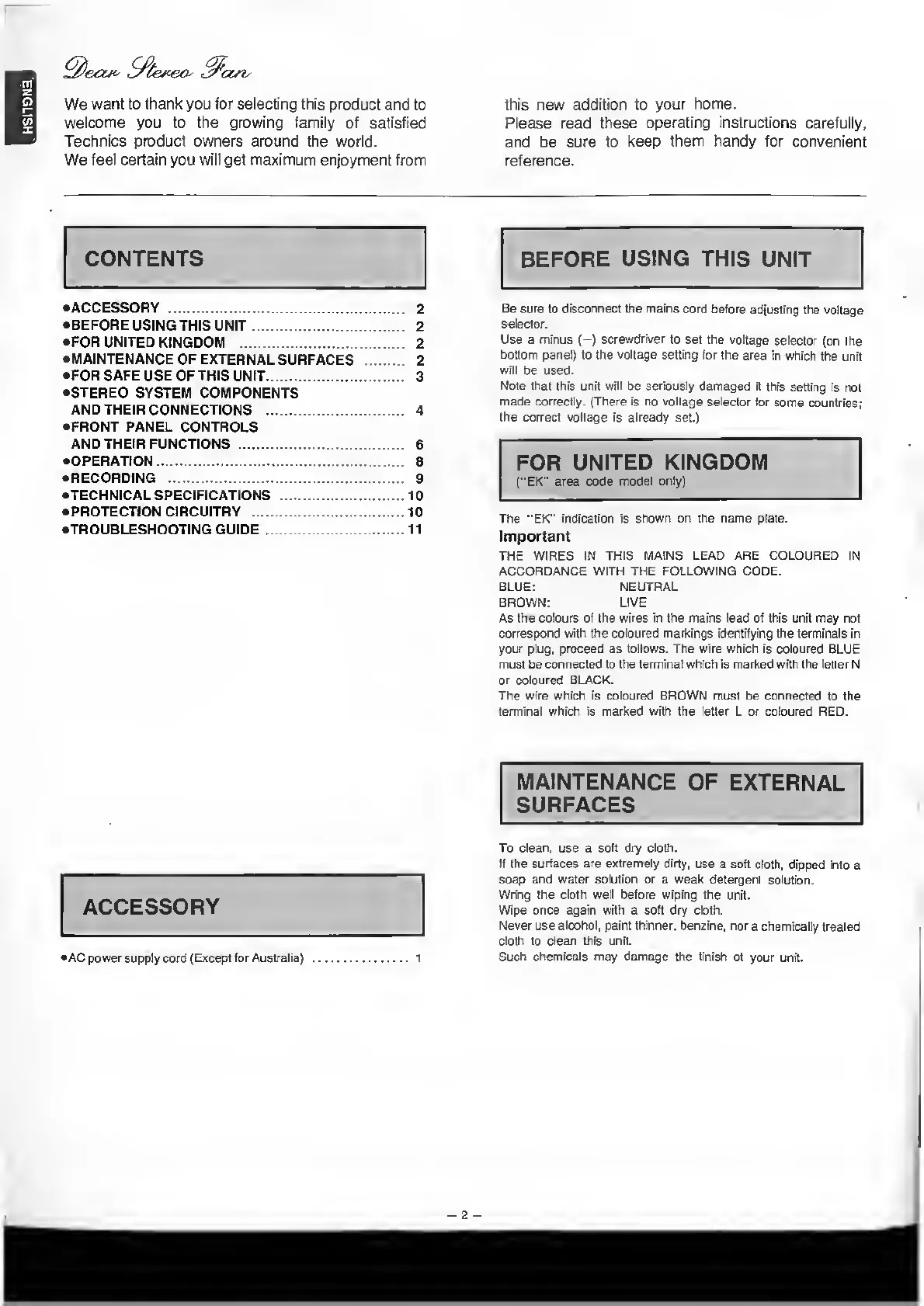

Technics SU-V4X User Manual

ENGLISH
eajo Sftejteo; J?
CUV
We want to thank you for selecting this product and to
welcome you to the growing family of satisfied
Technics product owners around the world.
We feel certain you will get maximum enjoyment from
this new addition to your home.
Please read these operating instructions carefully,
and be sure to keep them handy for convenient
reference.
CONTENTS
•ACCESSORY . 2
• BEFORE USING THIS UNIT. 2
• FOR UNITED KINGDOM . 2
• MAINTENANCE OF EXTERNAL SURFACES . 2
• FOR SAFE USE OF THIS UNIT. 3
•STEREO SYSTEM COMPONENTS
AND THEIR CONNECTIONS . 4
•FRONT PANEL CONTROLS
AND THEIR FUNCTIONS . 6
•OPERATION. 8
• RECORDING . 9
•TECHNICAL SPECIFICATIONS .10
• PROTECTION CIRCUITRY .10
•TROUBLESHOOTING GUIDE .11
ACCESSORY
•AC power supply cord (Except for Australia) . 1
BEFORE USING THIS UNIT
Be sure to disconnect the mains cord before adjusting the voltage
selector.
Use a minus (-) screwdriver to set the voltage selector (on the
bottom panel) to the voltage setting for the area in which the unit
will be used.
Note that this unit will be seriously damaged if this setting is not
made correctly. (There is no voltage selector for some countries;
the correct voltage is already set.)
FOR UNITED KINGDOM
("EK" area code model only)
The "EK” indication is shown on the name plate.
Important
THE WIRES IN THIS MAINS LEAD ARE COLOURED IN
ACCORDANCE WITH THE FOLLOWING CODE.
BLUE: NEUTRAL
BROWN: LIVE
As the colours of the wires in the mains lead of this unit may not
correspond with the coloured markings identifying the terminals in
your plug, proceed as follows. The wire which is coloured BLUE
must be connected to the terminal which is marked with the letter N
or coloured BLACK.
The wire which is coloured BROWN must be connected to the
terminal which is marked with the letter L or coloured RED.
MAINTENANCE OF EXTERNAL
SURFACES
To clean, use a soft dry cloth.
If the surfaces are extremely dirty, use a soft cloth, dipped into a
soap and water solution or a weak detergent solution.
Wring the cloth well before wiping the unit.
Wipe once again with a soft dry cloth.
Never use alcohol, paint thinner, benzine, nor a chemically treated
cloth to clean this unit.
Such chemicals may damage the finish of your unit.
