Technics SU-V4X User Manual

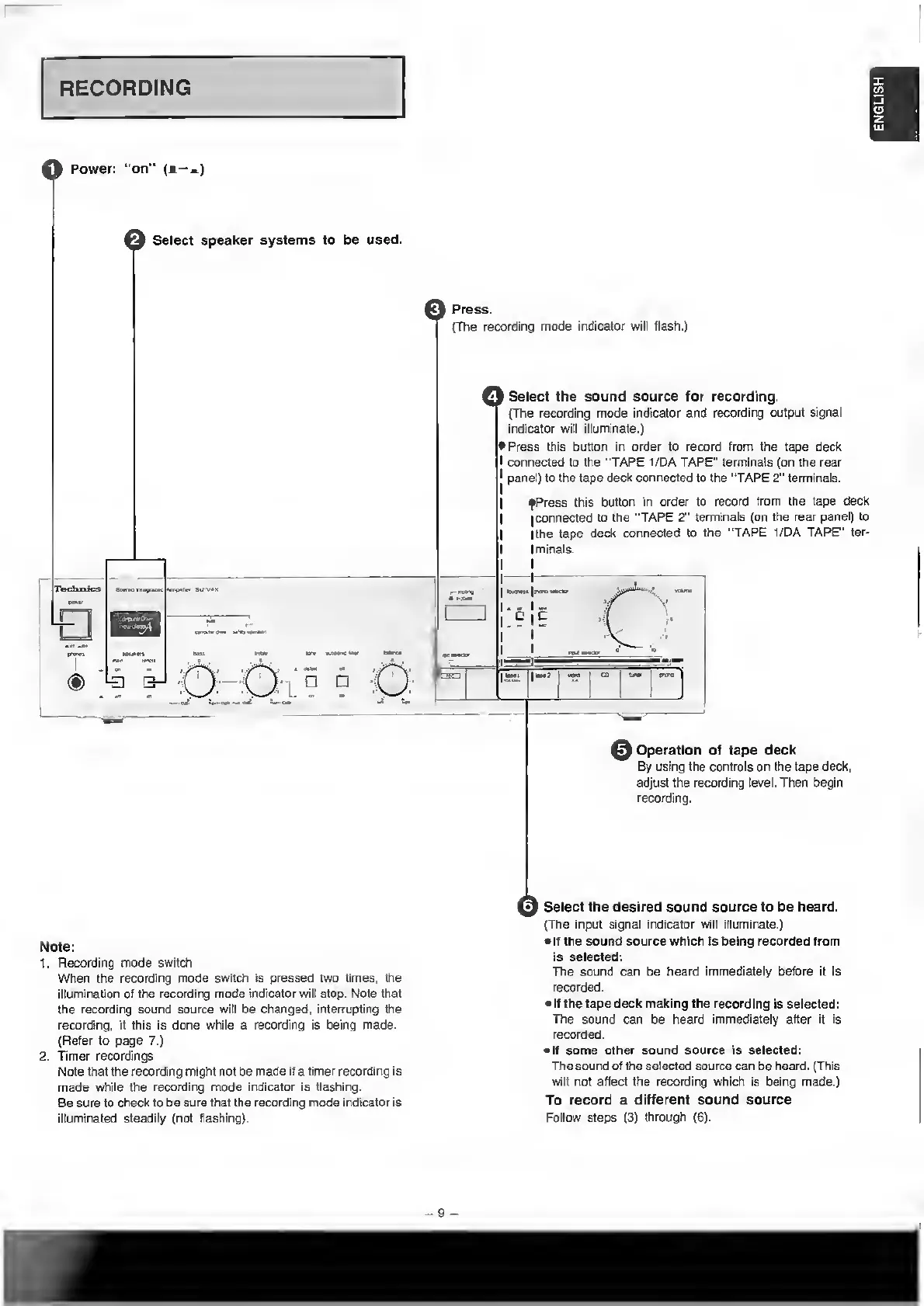

RECORDING
A Power: "on” (*-«)
Select speaker systems to be used.
A Press.
| (The recording mode indicator will flash.)
A Select the sound source for recording.
(The recording mode indicator and recording output signal
indicator will illuminate.)
• Press this button in order to record from the tape deck
I connected to the "TAPE 1/DA TAPE" terminals (on the rear
1 panel) to the tape deck connected to the "TAPE 2" terminals.
| fPress this button in order to record from the tape deck
| (connected to the "TAPE 2" terminals (on the rear panel) to
| | the tape deck connected to the “TAPE 1/DA TAPE" ter-
I I minals.
(0 Operation of tape deck
By using the controls on the tape deck,
adjust the recording level. Then begin
recording.
Note:
1. Recording mode switch
When the recording mode switch is pressed two times, the
illumination of the recording mode indicator will stop. Note that
the recording sound source will be changed, interrupting the
recording, if this is done while a recording is being made.
(Refer to page 7.)
2. Timer recordings
Note that the recording might not be made if a timer recording is
made while the recording mode indicator is flashing.
Be sure to check to be sure that the recording mode indicator is
illuminated steadily (not flashing).
Select the desired sound source to be heard.
(The input signal indicator will illuminate.)
• If the sound source which is being recorded from
is selected:
The sound can be heard immediately before it is
recorded.
• If the tape deck making the recording is selected:
The sound can be heard immediately after it is
recorded.
• If some other sound source is selected:
The sound of the selected source can be heard. (This
will not affect the recording which is being made.)
To record a different sound source
Follow steps (3) through (6).
