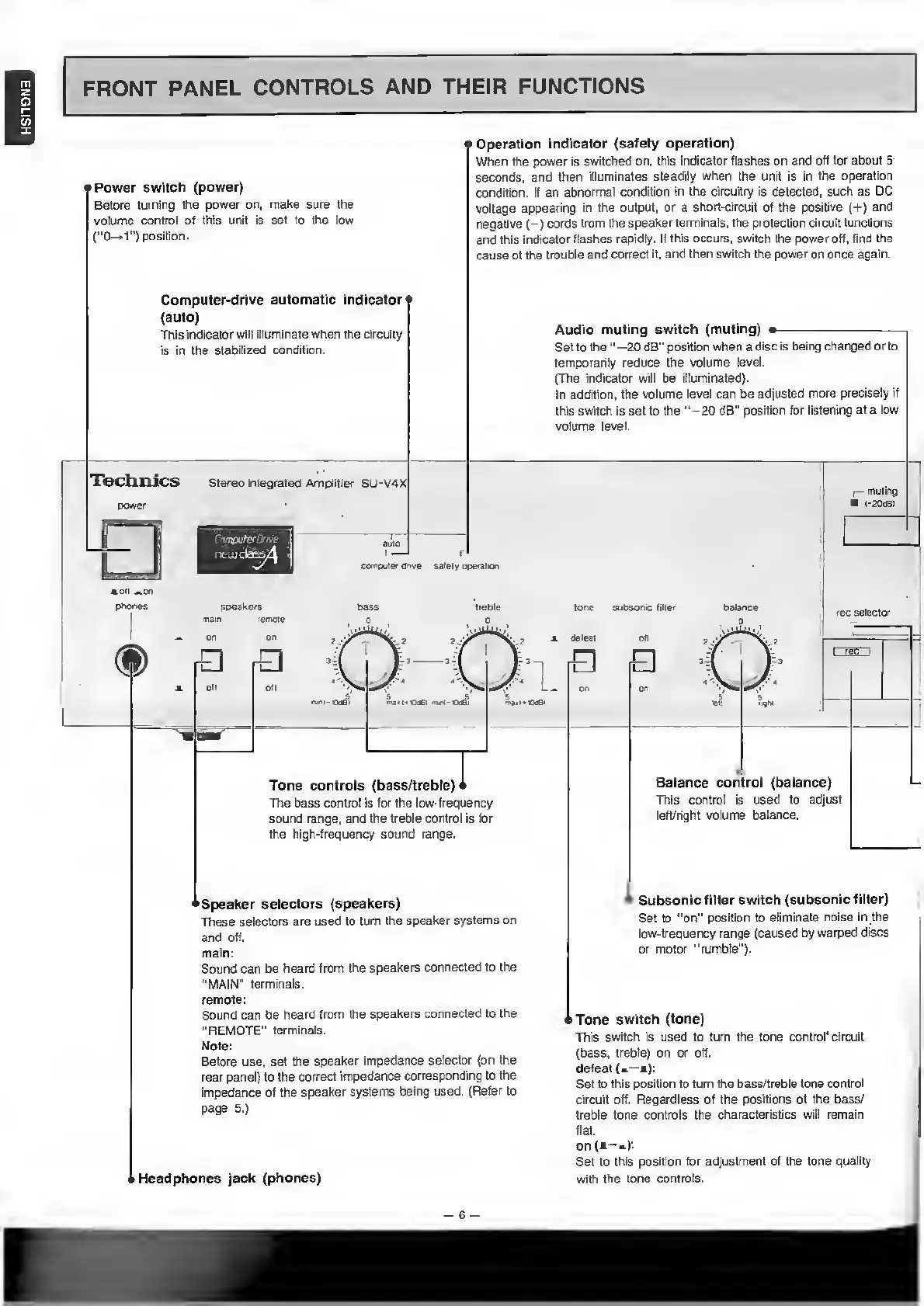

FRONT PANEL CONTROLS AND THEIR FUNCTIONS
1 ' Power switch (power)
Before turning the power on, make sure the
volume control of this unit is set to the low
(‘‘0—*1") position.
Operation indicator (safety operation)
When the power is switched on, this indicator flashes on and off for about 5
seconds, and then illuminates steadily when the unit is in the operation
condition. If an abnormal condition in the circuitry is detected, such as DC
voltage appearing in the output, or a short-circuit of the positive (+) and
negative (-) cords from the speaker terminals, the protection circuit functions
and this indicator flashes rapidly. If this occurs, switch the power off, find the
cause of the trouble and correct it, and then switch the power on once again.
Computer-drive automatic indicator
(auto)
This indicator will illuminate when the circuity
is in the stabilized condition.
Technics Stereo Integrated Amplifier SU-V4X
power
”13 rl
computer drive safety operation
Audio muting switch (muting) •-
Set to the ''-20 dB" position when a disc is being changed or to
temporarily reduce the volume level.
(The indicator will be illuminated).
In addition, the volume level can be adjusted more precisely if
this switch is set to the “-20 dB" position for listening at a low
volume level.
i— muting
■ 1-200SI
jaofl —.on
phones
i>
speakers
mam remote
tone subsonic filter
defeat Off
rO
p
on
on
Tone controls (bass/treble) <
The bass control is for the low-frequency
sound range, and the treble control is for
the high-frequency sound range.
rec selector
I rec i
Balance control (balance)
This control is used to adjust
left/right volume balance.
• Speaker selectors (speakers)
These selectors are used to turn the speaker systems on
and off.
main:
Sound can be heard from the speakers connected to the
"MAIN" terminals.
remote:
Sound can be heard from the speakers connected to the
“REMOTE" terminals.
Note:
Before use, set the speaker impedance selector (on the
rear panel) to the correct impedance corresponding to the
impedance of the speaker systems being used. (Refer to
page 5.)
Headphones jack (phones)
* Subsonic filter switch (subsonic filter)
Set to “on" position to eliminate noise in the
low-frequency range (caused by warped discs
or motor “rumble").
• Tone switch (tone)
This switch is used to turn the tone control' circuit
(bass, treble) on or off.
defeat (-—«):
Set to this position to turn the bass/treble tone control
circuit off. Regardless of the positions of the bass/
treble tone controls the characteristics will remain
flat.
on (»--):
Set to this position for adjustment of the tone quality
with the tone controls.
- 6 -
