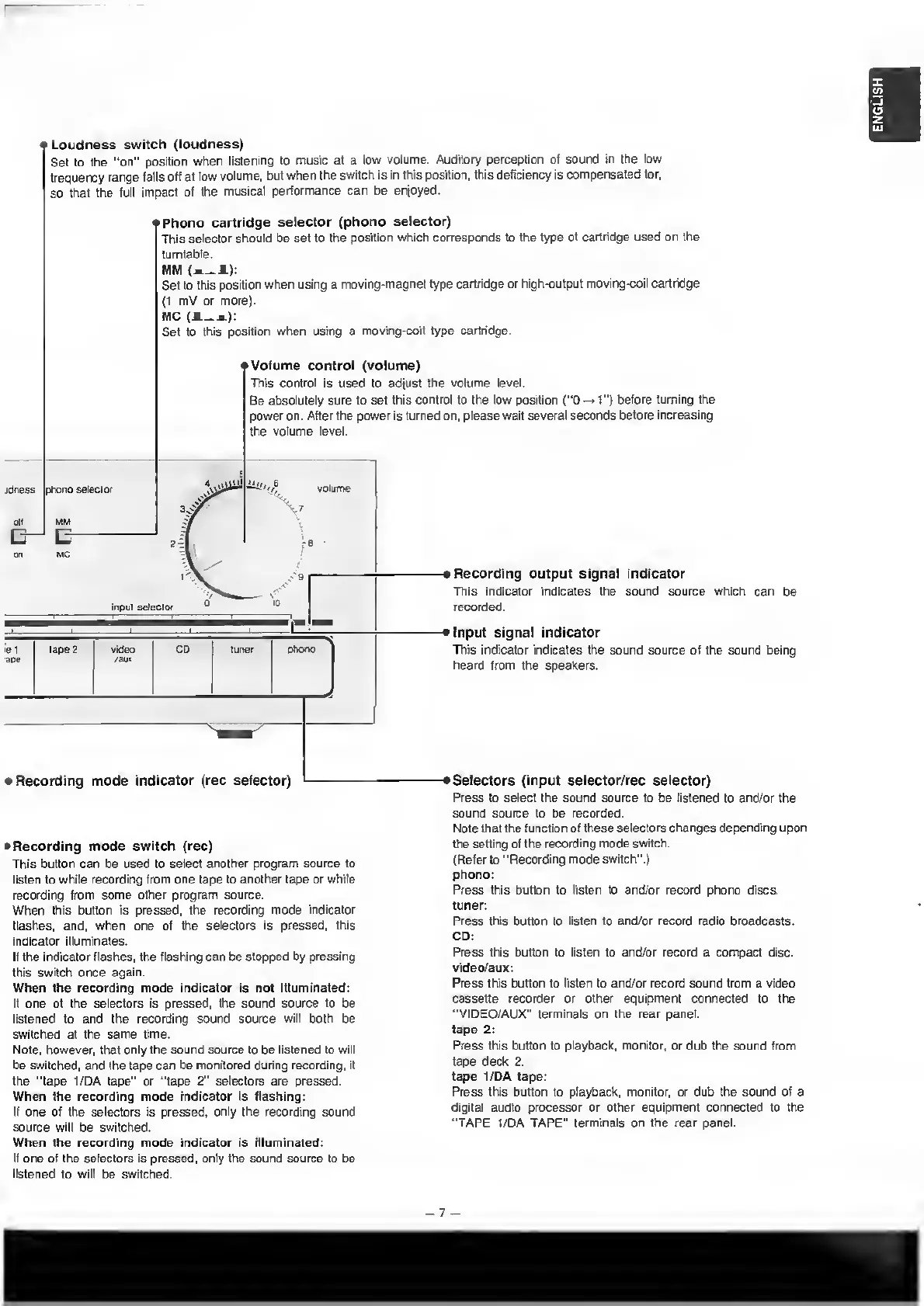

i Loudness switch (loudness)
Set to the "on" position when listening to music at a low volume. Auditory perception of sound in the low
frequency range falls off at low volume, but when the switch is in this position, this deficiency is compensated for,
so that the full impact of the musical performance can be enjoyed.
Phono cartridge selector (phono selector)
This selector should be set to the position which corresponds to the type of cartridge used on the
turntable.
MM (-.^i):
Set to this position when using a moving-magnet type cartridge or high-output moving-coil cartridge
(1 mV or more).
MC (*-»):
Set to this position when using a moving-coil type cartridge.
jdness
phono selector
Volume control (volume)
This control is used to adjust the volume level.
Be absolutely sure to set this control to the low position ("0-»1") before turning the
power on. After the power is turned on, please wait several seconds before increasing
the volume level.
•e 1
ape
tape 2
video
/au*
CD
tuner phono
• Recording output signal indicator
This indicator indicates the sound source which can be
recorded.
• Input signal indicator
This indicator indicates the sound source of the sound being
heard from the speakers.
• Recording mode indicator (rec selector) -•Selectors (input selector/rec selector)
»Recording mode switch (rec)
This button can be used to select another program source to
listen to while recording from one tape to another tape or while
recording from some other program source.
When this button is pressed, the recording mode indicator
flashes, and, when one of the selectors is pressed, this
indicator illuminates.
If the indicator flashes, the flashing can be stopped by pressing
this switch once again.
When the recording mode indicator is not illuminated:
If one of the selectors is pressed, the sound source to be
listened to and the recording sound source will both be
switched at the same time.
Note, however, that only the sound source to be listened to will
be switched, and the tape can be monitored during recording, if
the "tape 1/DA tape" or “tape 2" selectors are pressed.
When the recording mode indicator is flashing:
If one of the selectors is pressed, only the recording sound
source will be switched.
When the recording mode indicator is illuminated:
If one of the selectors is pressed, only the sound source to be
listened to will be switched.
Press to select the sound source to be listened to and/or the
sound source to be recorded.
Note that the function of these selectors changes depending upon
the setting of the recording mode switch.
(Refer to "Recording mode switch".)
phono:
Press this button to listen to and/or record phono discs.
tuner:
Press this button to listen to and/or record radio broadcasts.
CD:
Press this button to listen to and/or record a compact disc.
video/aux:
Press this button to listen to and/or record sound from a video
cassette recorder or other equipment connected to the
“VIDEO/AUX" terminals on the rear panel,
tape 2 :
Press this button to playback, monitor, or dub the sound from
tape deck 2.
tape 1/DA tape:
Press this button to playback, monitor, or dub the sound of a
digital audio processor or other equipment connected to the
"TAPE 1/DA TAPE" terminals on the rear panel.
