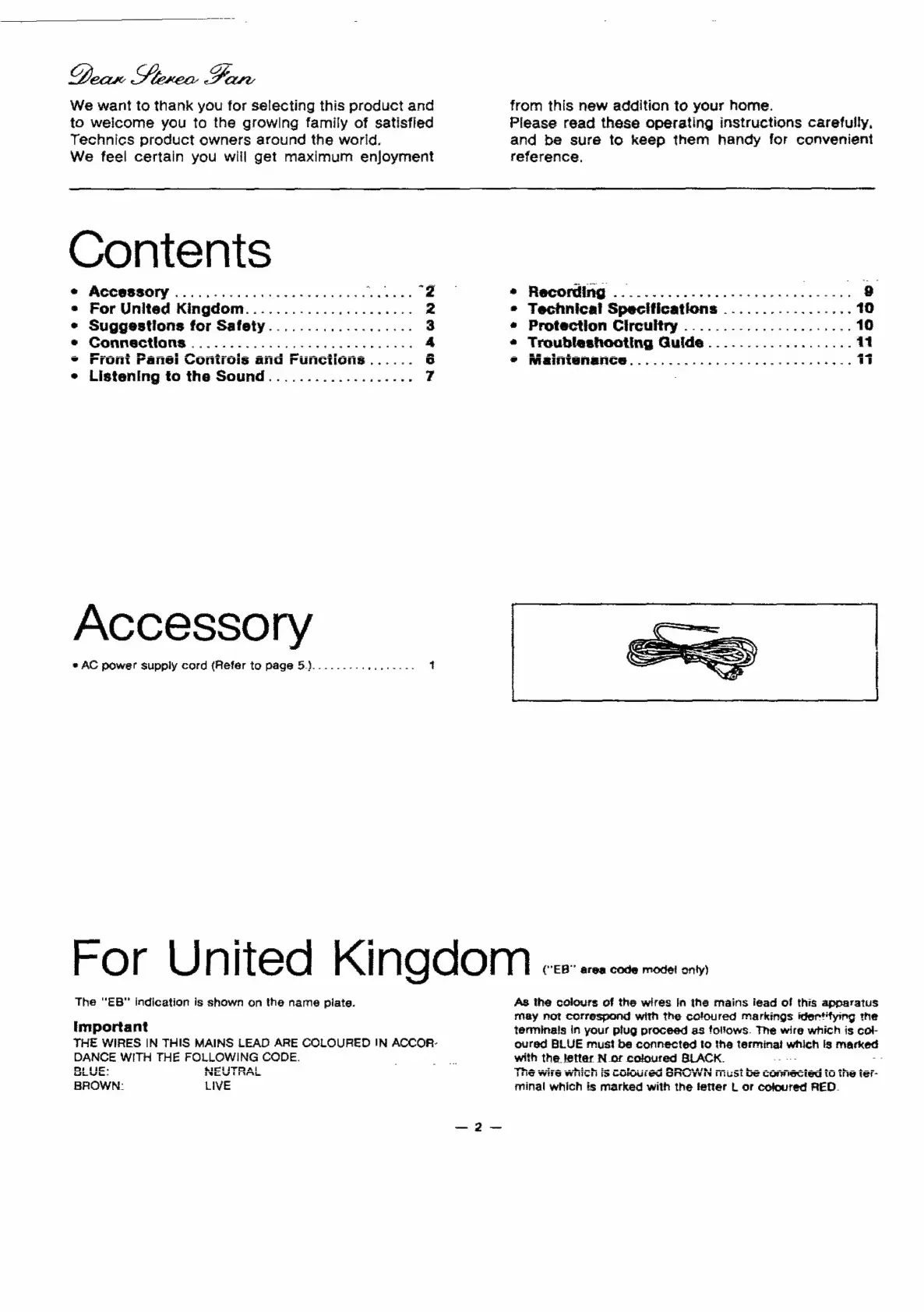

Technics SU-V660 User Manual

We want to thank you for selecting this product and from this new addition to your home.
to welcome you to the growlng family of satisfied Please read these operating instructions carefully,
Technics product owners around the world. and be sure to keep them handy for convenient
We feel certain you will get maximum enjoyment reference.
Contents
e Accessory ......................... eta e Recording ....................0000002 2 ee 9
e For United Kingdom...................... 2 * Technical Specifications ................. 10
¢ Suggestions for Safety................... 3 ¢ Protection Circultry ...................... 10
e Gonnections .........0...00. 0.0. cee eee 4 * Troubleshooting Guide ................... 11
* Front Panei Conirois and Functions...... Ss © MiaiNiGNANCE............00. 0... eee eee a7
e Listening to the Sound................... 7
Accessory
e AC power supply cord (Refer to page 5.)......--......... 4
FOP United KIN GGOM ces: wo ie noon
The “EB” indication is shown on the name piate. As the colours of the wires In the mains fead of this apparatus
may not correspond with the coloured markings iderf'fying the
Important
terminals
in
your
plug
proceed
as
follows.
The
wire
which
is
col-
THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCOR- oured BLUE must be connected to the terminal which Is macked
DANCE WITH THE FOLLOWING CODE. —s with the letter Nor coloured BLACK. :
BLUE: NEUTRAL Ths wires which is CoMured SRCWN must be Connected to the ter-
BROWN: LIVE minal which is marked with the fetter L or cofoured RED.

Technics SU-V660 Specifications

General

Type	Integrated Amplifier
Total Harmonic Distortion	0.007%
Damping Factor	60
Input Sensitivity	2.5mV (MM), 150mV (line)
Channel Separation	55 dB (line)
Speaker Load Impedance	4Ω to 16Ω
Signal to Noise Ratio	106dB (line)
Dimensions	430 x 150 x 360mm (W x H x D)
