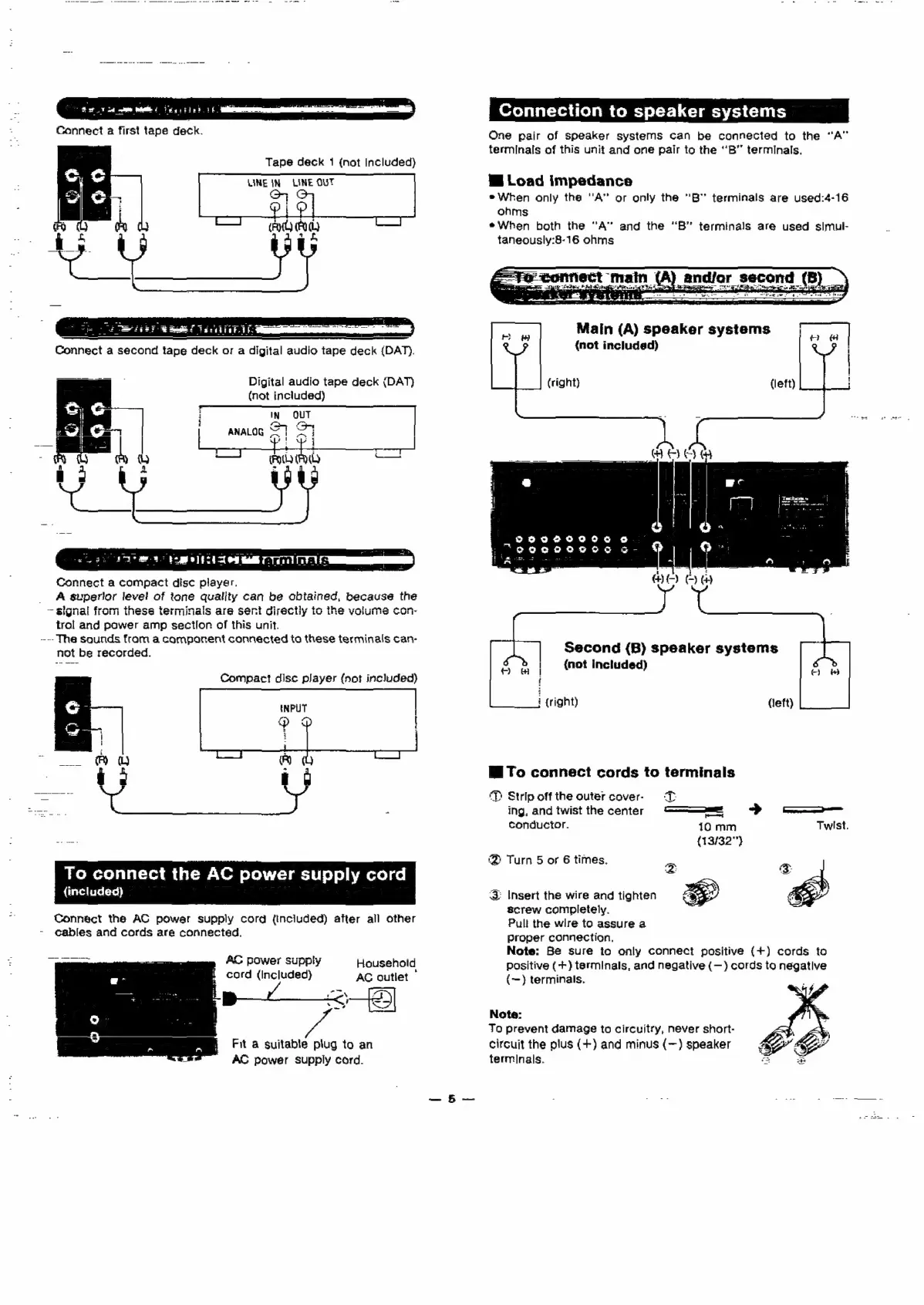

eee Smee a TTF:
Connect a second tape deck ar a digital audio tape deck (DAT).
Digital audio tape deck (DAT}
(not included)
IN QUT
anaog 2]
ol a! seal
Connect a compact dise player.
A superior level of tone quality can be obtained, because the
-—@lanal frarm thace tarnmiingnle are cart Ahrantiy to thea value earn
a) el ee ed ee ee
trol and pawer amp section of this unit.
--- The sounds from a camporent connected ta these terminals can-
not be recorded.
er
Compact disc player (not included)
To connect the AC power supply cord
(included)
Connect the AC power supply cord (Included) after all other
- gables and cords are connected.
—
———
AS
power
supply
Household
cord
(Included)
AC
outlet
|
Fit & suitable plug to an
AS power supply cord.
Connection to speaker systems
One pair of speaker systems can be connected to the “A”
terminals of this unit and one pair to the ''B” terminals.
Wi Load impedance
® When only the ''A” or only the "'B’ terminals are used:4-16
ohms
®*When both the “A” and the “B’ terminalis are used slmul-
taneously:8-16 ohms
Main (A) speaker systems
{not included)
(right)
Te ae
HO Ow
Second (B) speaker systems
5 a | {not included)
i
i (right) (lett)
Mi To connect cords to terminals
® Strip off the outer cover. <T:
ing, andtwist the center ——e >
conductor. 10 mm Twist.
(13/32""}
>
Turn
5
of
6
times.
m
3 Insert the wire and tighten ay
screw completely.
Pull the wire to assure a
Proper connection.
Note: Be sure to only connect positive (+) cords to
positive (+) terminals, and negative (—) cords to negative
(-)} terminals.
Note:
:
To
prevent
damage
to
circuitry,
never
short-
.
7
circuit the plus (+) and minus (—) speaker AO’ Ke
terminals. ae

Technics SU-V660 Specifications

General

Type	Integrated Amplifier
Total Harmonic Distortion	0.007%
Damping Factor	60
Input Sensitivity	2.5mV (MM), 150mV (line)
Channel Separation	55 dB (line)
Speaker Load Impedance	4Ω to 16Ω
Signal to Noise Ratio	106dB (line)
Dimensions	430 x 150 x 360mm (W x H x D)
