Technics SX-PX552 Service Manual

(Step2)

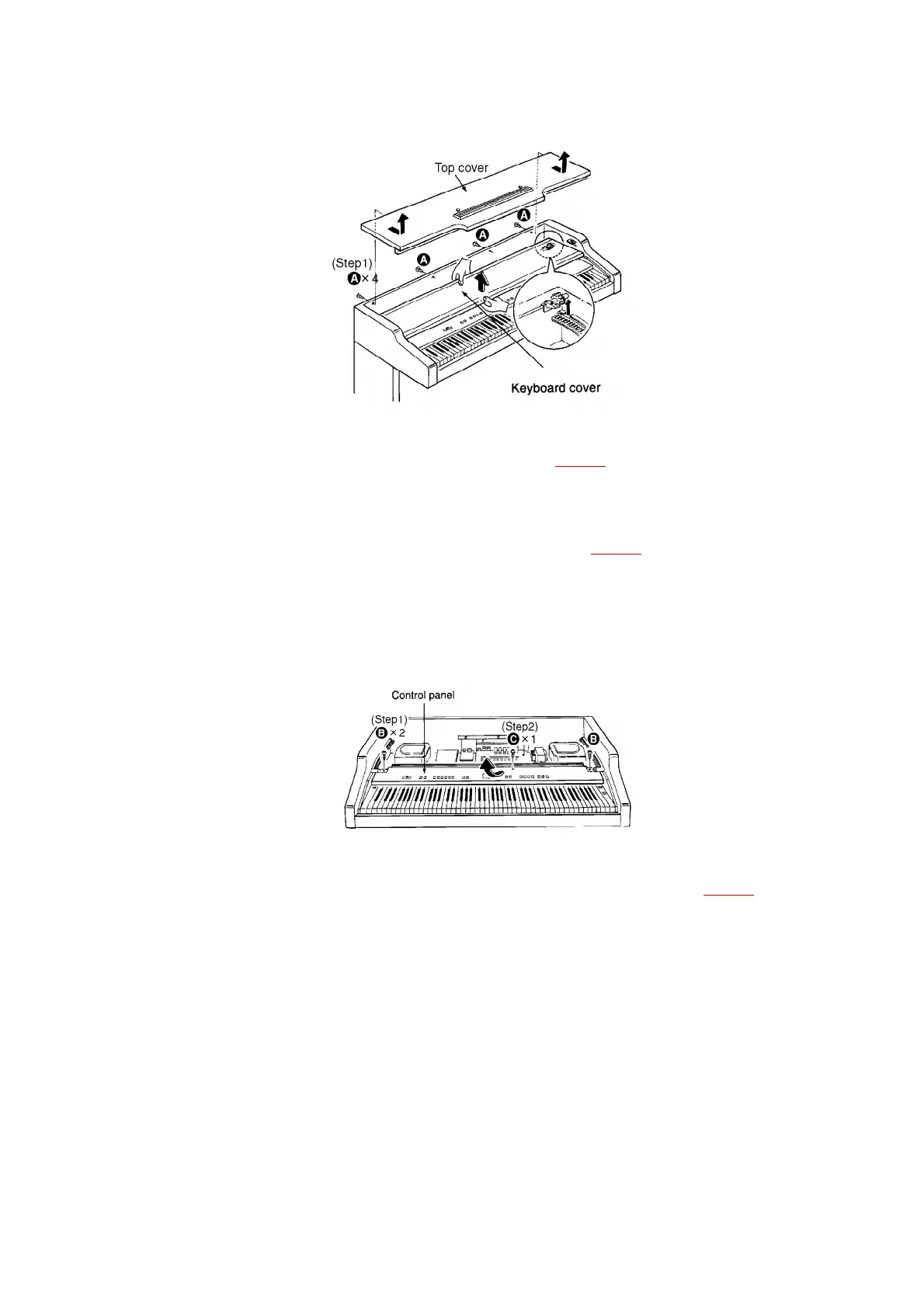

Remove the top cover in the direction of arrows (refer to [Fig. 1]).
(Step3)
Remove the keyboard cover in the direction of arrow (refer to [Fig. 1]).
9.2. Removing the control panel
- Follow the (Step1)-(Step3) of item 9.1.
[Fig. 2]
(Step3)
Slide the control panel forward and pull out in the direction of arrow (refer to [Fig. 2]).
9.3. Removing the keyboard assembly
- Follow the (Step1)-(Step3) of item 9.1.
- Follow the (Step1)-(Step3) of item 9.2.
[Fig. 3]
7
