(Step2)
Release the claws of the 3 P.C.B. holders.
- HP P.C.B.
Follow the item 10.3.
(Step1)
Remove the headphone jack mounting nuts ×2 (refer to [Fig. 10] ).
(Step2)
Remove the ground wire holding screw (refer to [Fig. 10] ).
(Step2)
Remove the HP P.C.B. mounting screws ×2 (refer to [Fig. 10] ).

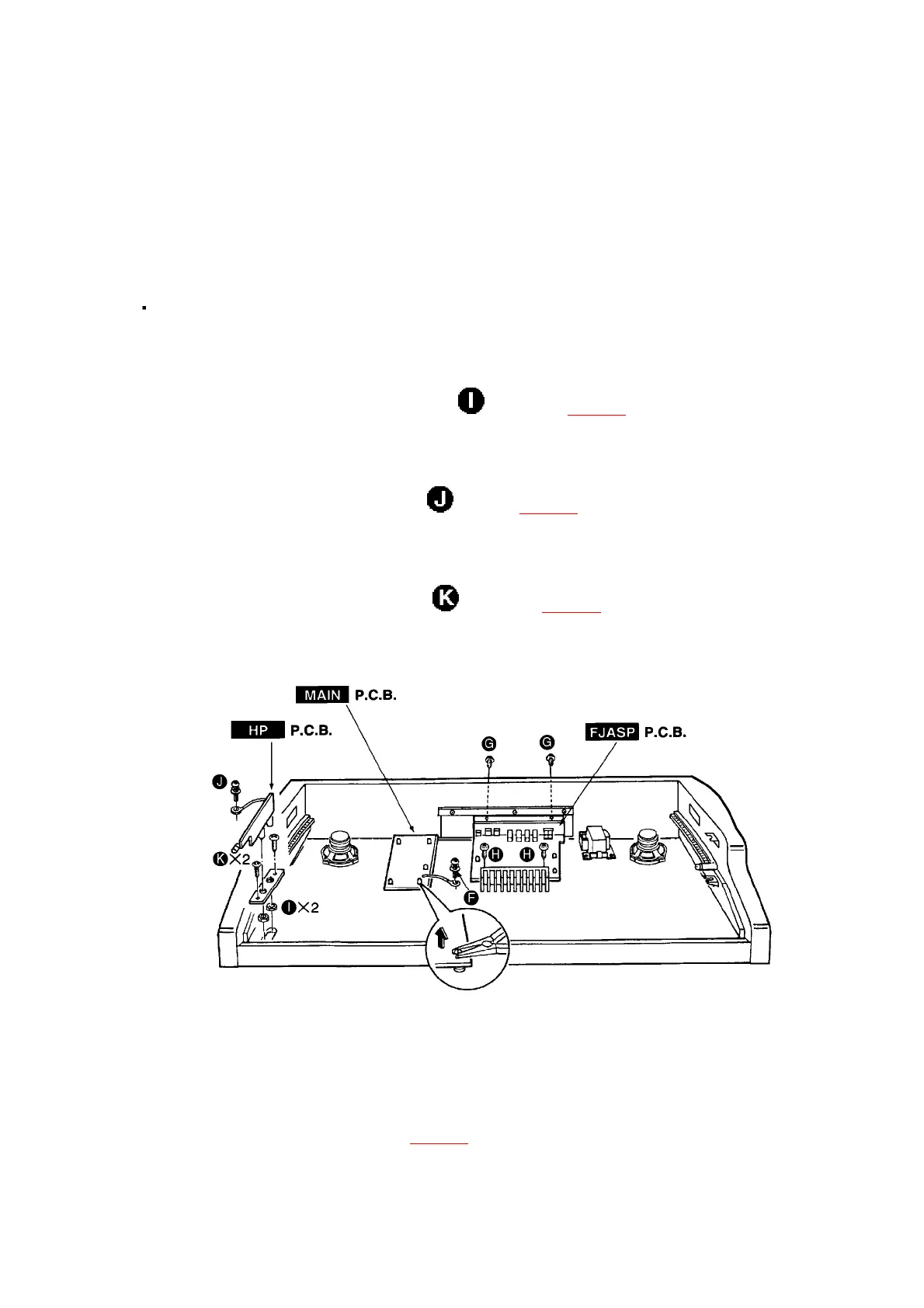

[Fig. 10]
10.7.2. Removing CPL and CPR P.C.B.
- Follow the item 10.2.
- CPL P.C.B.
(Step1)
Pull the MAIN VOLUME knob (refer to [Fig. 11] ).
11
