(Step2)
Insert the plate spring into the hammer notch (refer to [Fig. 7] ).
(Step3)
While slowly lowering the key into the chassis, insert the plate spring into the notch at the rear of
the key (refer to [Fig. 7] ).
(Step4)
Carefully insert the key into the opening in the chassis and slide the key towards the rear to lock
it in place (refer to [Fig. 7] ).

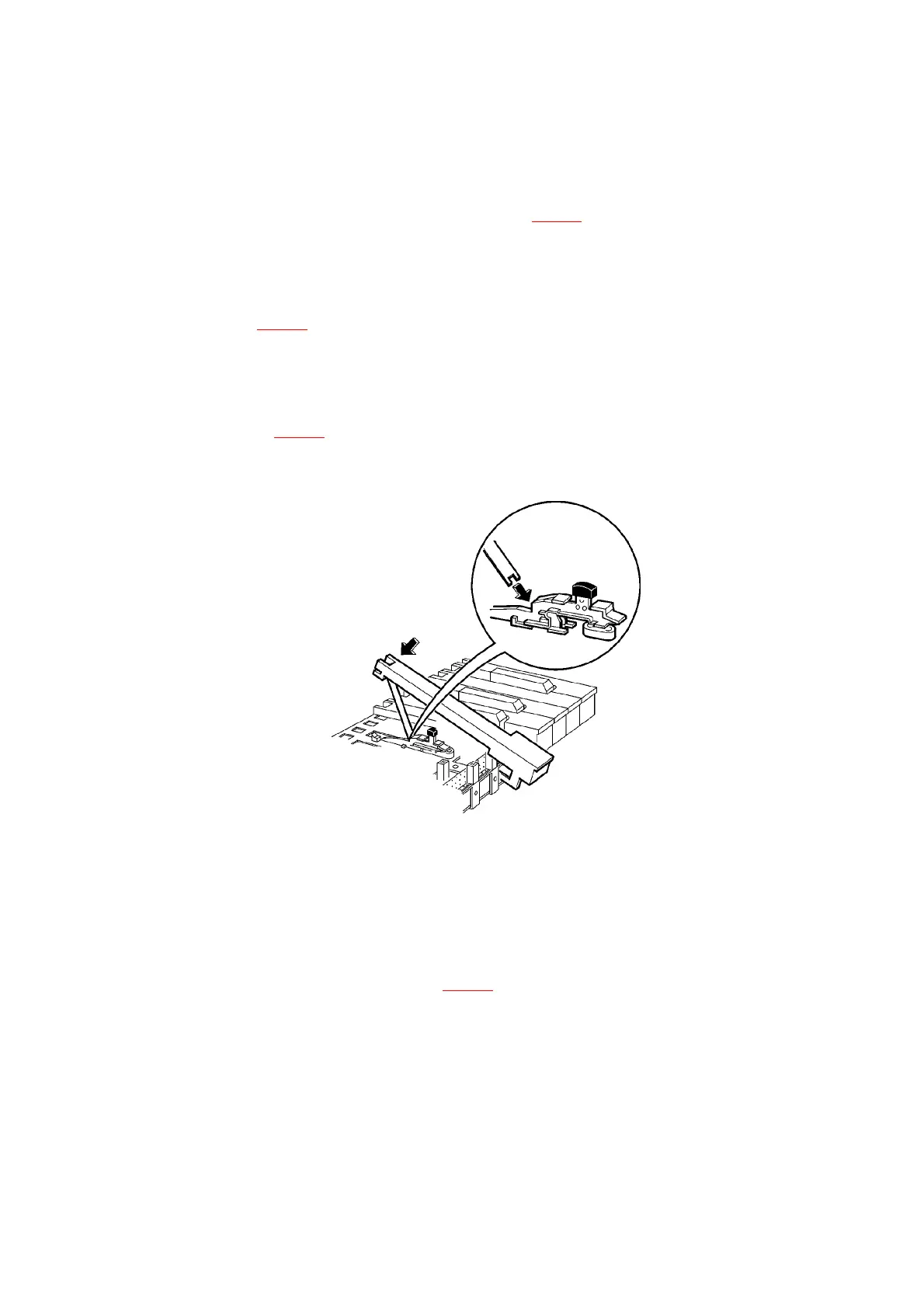

[Fig. 7]
10.5. Disassembly of the pedal assembly
(Step1)
Remove the pedal assembly from the pedal box.
(Step2)
Disassemble the pedal assembly (refer to [Fig. 8] ).
[Fig. 8]
