Technika Freeview STBHDIS2010 User Manual

7

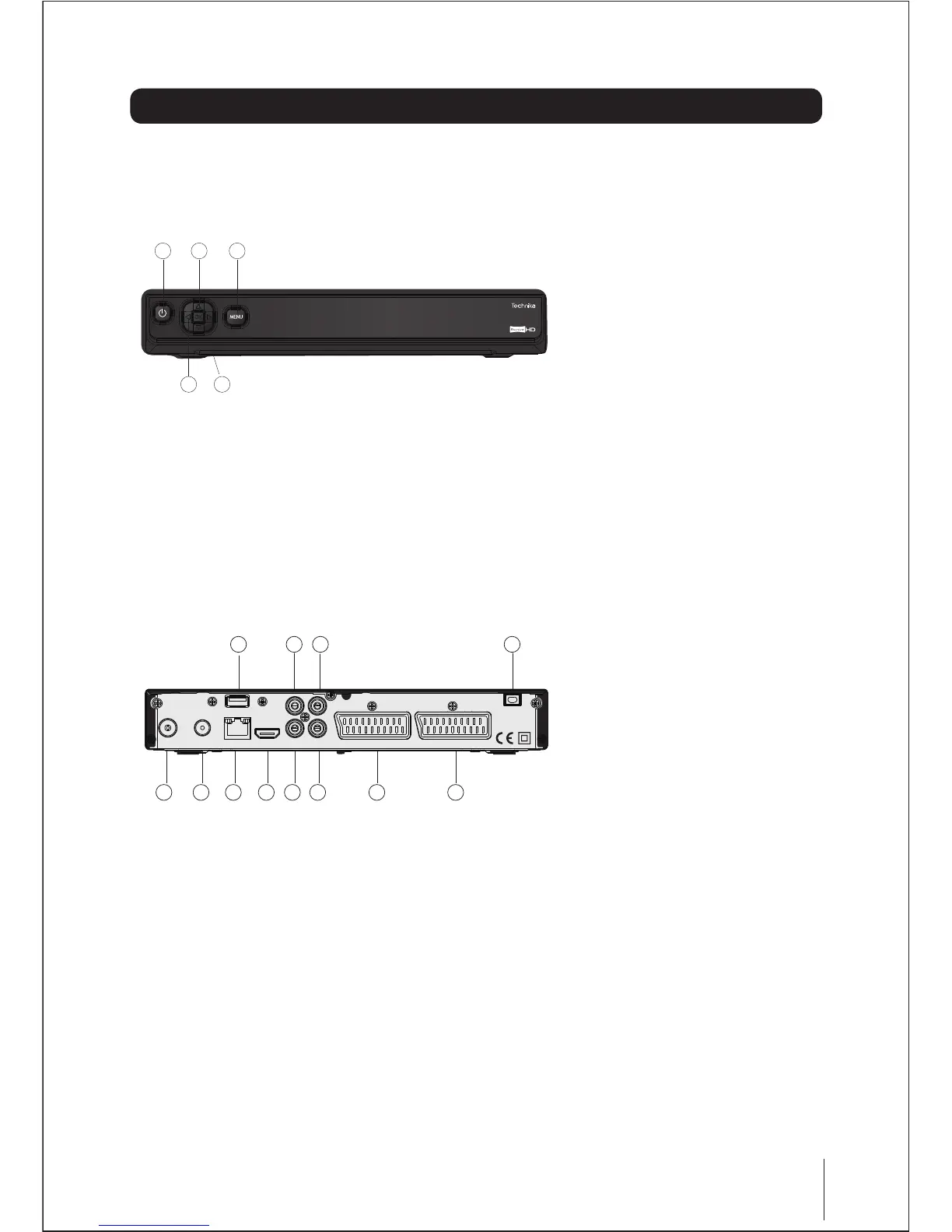

Parts identication
1. STANDBY Power On/Standby.
2. Channel up / channel down
3. Volume up / volume down
4. OK Confirm selection in menu/on screen displays.
5. MENU Open the menu so that you can change the settings of your Digital Box
1. Connect to RF in
2. Connect to RF out
3. ETHERNET- for future interactivity
4. USB- for future interactivity
5. HDMI output (High Definition
Multimedia Interface)
6. Composite video
7. Coaxial Digital audio
8. Right Audio Out
9. Left Audio Out
10. TV Scart: connect to TV
11. VCR Scart: connect to a VCR or a DVD Recorder
12.
Power lead
1 2 5
3 4
RF IN RF OUT
ETHERNET HDMI
SPDIF
TV VCR
L
R
VIDEO
USB
1
4 7 8 12
2 3 5 6 9 10 11
Front Panel
Rear Panel
AC 110-240V~,
50/60Hz, 9W
