TechniSat DIGIPLUS UHD S User Manual

137
DE
EN

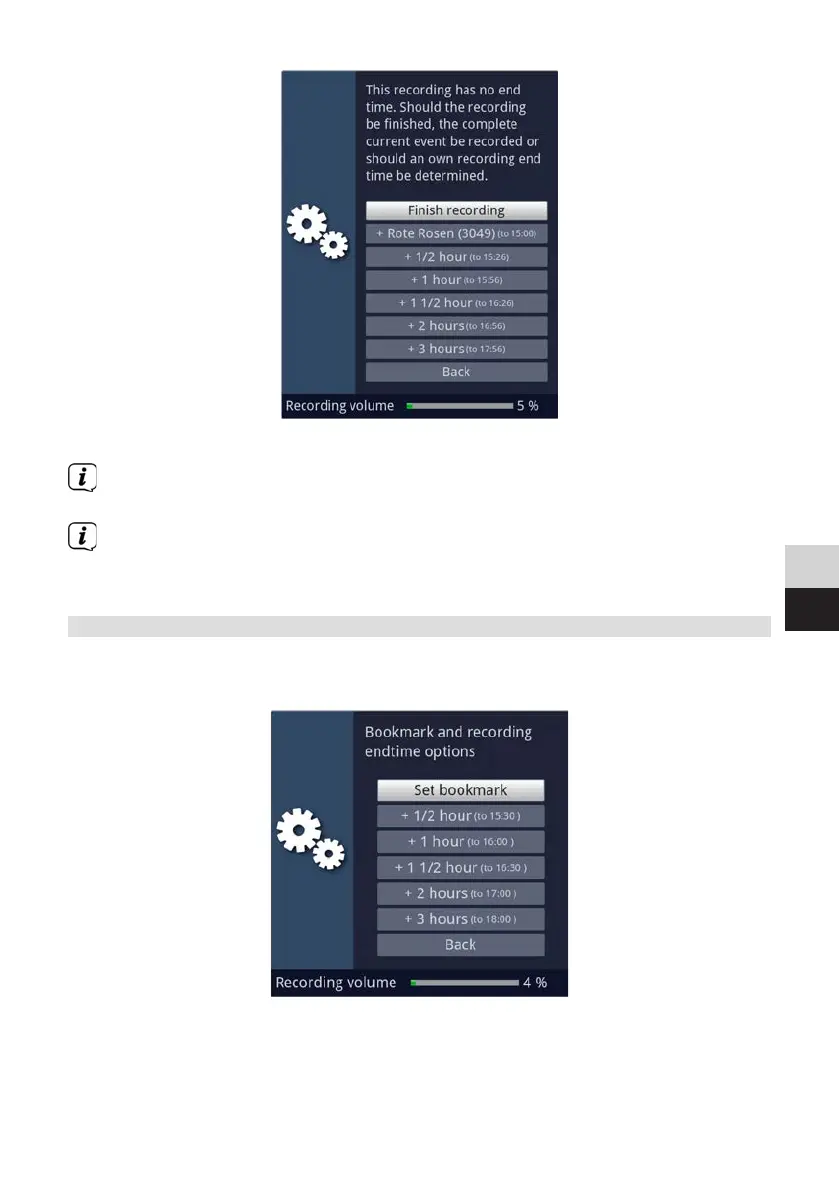

> Select the line with the desired action.
If you select End recording, a query appears as to what should be done with
the recording.
If you have selected the programme title or one of the specified times, the
device now records the whole of the current programme, or records it up to
the selected time, and then switches to Standby.
Option 2
> Pressing the Record buon causes a window to open containing all available
functions.
> You can, for example, select +1 hour, whereby the device will continue to
record the channel for this period and then automatically stop recording.

TechniSat DIGIPLUS UHD S Specifications

General

Certification	CE
Package depth	195 mm
Package width	310 mm
Package height	80 mm
Package weight	1350 g
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 75 %
Timer	Yes
Tuner type	Digital
Demodulation	8PSK, QPSK
Product color	Black
Interactive TV	-
Frequency range	950 - 2150 MHz
Number of tuners	2 tuner(s)
Audio output channels	- channels
On Screen Display (OSD) languages	CZE, DEU, DUT, ENG, ESP, FRE, GRE, HUN, ITA, POL, POR, RUS, SWE, TUR
Digital Satellite Equipment Control (DiSEqC)	1.0, 1.2
Signal source	Satellite
Supported video modes	576i, 576p, 720p, 1080i, 1080p, 2160p
Digital signal format system	DVB-S, DVB-S2
Audio formats supported	AAC, AIFF, FLAC, M4A, MP2, MP3, WAV
Image formats supported	BMP, GIF, JPEG, PNG
Video formats supported	ASF, AVI, M2TS, MKV, MOV, MP4, MPG, MTS, TS, TS4, VOB
Video compression formats	AVC, H.264, H.265, HEVC, MPEG1, MPEG2
Display type	LCD
Ethernet LAN data rates	1000 Mbit/s
AC input voltage	230 V
Power consumption	400 mA
AC input frequency	50 Hz
Power consumption (standby)	0.4 W
Power consumption (typical)	17.1 W
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Built-in HDD	No

Weight and Dimensions

Depth	175 mm
Width	220 mm
Height	40 mm
Weight	668 g
