1 Infrared receiver
2
OLED display
3
Telescopic antenna (rear, extendable and removable)
4
Speaker
5
Headphone connection (3,5 mm jack)
6 VOL / STANDBY rotary knob
7
CD insert (Slot-In)
8
Playback buons:
Previous track
Stop
Play / Pause
Next track
9 Function keys:
MODE Select source/Switch mode
MENU Call up main menu
FAV Favourites memory slots
Back Cancel selection, exit menu, step back
10 One-touch buons
11 SELECT / SNOOZE rotary knob
12
CD eject buon (Eject)
13 Service port
14 Antenna connection (F connector)
15 USB port (with charging function for external devices, 1 A).
16
AUX-In (3,5 mm jack)
17 Mains unit connection/power supply DC 12 V, 3 A

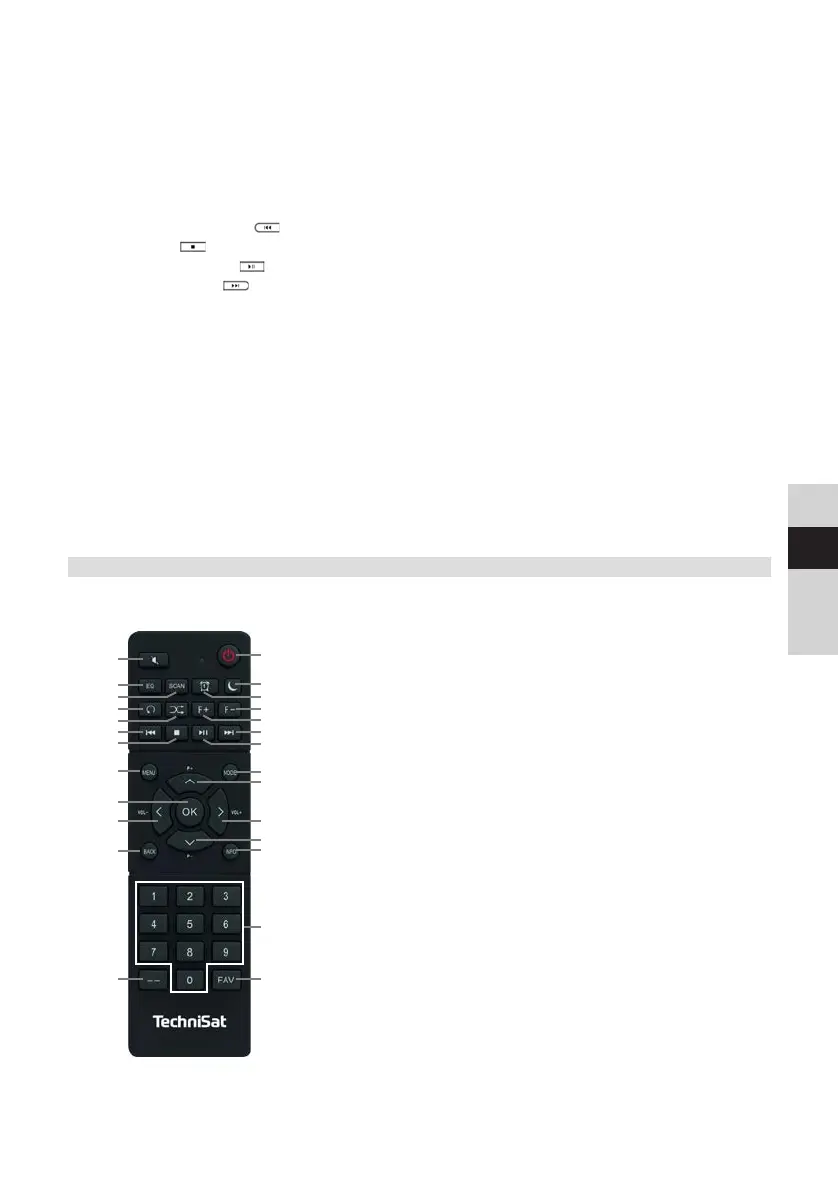

1.3 Remote control
30
31
32
33
34
35
36
37
38
39
40
41
42
43
29
28
27
26
25
24
23
22
21
20
19
18
18 Mute
19 Equaliser
20 SCAN
21 Repeat
22 Random play
23 Previous track
24 Stop
25 MENU
26 OK / Selection
27 Volume - /
28 BACK
29 Entering numbers
30 On/Standby
31 Sleep timer
32 Alarm 1/2
33 Folder -
34 Folder +
35 Next track
36 Play / Pause
37 Mode/Source
38 Channel +/
39
Volume + /
40 Channel -/
41 INFO
42 Number keys
43 FAV memory
