TechniSat TECHNISTAR S6 User Manual

7
EN

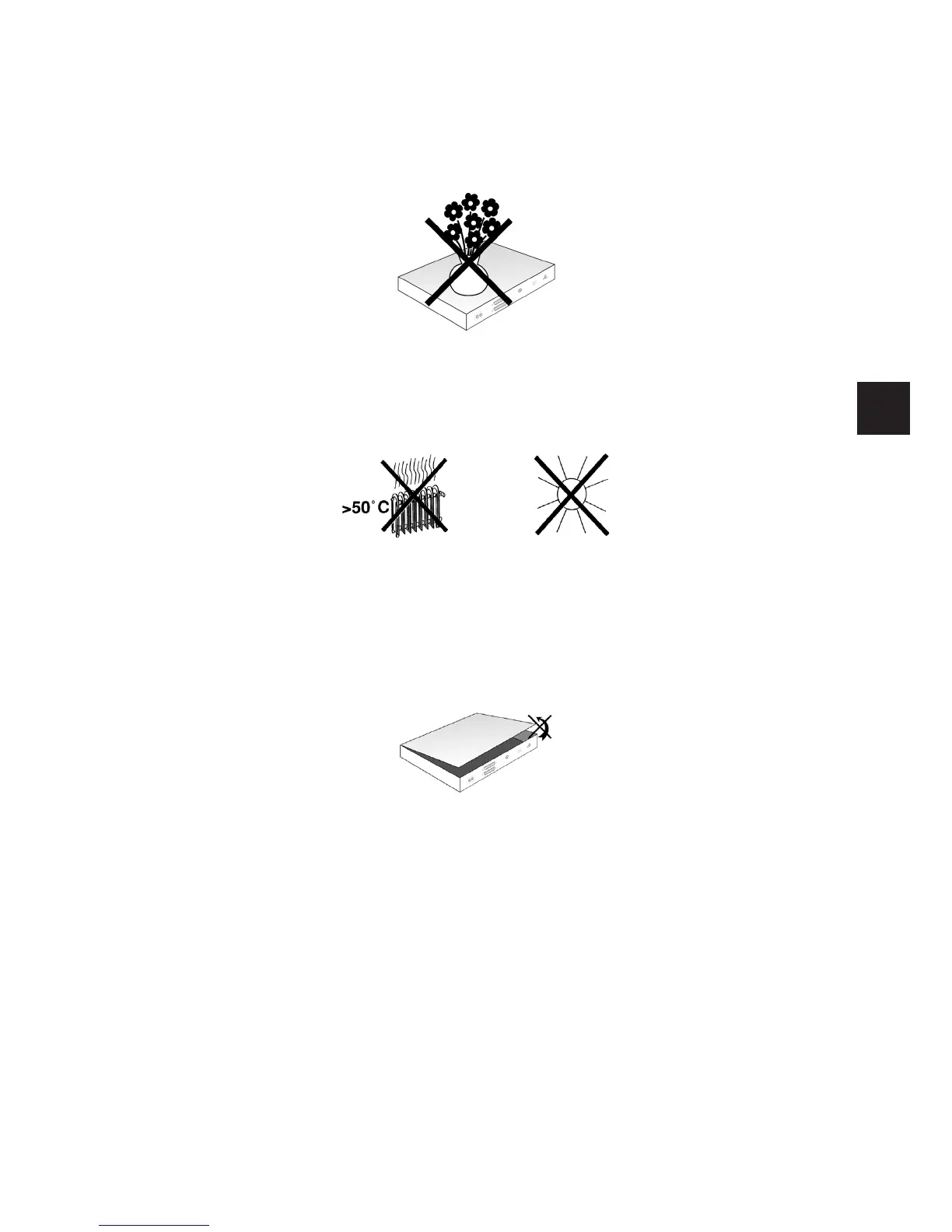

- Do not expose the device to water droplets or water spray, and do not place
any objects filled with liquid, such as vases, on top of it. If water gets into
the unit, immediately disconnect the mains plug and inform the service
department.
- Do not operate sources of heat near the device that can additionally heat it
up.
- Do not obstruct the ventilation slots with any objects.
- Never open the device! You risk receiving an electric shock. Any necessary
repairs to the receiver should only be carried out by qualified service
personnel.
In the following circumstances, you should disconnect the device from the mains
power and consult an expert:
> the power cable or mains plug is damaged
> the device has been exposed to moisture or liquid has got into it
> there are significant malfunctions
> there is severe external damage.

TechniSat TECHNISTAR S6 Specifications

General

Signal source	Ethernet (RJ-45), Satellite
Supported video modes	576i, 576p, 720p, 1080i, 1080p
Digital signal format system	DVB-S, DVB-S2
Personal Video Recorder (PVR) included	-
Tuner type	Digital
Product color	Black
Number of tuners	1 tuner(s)
Audio output channels	- channels
On Screen Display (OSD)	Yes
Audio formats supported	AAC, AC3, AIFF, FLAC, MP2, MP3, OGG, WAV
Image formats supported	BMP, GIF, JPEG, PNG, TIFF
Video formats supported	ASF, AVI, M2TS, M4V, MKV, MOV, MP4, MPG, TS, TS4, XVID
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100 Mbit/s
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	4.8 W
Package weight	1240 g

Weight and Dimensions

Depth	177 mm
Width	220 mm
Height	45 mm
Weight	600 g
