SKILLRUN (DJJ) Pre-Installation Requirements
Rev. 2.0
- 17 -
4.5 POSITIONING OF POWER SUPPLY SOCKET AND
LAYOUT OF CABLES
In the SKILLRUN, It is mandatory to correctly arrange the cables (TV + LAN + power cord), pre-
venting the cables from being pinched when the belt is moving and the equipment moves with a
gradient. Moreover, the customer should position the power supply socket as detailed below.
WARNING: The rubbing of the cables with the running surface causes the wear of the plastic
/ insulation protection up to create a short circuit: a potentially dangerous condition for the user.

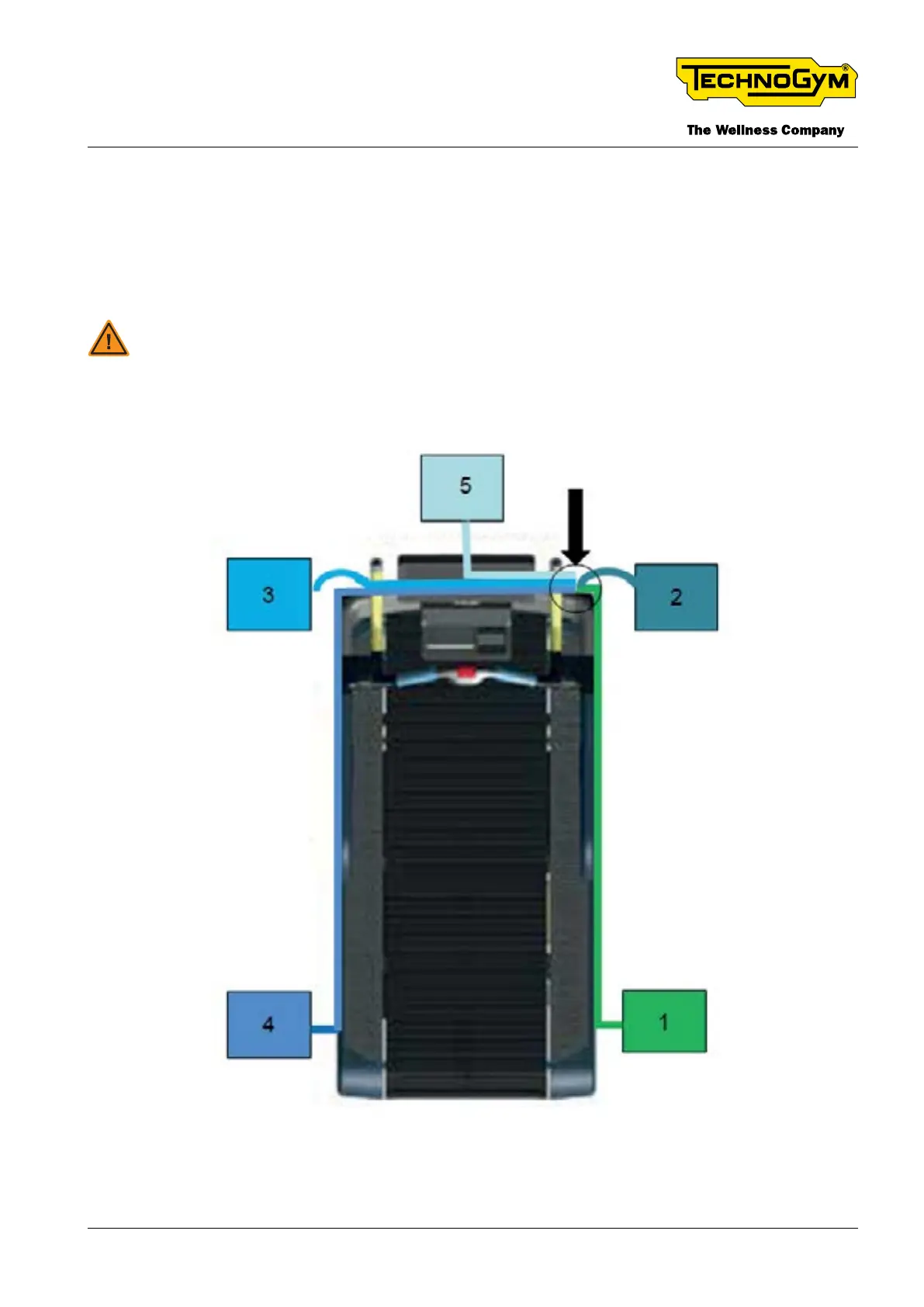

The following gure shows the compliant positioning of power supply socket with respect to the
equipment and the relative layout of cables (TV + LAN + power cord).
Fig. 7 - Position of power supply socket and cables layout
