SKILLRUN (DJJ) Pre-Installation Requirements
Rev. 2.0
- 19 -

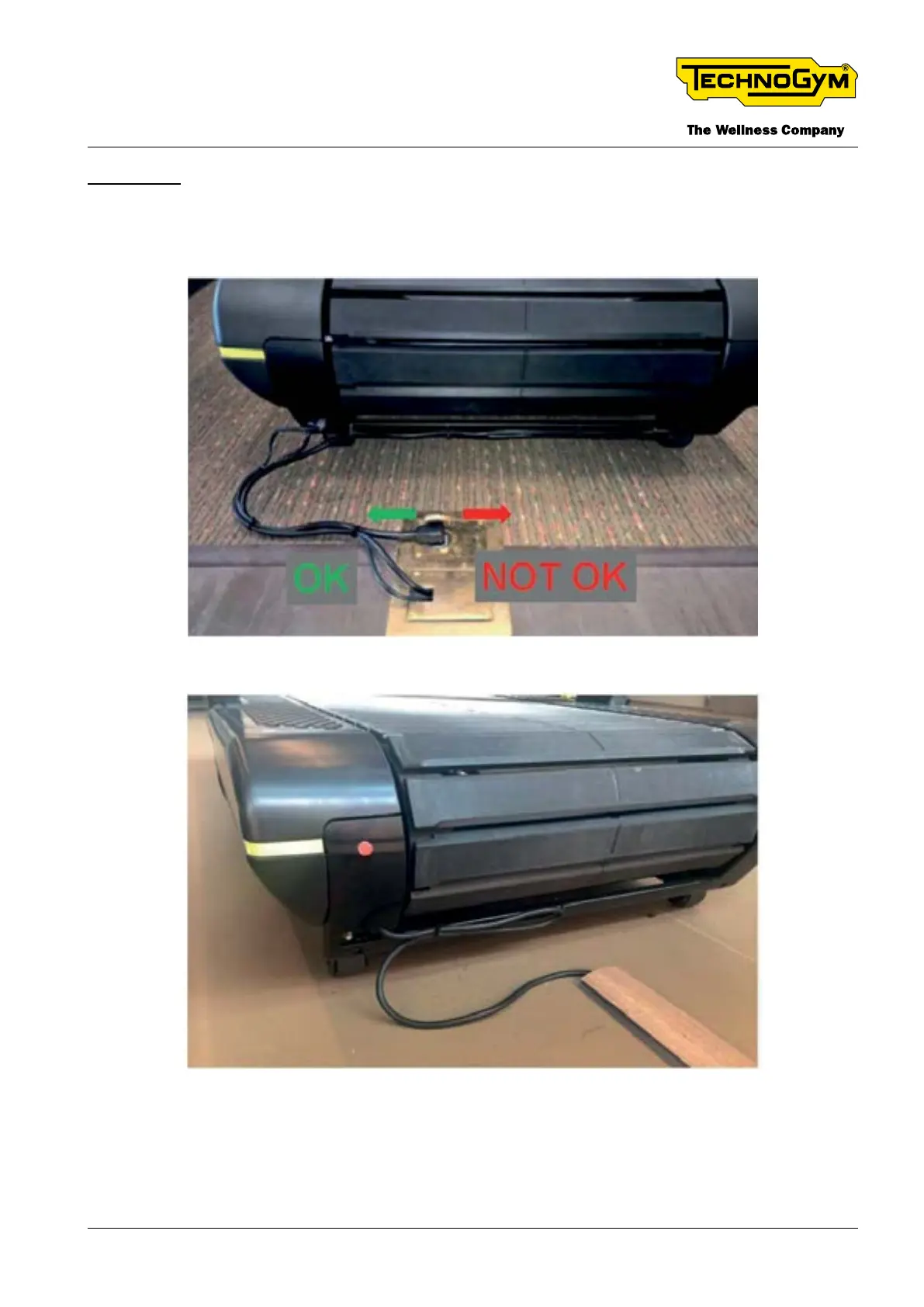

LAYOUT 5:
The following gure doesn’t show a sheath for cables but Its use is recommended (to be provided
by the customer). The cable must follow the following path. If this is not possible, it’s required to
reverse the socket (case of American plug) (to be provided by the customer).
Fig. 10 - Layout 5 OK but the use of a cable sheath is recommended
Fig. 11 - Layout 5 OK but the use of a cable sheath is recommended
