1.3.3 Assembly

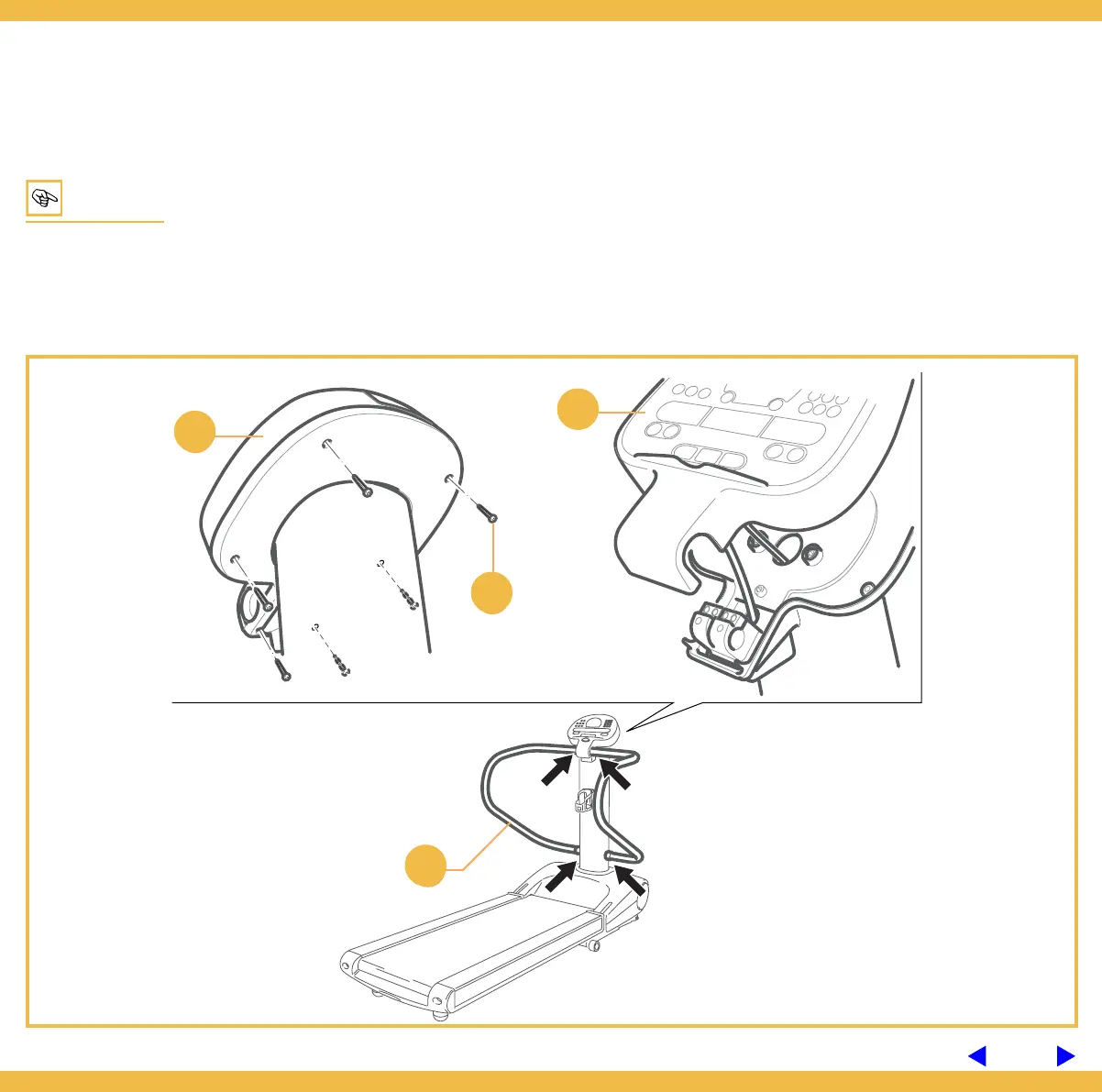

To assemble the side grips (A) firstly disassemble the control panel (B).
Unscrew the six screws (C) behind the control panel and raise the top part of the panel.
Warning
Be careful not to pull or disconnect the connected cables.
Fit the grip pins in the corresponding holes in the riser, two near the guard, at the bottom, and two under the
control panel.
