Techroutes TSR 2900-10 User Manual

TSR2900-10 Hardware Installation Manual
- 8

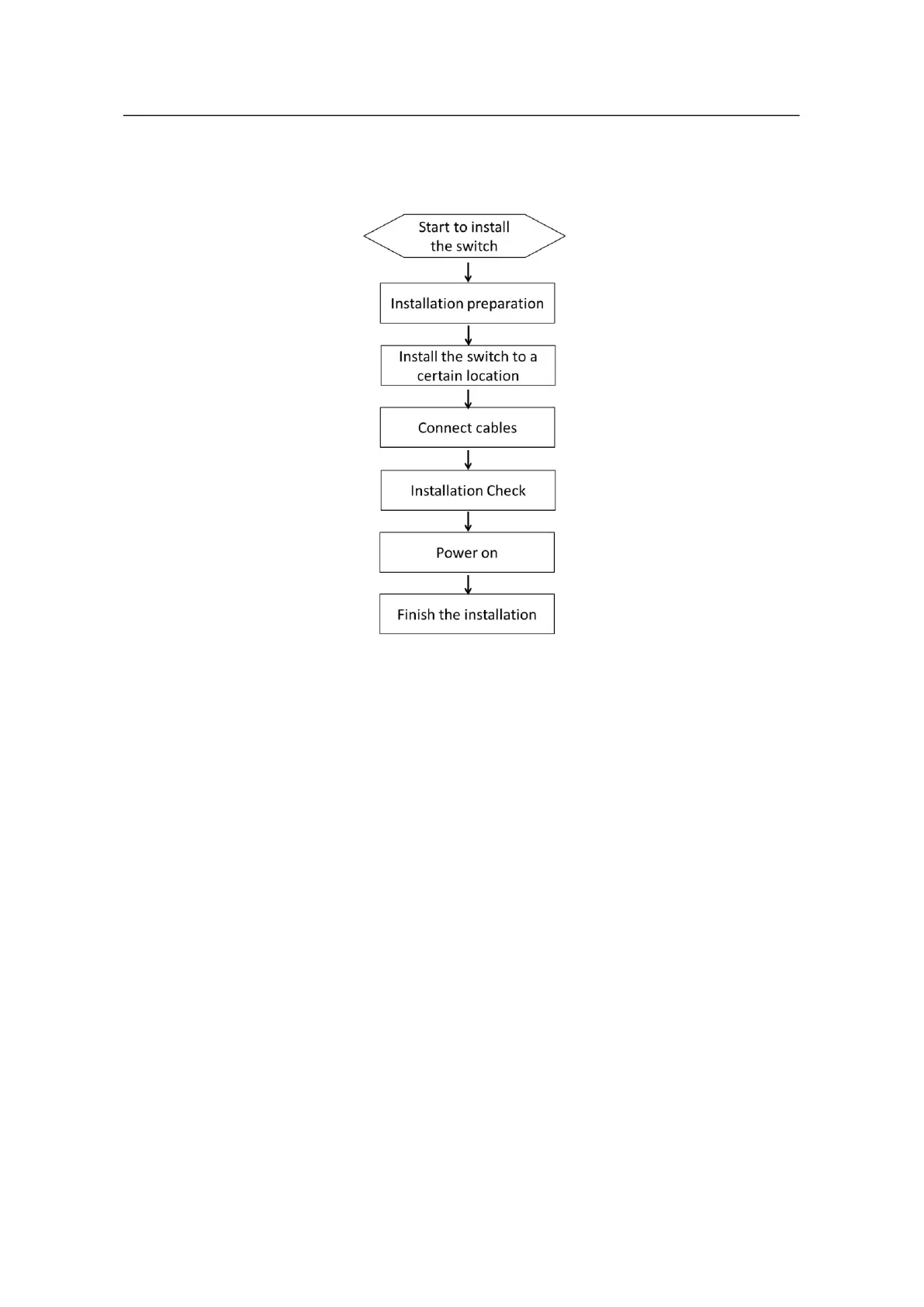

3.1 Installation Flow of TSR2900-10
3.2 Installing the Machine Box of the Router
The installation of the machine box has two modes:
 Installing the machine box on the desk
 Installing the machine box on the cabinet
3.2.1 Installing the Machine Box on the Desk
The TSR2900-10 router can be directly put on the smooth and safe desk.
Note：
Do not put things weighing 4.5 kg or over 4.5 kg on the top of the router.
3.2.2 Installing the Machine Box on the Cabinet
The machine box of the router is fixed on the cabinet through the brackets. When
you fix the brackets, the front template of the router faces forward. The detailed
operations are shown in Figure 3-1:
After the brackets are installed, install the router on the cabinet.
r
o
u
t
e
r
r
o
u
t
e
r
t
o
a
l
o
c
a
t
i
o
n
