Chapter 1 Introduction to TSR2900-10
This section describes the characteristics and parameters of TSR2900-10 and gives an overview
of TSR2900-10.
1.1 Appearance Description for Standard Configuration
The built-in ports of TSR2900-10 are: 8 10/100/1000M Ethernet RJ45 LAN ports, 2
10/100/1000M Ethernet RJ45 WAN ports, 2 Combo ports (WAN), 1 Console port, 1 USB
port. See table 1-1
Port
Attribute
10/100/1000M
Ethernet RJ45
LAN port
10/100/1000M self-adaptive; UTP (RJ45) port: Link/ACT indicators
10/100/1000M
Ethernet
RJ45
WAN port
10/100/1000M self-adaptive; UTP (RJ45) port: Link/ACT indicators
2 Combo ports
(WAN)
Multiplexing
Base-T port: 10/100/1000M self-adaptive, UTP (RJ45) port
SFP: 100/1000M Link/ACT indicators
Console port
A rate of 9600bps, RJ45 port, no indicator
USB port
USB2.0 port

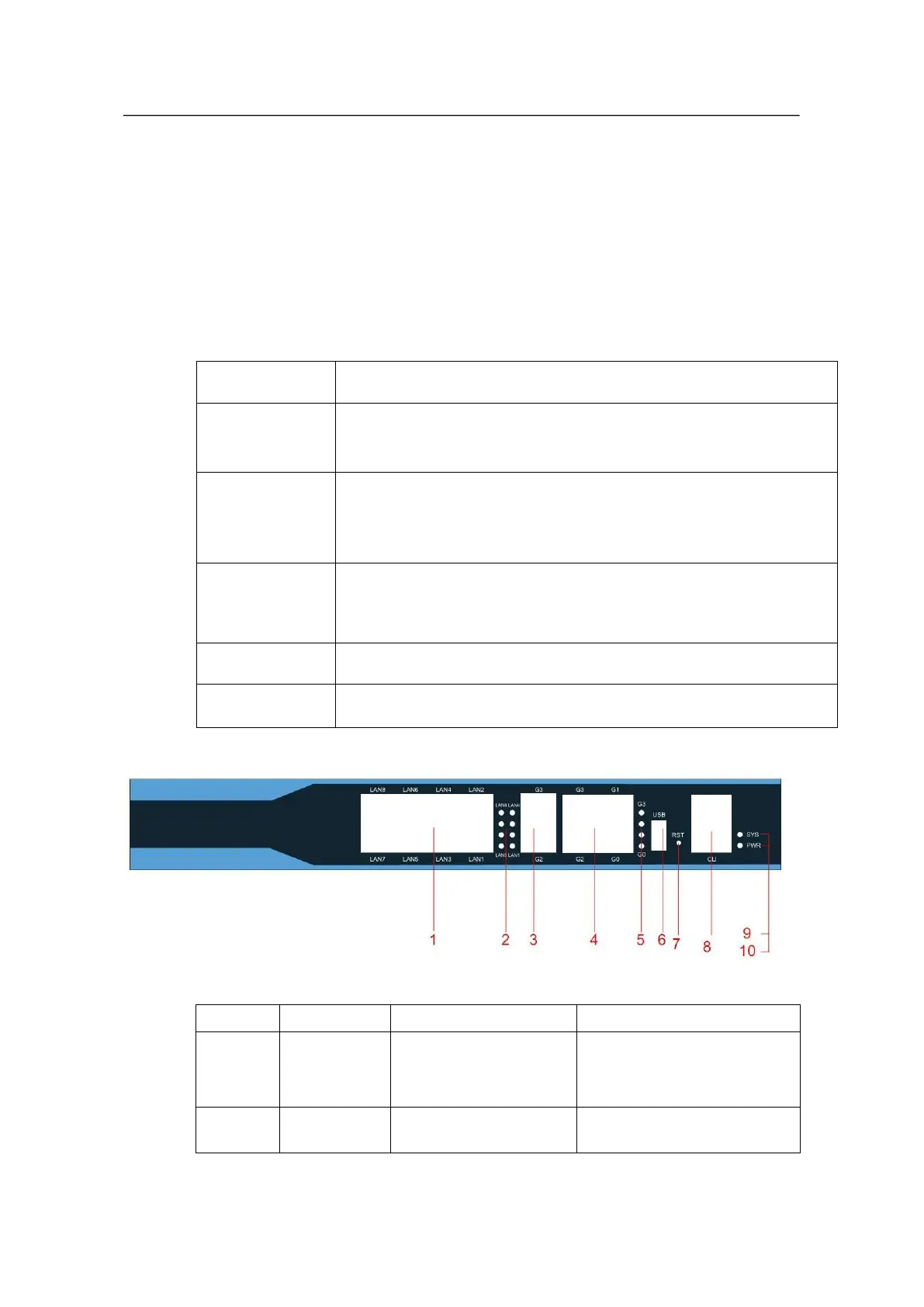

Front template:
Description
No.
Abbrev
Name
Description
1
LAN1~LAN8
Gigabit Ethernet Base-T
port
Gigabit Ethernet Base-T port
(LAN), for communication over
10M/100M/1000M Ethernet
Base-T ports
2
LAN1~LAN8
Indicators of Base-T ports
If the indicator is on, LINK works;
If the indicator flickers, data is
