TSR2900-10 Hardware Installation Manual
- 14
Perform the following steps to open the cover of the router:
(1) Turn off the power on-off of the router.
(2) Plug out all cables connected the back of the router.
(3) Take out the bolt from the machine box with the screwdriver.
Note：
The machine box comprises of two parts: cover and bottom.

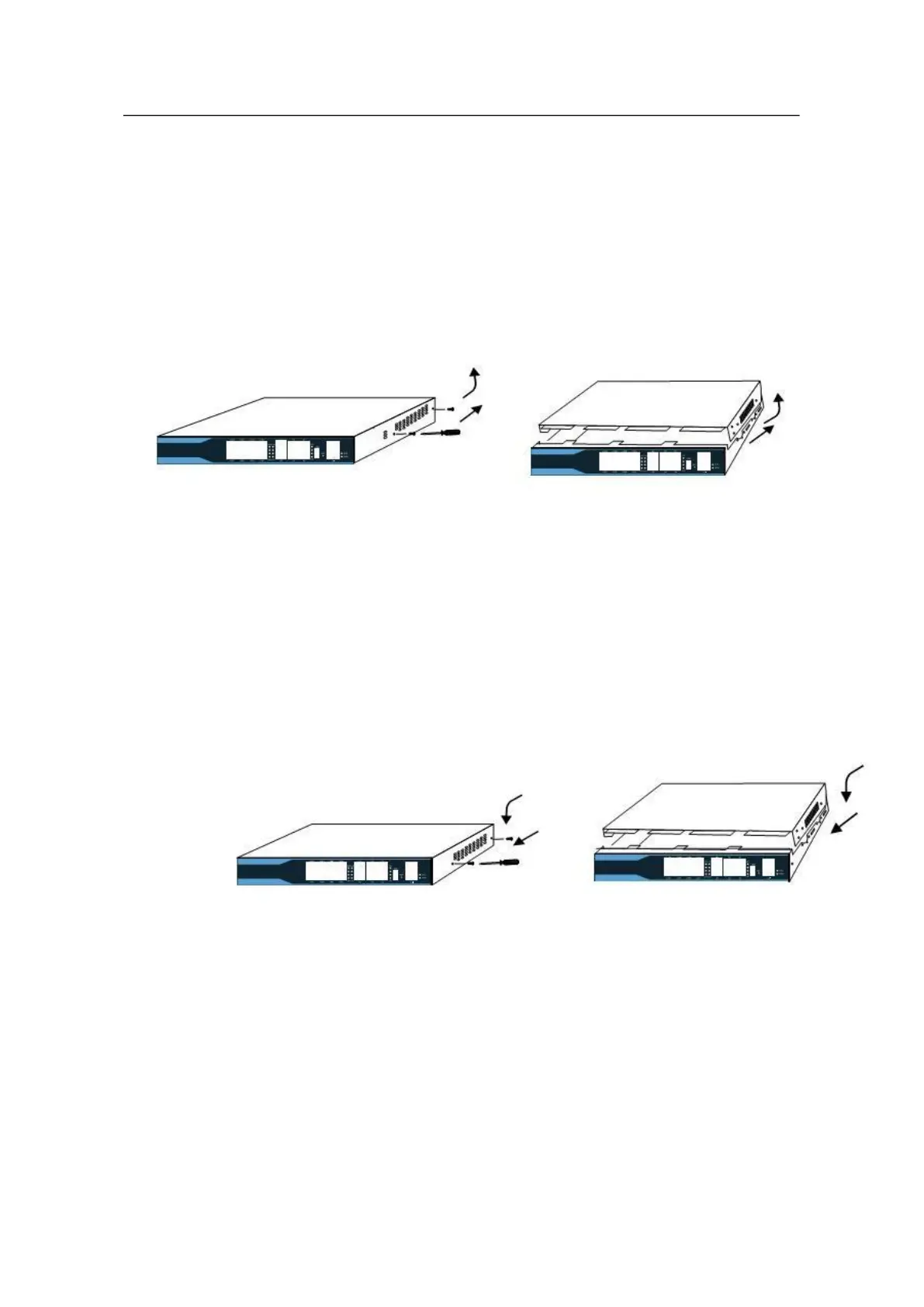

(4) Open the cover by holding two sides of the cover towards the direction of the
arrow key shown in the following figure:
Attention：
After taking off the cover, put it horizontally and avoid it to be crushed or collided.
Otherwise, the machine box is hard to install.
4.2 Closing the Machine Box
The section mainly describes how to put the cover and close the machine box. Do
as follows:
(1) Put them well according to their locations and joint them together along their
sides. See the following figure.
(2) When the cover and the bottom are closely tied, let the cover slide the slot of
the front template at the bottom.
(3) Nail the bolt and screw it tightly with the screwdriver.
(4) Reinstall the router on the cabinet or the desk.
(5) Reconnect all cables of the router.
