TSR2900-10 Hardware Installation Manual
- 10

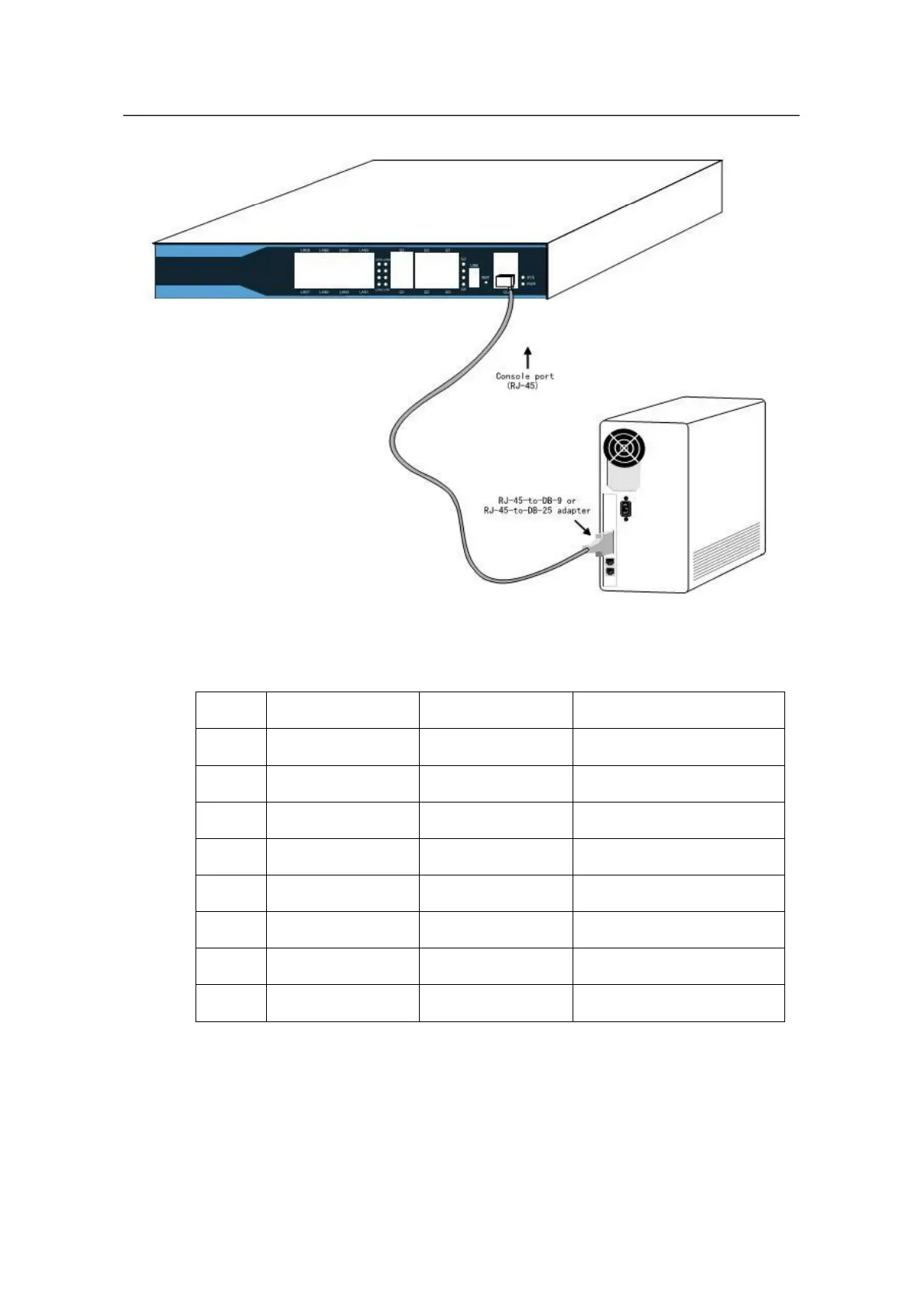

Definition of the pins of the Console port
No.
Name
Abbrev.
Remark
1
None
2
None
3
Send data
TXD
Output
4
None
5
Signal ground
GND
GND
6
Receive data
RXD
Input
7
None
8
None
The cable is used to connect TSR2900-10 Console port with other terminal devices.
