Tecnam P92 Eaglet - Page 12

P92 Eaglet
Flight Manual
Revision Date: 12-14-2007
Revision Number: 1.00
Doc n° 27-13-100-00
12

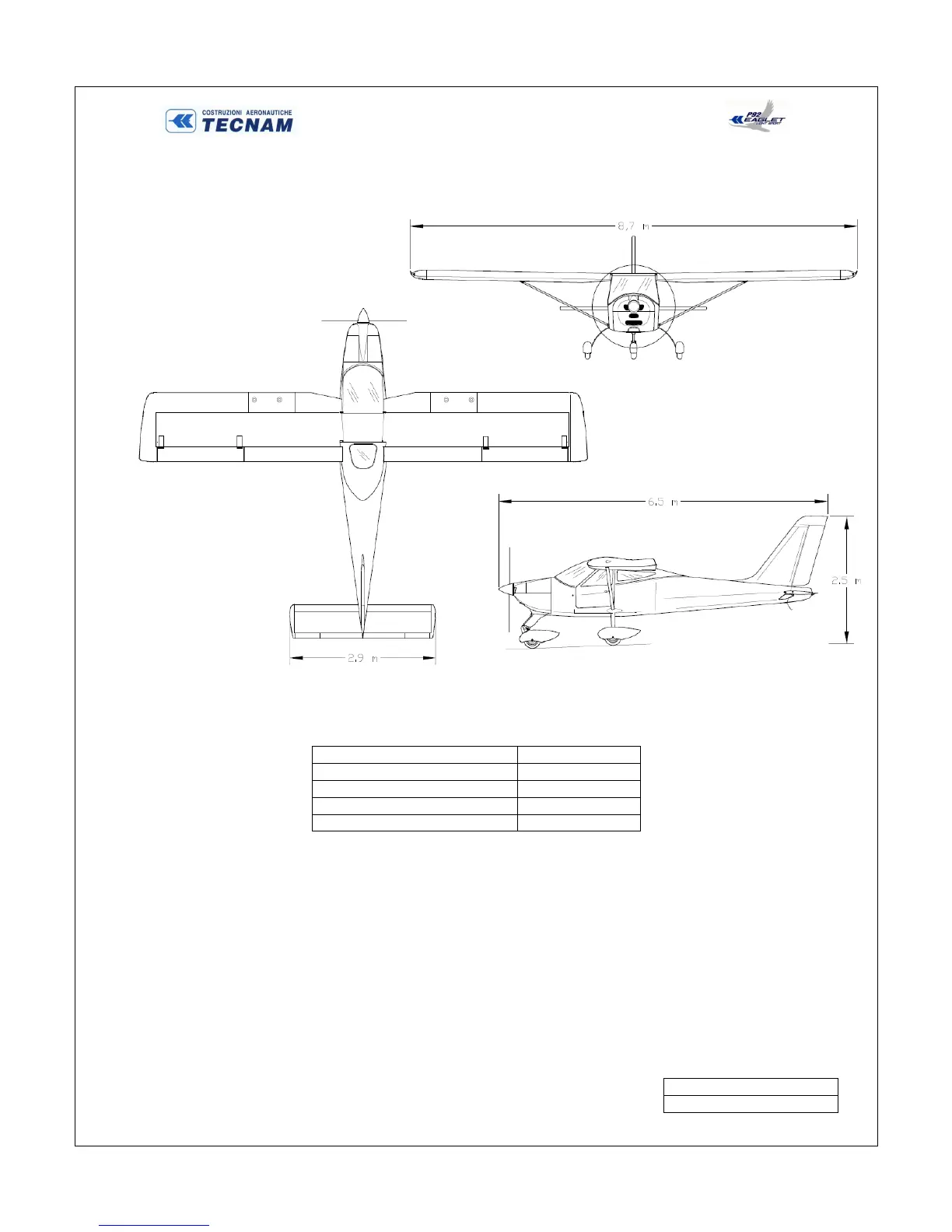

THREE VIEW DRAWING
Figure 1-1 General Views
Wing Span 8.7m (28.5’)
Length 6.5m (21,3’)
Tail height 2.5m (8.2’)
Propeller ground clearance 320mm (12.6”)
Minimum ground steering radius 5.5m (18’)
NOTE
• Dimensions shown refer to aircraft weight of 600 kg (1320 lbs) and normal operating tire pressure
