1.9.10.3 Tail Strobe Light
The strobe light is installed on top of the vertical stabilizer.
Strobe light is activated by a switch and is protected by a fuse. Switch and fuse are positioned on the instrument panel. The
signal reaches a strobe light trigger circuit box positioned in the tail cone just behind the baggage compartment.
1.10 Pitot and Static Pressure Systems

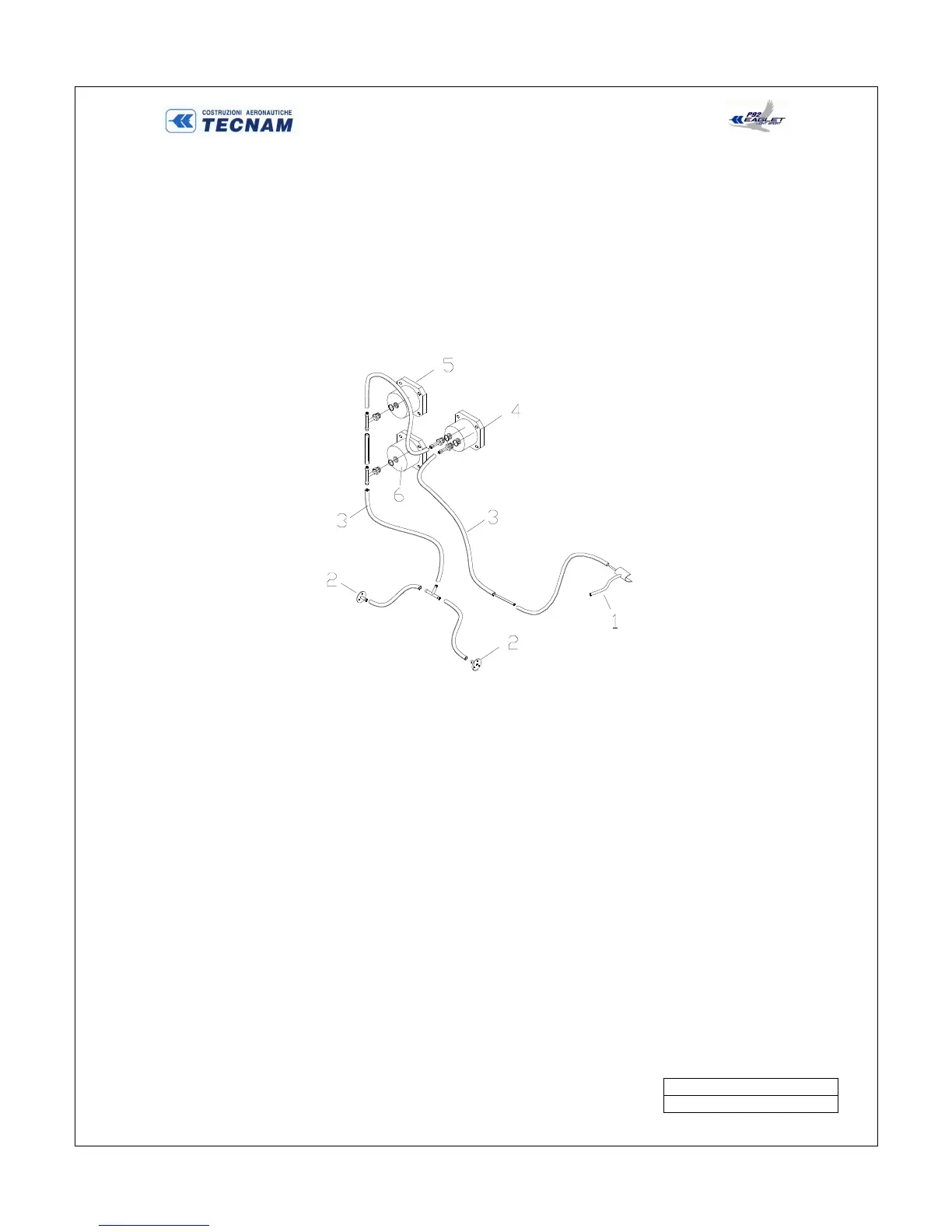

The airspeed indicator system for the aircraft is shown below.
Below the left wing’s leading edge the Pitot tube (1) while on the fuselage’s sides there are two static ports (2). Two
flexible hoses (3) feed the airspeed indicator (4), the altimeter (5) and the VSI (6) on the instrument panel.
Fig.1-5 Pitot Static system
