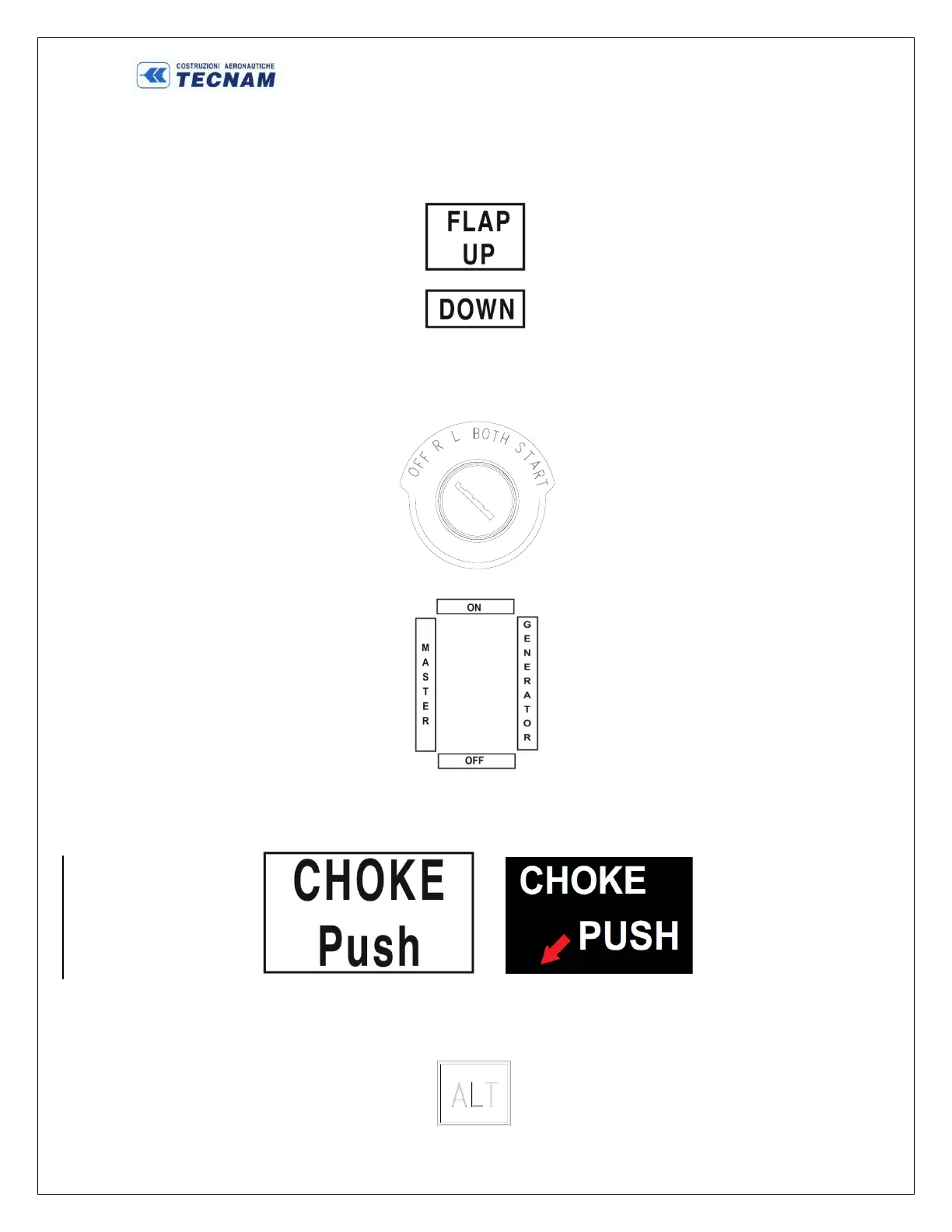

8.1.6 Flaps
The flap control switch is located on the lower portion of the instrument panel. The following placards are just next to it.
8.1.7 Generator, Master, Starter
On the lower left part of the instrument panel are located, in order:
The starter, marked with a placard:
For the generator and master switches:
8.1.8 Choke
Located above the choke lever:
OR
8.1.9 Generator light
A generator warning light is located on the upper/right side of the instrument panel and it is marked with the following label.
