- Altimeter and airspeed indicators (if installed)
The right area holds:
- ELT
- External lights switches: Landing light, Strobe lights, Nav lights
- Breakers panel (on right side)
- Engine instrument: RPM, flap angle, voltimeter, coolant temperature, oil temperature and pressure,
and fuel quantity indicators.
- Avionic Master switch
- Cabin heat knob.

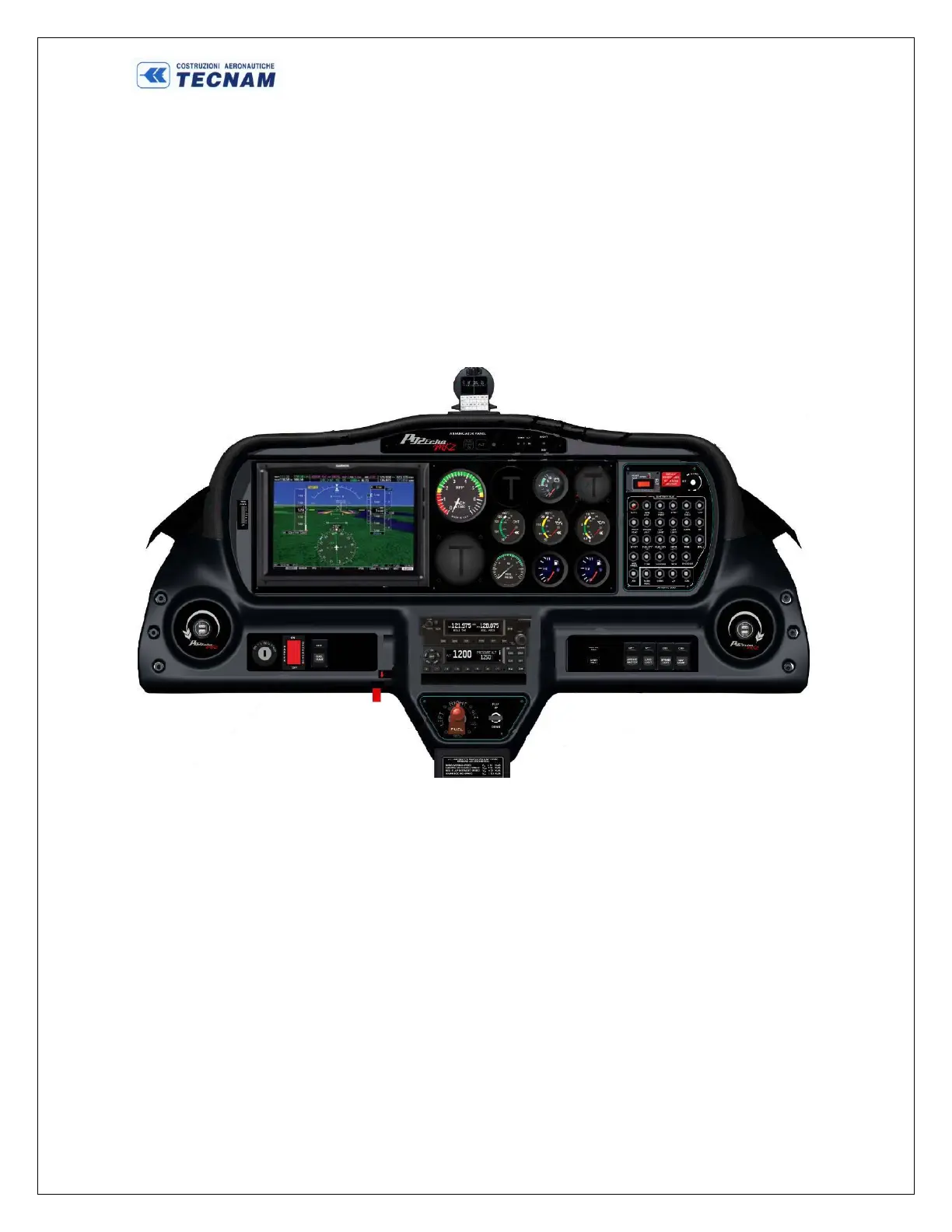

Figure 1 - Instrument Panel
Section 2 - Operating Limitations
Refer to Section 2 of this POH
Section 3 - Weight & Balance
Refer to Section 3 of this POH
