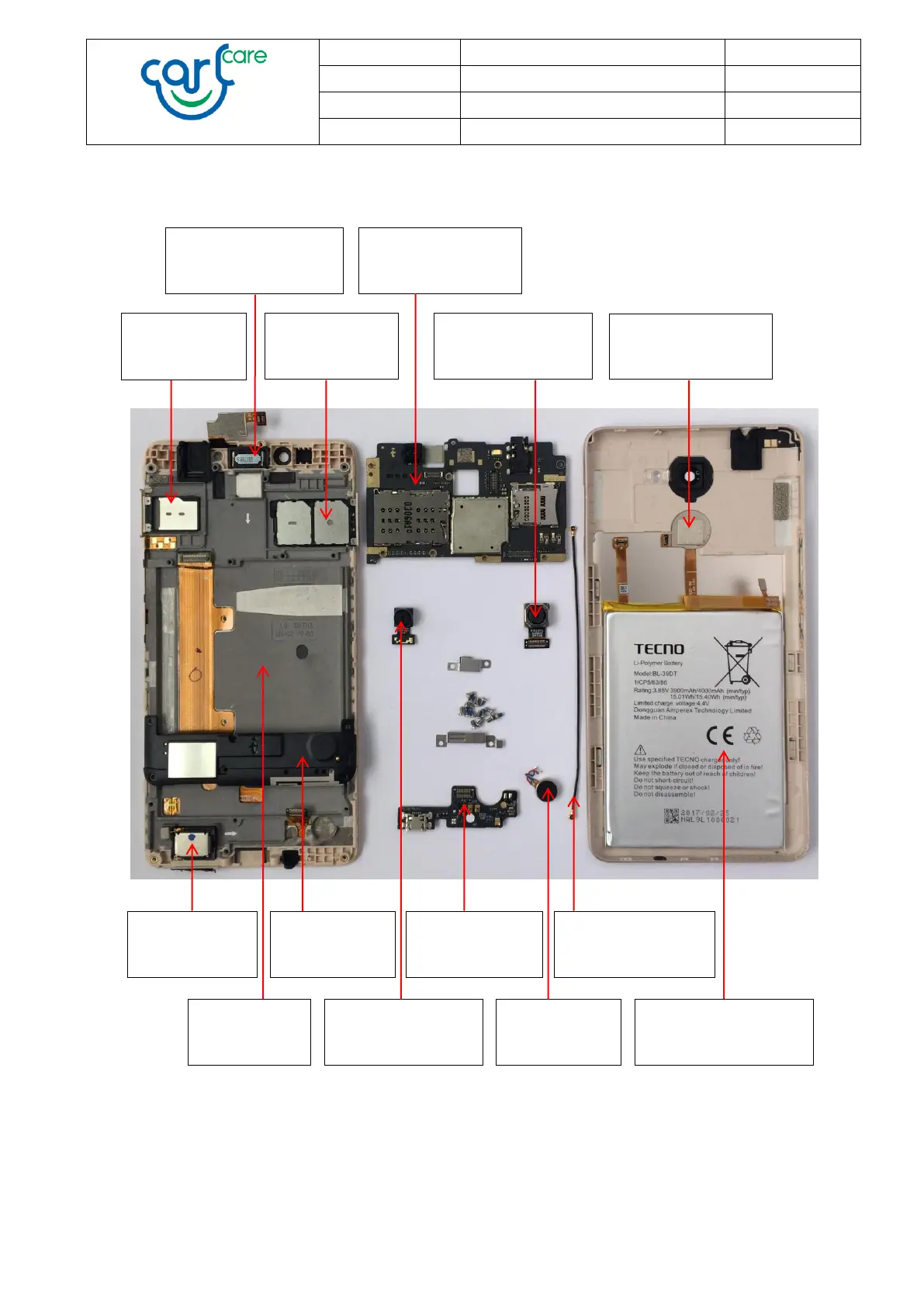

3. EXPLODED VIEW
12102417
PCBA MB H8012
A1 16GB+8Gb V1.3
17201286
CAM 8M 3H7 X557
BACK SUNNY
12102416
PCBA SUB
H8012 1 A V1.3
23501856
ANT assembly
L9 PC black
19501038
REC 1206R H24 H
SPL ROHS 20mW DS
19101074
coaxial cable IV RF
CONN 101.5mm L9
25001221
BAT TECNO BL 39DT
3900mAh ATL IN
19301070
MOT COIN
0827 L12 H LL
19401107
SPK 1115 SPR
H3.0 RoHS HS
12201372
PF uphousing
+ CTP L9 gold
17201355
CAM 5M GC5024
L9 Plus FRONT ST
23501858
SIM card holder
L9 champ gold
23501859
TF card holder
L9 champgold
12201373
PF batterycover+FP
L9 champgold
