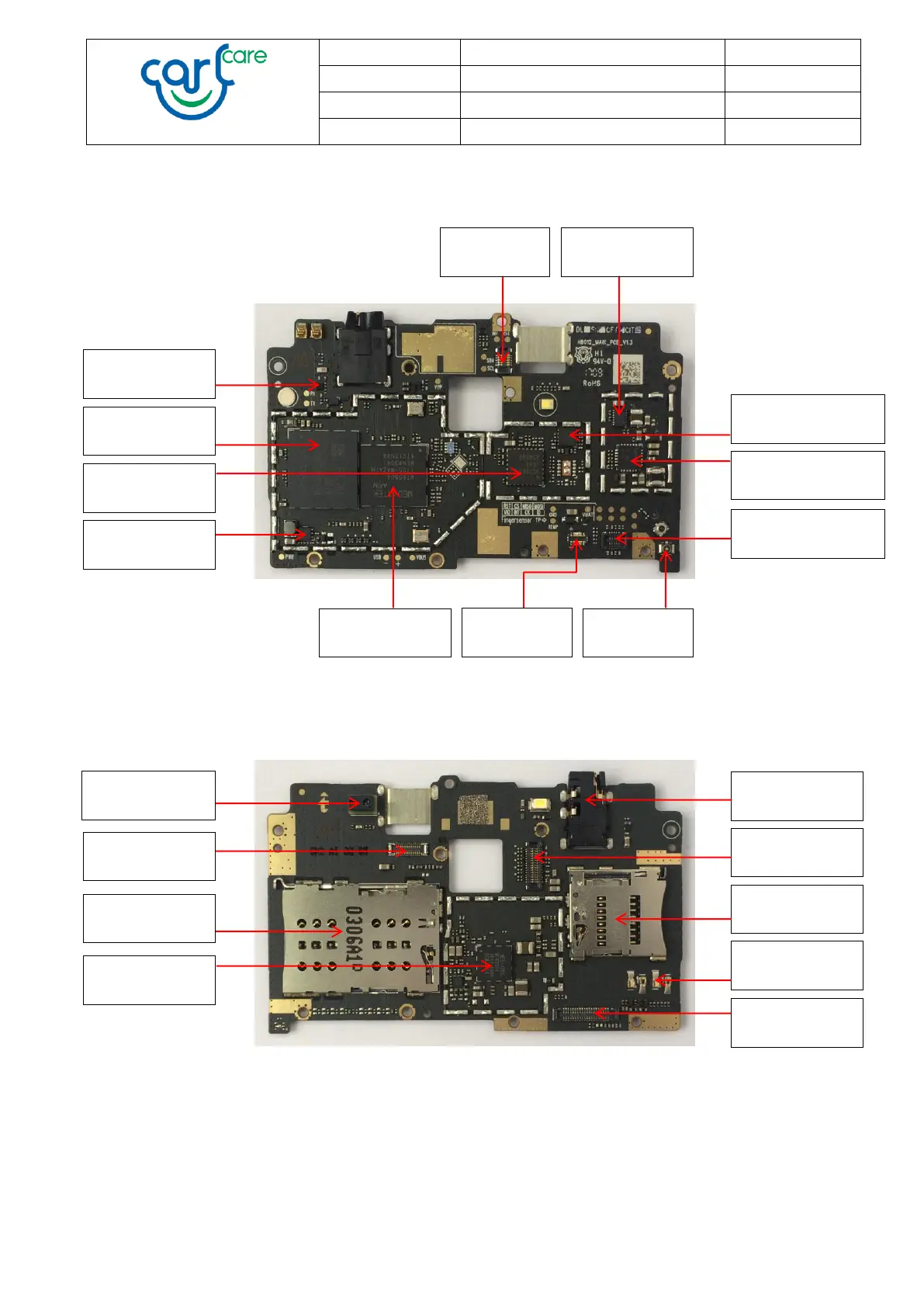

5. PCBA MAINBOARD COMPONENTS
Fingerprint FPC
connector
T card slot
(CN5203)
PMU MT6350
(U2001)
CPU MT6580A
(U1001)
EMMC
(U4001)
Battery
connector
Switching Charger
IC (U3227)
Back camera
FPC connector
Headphone
jack
RF IC VC7584
(U3101)
SIM card slot
(CN6)
Front camera
FPC connector
CTP FPC
connector
Main FPC
connector
RF cable
connector
RF PA SKY77761
(U3201)
Flash driver IC
(U4401)
LED driver IC
(U4311)
GPS LNA IC
(U5001)
PS&ALS&LED
Sensor (U2001)
Side key FPC
springs
