Instruction and maintenance manual
ENGLISH

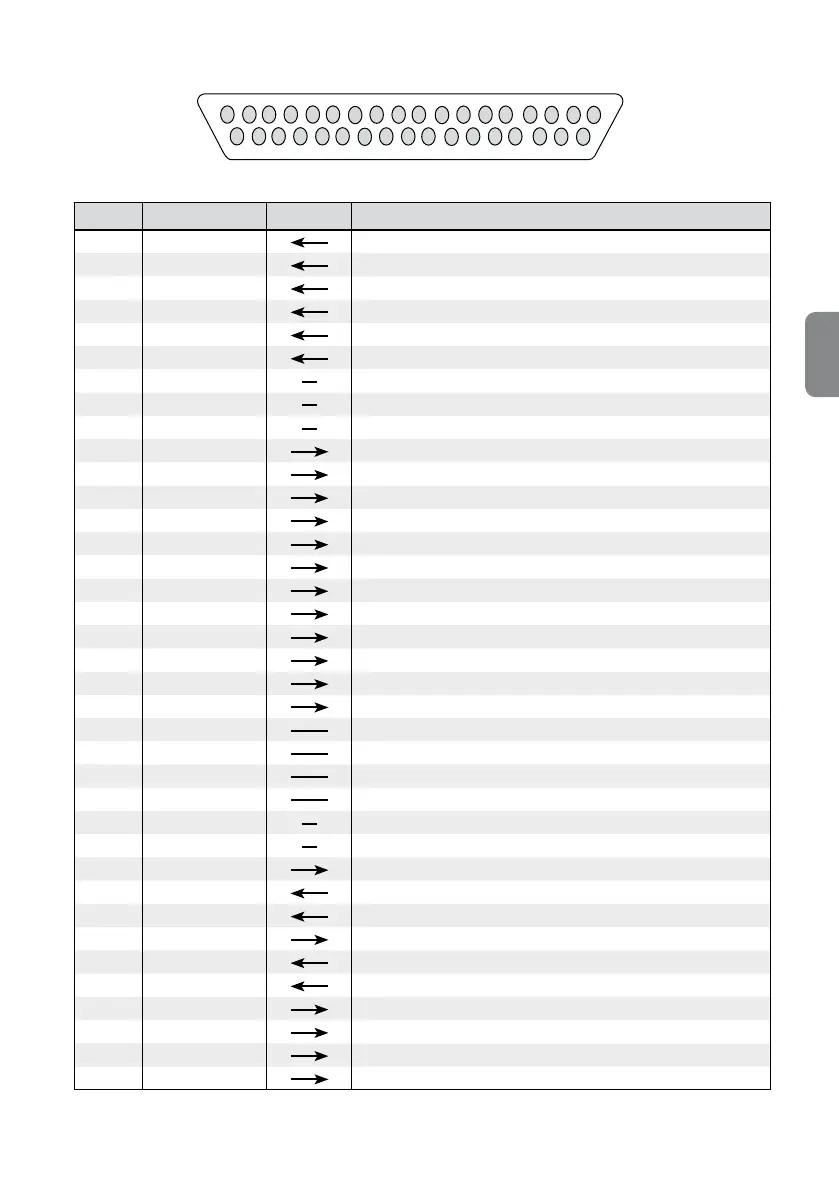

19 1
37 20
Pin Name Direction Description
1 SW Mag
Magnetization button
2 SW Demag
Demagnetization button
3 SW Level +
Button that increases the magnetization level
4 SW Level -
Button that decreases the magnetization level
5 Abilit PLC
Enabling input for PLC management
6 Input Enable
Input-Enable input
7 nc
Not connected
8 nc
Not connected
9 nc
Not connected
10 Level 1
1st level magnetization output
11 Level 2
2nd level magnetization output
12 Level 3
3rd level magnetization output
12 Level 4
4th level magnetization output
14 Level 5
5th level magnetization output
15 Level 6
6th level magnetization output
16 Level 7
7th level magnetization output
17 Level 8
8th level magnetization output
18 COM
Normally open common contact Out-Abilit
19 NO2
Normally open contact Out-Abilit
20 Wait
Output, cycle in progress
21 Alarm
Alarm output
22 Ld3
Not used
23 Ld5
Not used
24 Out2
Not used
25 Out1
Not used
26 nc
Not connected
27 nc
Not connected
28 Vext
Common contact for buttons Mag, Demag, Level+, Level-
29 Vext
Insulated 24Vdc (power supply provided by customer)
30 Vext
Insulated 24Vdc (power supply provided by customer)
31 Rif
Common contact for output statuses
32 Rif
Insulated 0V (reference to customer power supply)
33 Rif
Insulated 0V (reference to customer power supply)
34 Mag
Magnetization status output
35 Demag
Demagnetization status output
36 COM
Normally open common contact Out-Abilit
37 NO2
Normally open contact Out-Abilit
