TECNOMAGNETE ST100F - Installation of miller ST200

50
Instruction and maintenance manual
ENGLISH

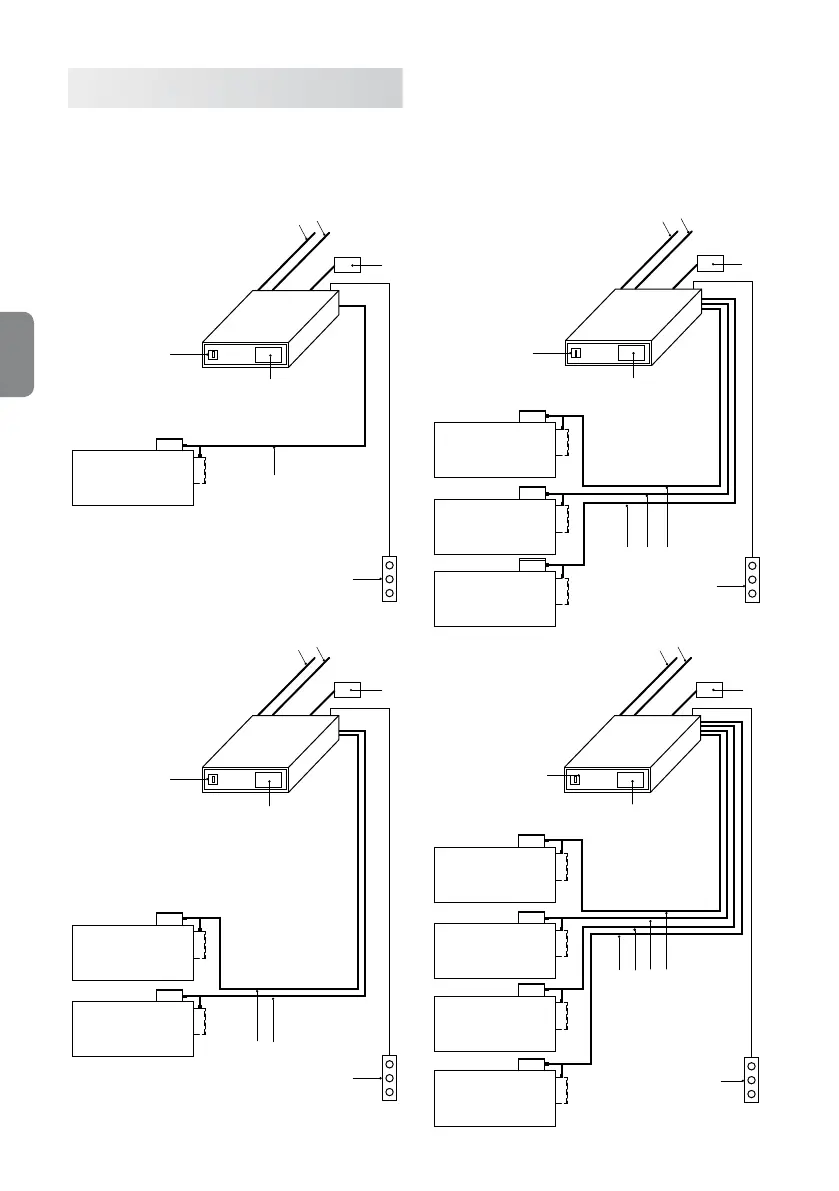

8.4 Installation of grinder ST200
 Power supply
 Push-button panel
 CH ENABLE push-button panel (optional)
 Enabling
 Discharge
 Discharge
G Discharge
 Discharge
 PLC interface
 ON/OFF
Controller
ST200
Controller
ST200
Controller
ST200
Controller
ST200




























 
Installation of Installation of
1 chuck 3 chucks
Magnetic chucks
Magnetic chuck
Installation of Installation of
2 chucks 4 chucks
Magnetic chucks
Magnetic chucks
